5mohm WSN3920 Beam Welding Shunt SMD Resistor

3 week ago

1 0 

4 month

Product details

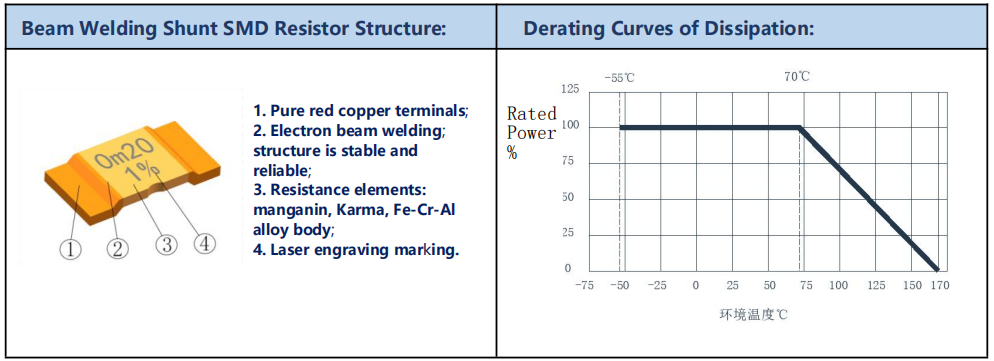

Beam Welding Shunt SMD Resistor

Beam-welded shunt SMD resistors are designed for current sensing applications. They feature SMD mounting, high power rating, and excellent stability. These resistors have passed the AEC-Q200 automotive-grade reliability test.

Product Features:

Electron beam welding process and pure copper electrodes make it an ideal solution for current sensing applications.
Excellent product consistency, high reliability, superior stability, and strong pulse resistance.
Special welding process, all-metal structure, and surface pickling passivation treatment ensure strong weather resistance.
Extremely low thermoelectric potential.
Ultra-low parasitic inductance and fast response speed, suitable for high-frequency AC current detection.
Compliant with RoHS and other environmental requirements.
Customization of special specifications is available.

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
