Product details

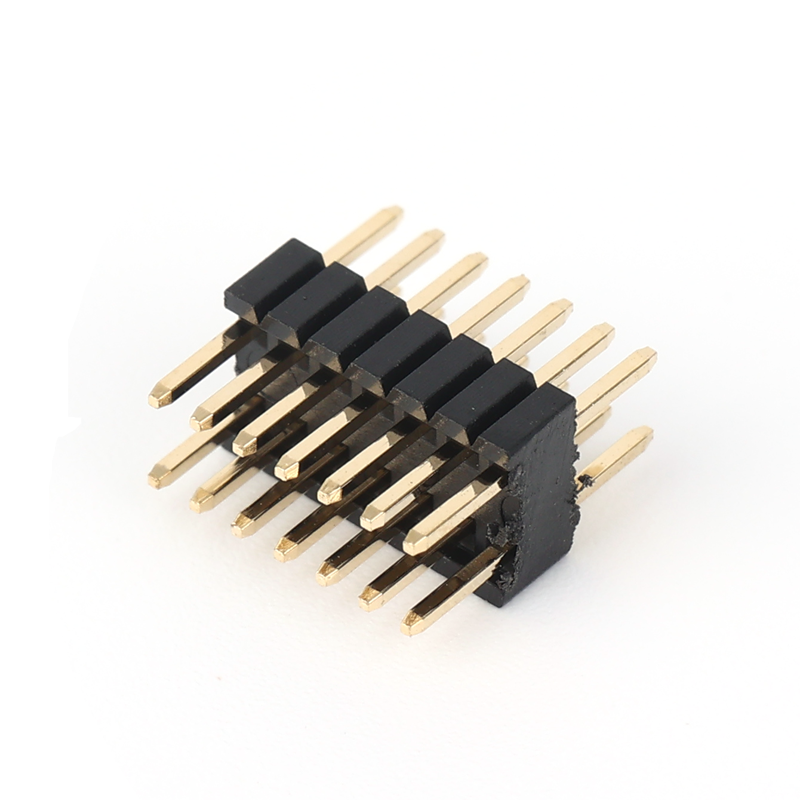

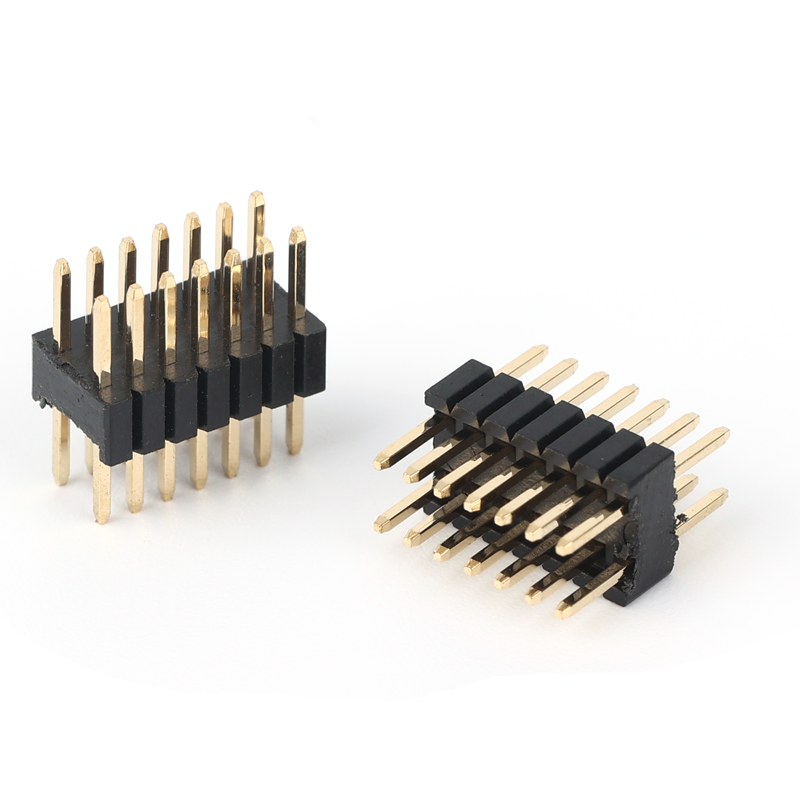

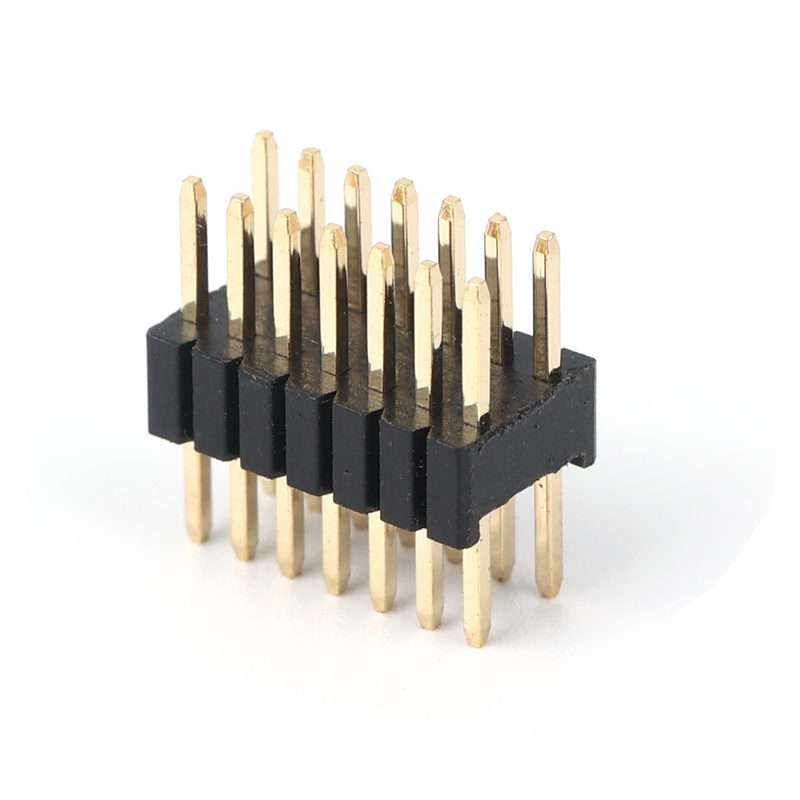

The 1.27mm x 2.54mm Dual Row Pin Header combines the high-density signal capacity of 1.27 mm pitch with the structural compatibility of 2.54 mm rows. This unique configuration is perfect for hybrid PCB layouts where spacing and mechanical reinforcement both matter.

Featuring a dual row 180° straight layout, this pin header connector supports vertical interconnects with enhanced current handling and robust mating characteristics. It’s ideal for customized PCBs used in automotive electronics, programmable logic controllers, and smart devices.

This 1.27 pin header uses precision-machined copper alloy terminals and flame-retardant LCP insulation, allowing it to withstand soldering temperatures up to 260°C. It supports SMT and through-hole soldering, as well as J-type and U-type customization.

Certified to IATF16949, ISO9001, and RoHS, and capable of handling up to 100 pins, it stands as a flexible connector pin header solution for hybrid PCB designs requiring mechanical compatibility with legacy 2.54mm pitch systems.

Item	Description
Application	Primarily used for internal device connections, not for external connectivity. Suitable for electronic products, industrial computers, communication systems, aftermarket components, etc.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Number of Plastic Rows	Single row, Dual row
Rated Current	1A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating Nickel underlayer: ≥50μ"
Number of Contacts	6–100 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging in plastic trays + cartons, customizable upon request
Service Type	ODM and OEM services available, color customization supported
