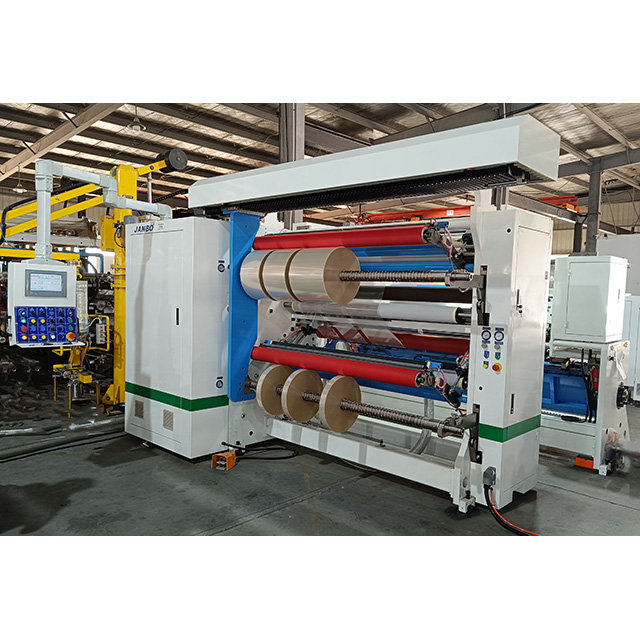

Label type slitting machine

This advanced winding and cutting machine is designed for precision, efficiency, and durability in industrial environments. With a maximum winding diameter of 800mm, 1200mm, or 1500mm, it offers flexibility for various material types and thicknesses. The inner diameter of the coiling tube core ranges from 3 to 6 inches, making it suitable for a wide range of applications. The mechanical manufacturing width spans between 1 meter and 1.8 meters, allowing for versatile operation and integration with other equipment. The machine can handle a maximum feeding diameter of 800mm, while the minimum cutting width is as small as 50mm, ensuring precise results even with narrow materials. Its mechanical maximum speed reaches up to 300 meters per minute, delivering high productivity without compromising quality.



Specifications:
Maximum winding diameter: 800mm/1200mm/1500mm
Inner diameter of coiling tube core: 3-6 "
Mechanical manufacturing width: 1M-1.8M
Maximum feeding diameter: 800mm
Minimum cutting width: 50mm
Mechanical maximum speed: 300M/Min

characteristic
1. Power part of winding: Two winding motors are used in conjunction with the main motor for three motor linkage control. The main motor controls the tension of the feeding and winding motors, ensuring stable tension and beautiful appearance of the finished product.
2. Winding mechanism: The winding shaft adopts a slip system, which can automatically adjust the winding tension during winding, and has better effect on dealing with uneven thickness of materials.
3. Motor control part: The operation interface adopts an LCD touch screen, which can directly set the name type winding conditions and operation status on the screen. The control part adopts a programmable controller for mechanical action control, equipped with a self detection system, which can diagnose the cause of machine failure by itself.
4. Pedestrian bridge type material feeding:
The material adopts a bridge type feeding method before passing through the knife, which is easy to operate and can prevent static electricity on the material from adsorbing dust on the ground.
5. Auxiliary pressure wheel device: The material is equipped with a pneumatic pressure wheel mechanism before feeding, which can press the material and prevent waste of tail material, reducing material loss.
6. Basic feeding form: Separated feeding machine base, with a large feeding diameter, provides more space for installing other devices.
7. Raw material auxiliary feeding: using hydraulic power, suitable for workshops without cranes, can save manpower and shorten loading and unloading time



Accessory
1. Sound reducing cover for the feeding department: reduces the noise generated when materials are rolled out and can improve the quality and safety of the working environment (applicable to tape).
2. Ear material processing device: It can be equipped with an independent or integrated cable winding machine to roll up waste materials, and there is also a powerful windmill that can be used for non sticky materials.
3. Automatic alignment device: suitable for cutting after printing, can accurately align with the printing reference line for cutting.
4. Automatic knife cutting mechanism: The same suit motor controls the automatic knife cutting mechanism, which is convenient, simple, time-saving, and reduces the possibility of harm to the human body
5. Automatic material pushing mechanism: motor screw type automatic material pushing mechanism, auxiliary material pushing, saving manpower.
6. Infrared paper tube: Infrared paper tube device saves time, and the combination of paper tube and material end face is more perfect.
7. Auxiliary packaging mechanism: The unloading arm can be equipped with a motor to package materials, saving manpower and time
8. Contact type dust sticking mechanism: a dust sticking wheel type dust sticking mechanism can be installed to reduce the pollution of dust on materials after passing through the knife.
9. Online inspection agency: Defect inspection agencies can be installed according to customer requirements.
