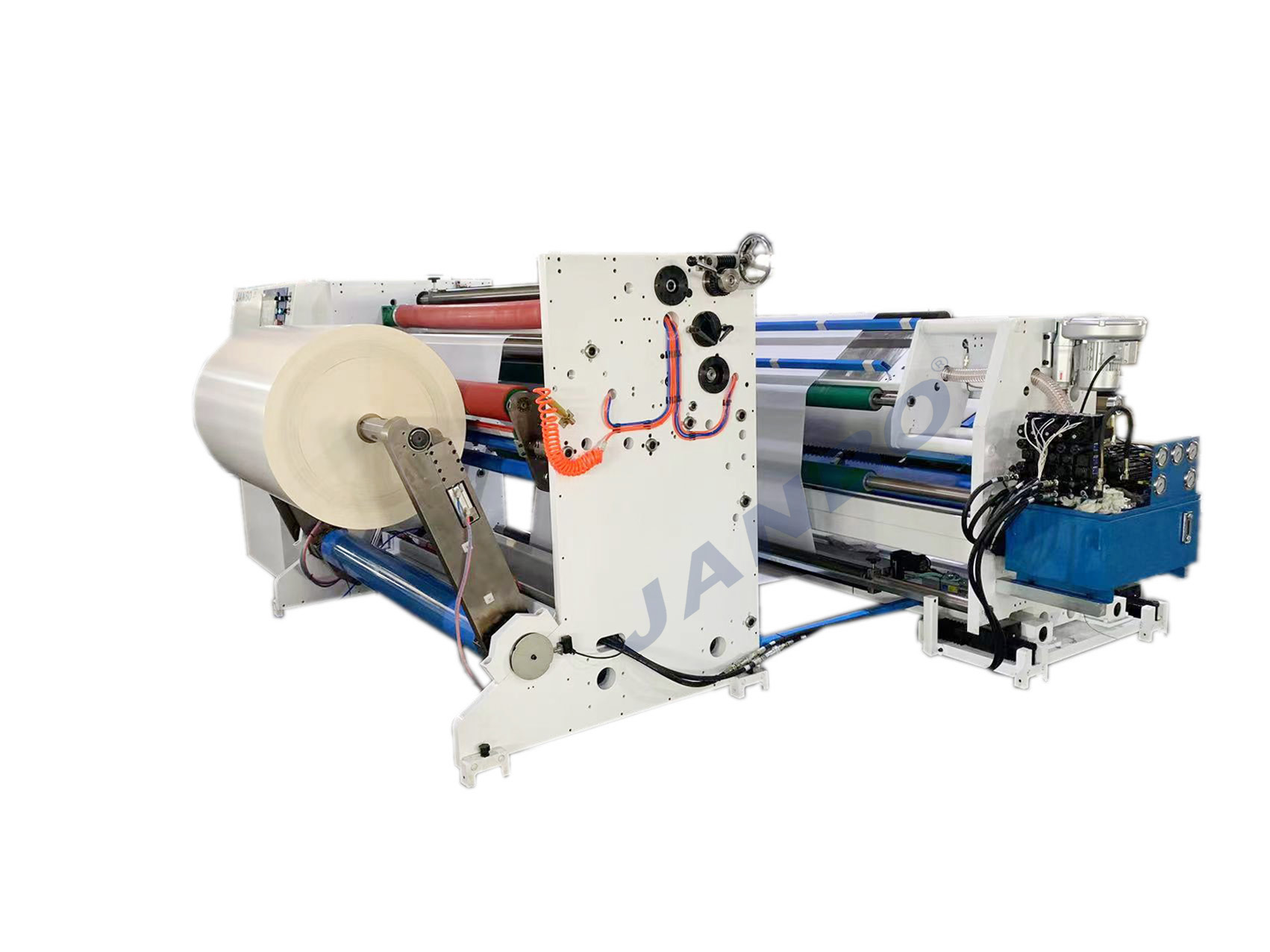

Slitting and rewinding machine for sale

Suitable for large-scale slitting and rewinding of films and various types of paper

Specifications:
Z Large winding diameter: 600mm
Core diameter: 1.5 "-3"
Manufacturing width: 1.3M-1.6M
Z Large feeding diameter: 800mm
Z small slitting width: special for rewinding
Mechanical Z High speed: 120M/Min
Introduction of equipment:
Main transmission part: AC motor with inverter as the material to transmit power, acceleration and deceleration stable and fast. The tension inverter is used to control the AC motor conveying tension, and the torque is fully automatic rebound control when the winding tension changes in diameter.

Part of the winding machine: the winding method is the center and the surface, and the application can be freely selected when rewinding different materials. The winding gas pressure shaft is automatically inflated and deflated, and the winding is automatically changed after the winding is completed.

Motor control part: The operation interface adopts the LCD touch screen, which can directly set various winding conditions and operating conditions on the screen. The control part uses a programmable controller for mechanical action control, and has a self-testing system. When the machine fails, it can diagnose the fault cause by itself.

Precision Slitting Machine & Cutting Machine Solutions – High-Speed Rewinding Machine & Sealing Tape Small Rewinder for Perfect Finishes!"

Basic discharge form: connected discharge stand, easy to operate, small footprint. Optional equipment:
Auxiliary feeding of raw materials: The use of hydraulic power, suitable for the workshop without driving, can save manpower and shorten the loading and unloading time.
Automatic labeling device: After reaching the set length, automatic deceleration labeling, speed up the production speed, the length can be freely set (the rubber face can be equipped with the model).
