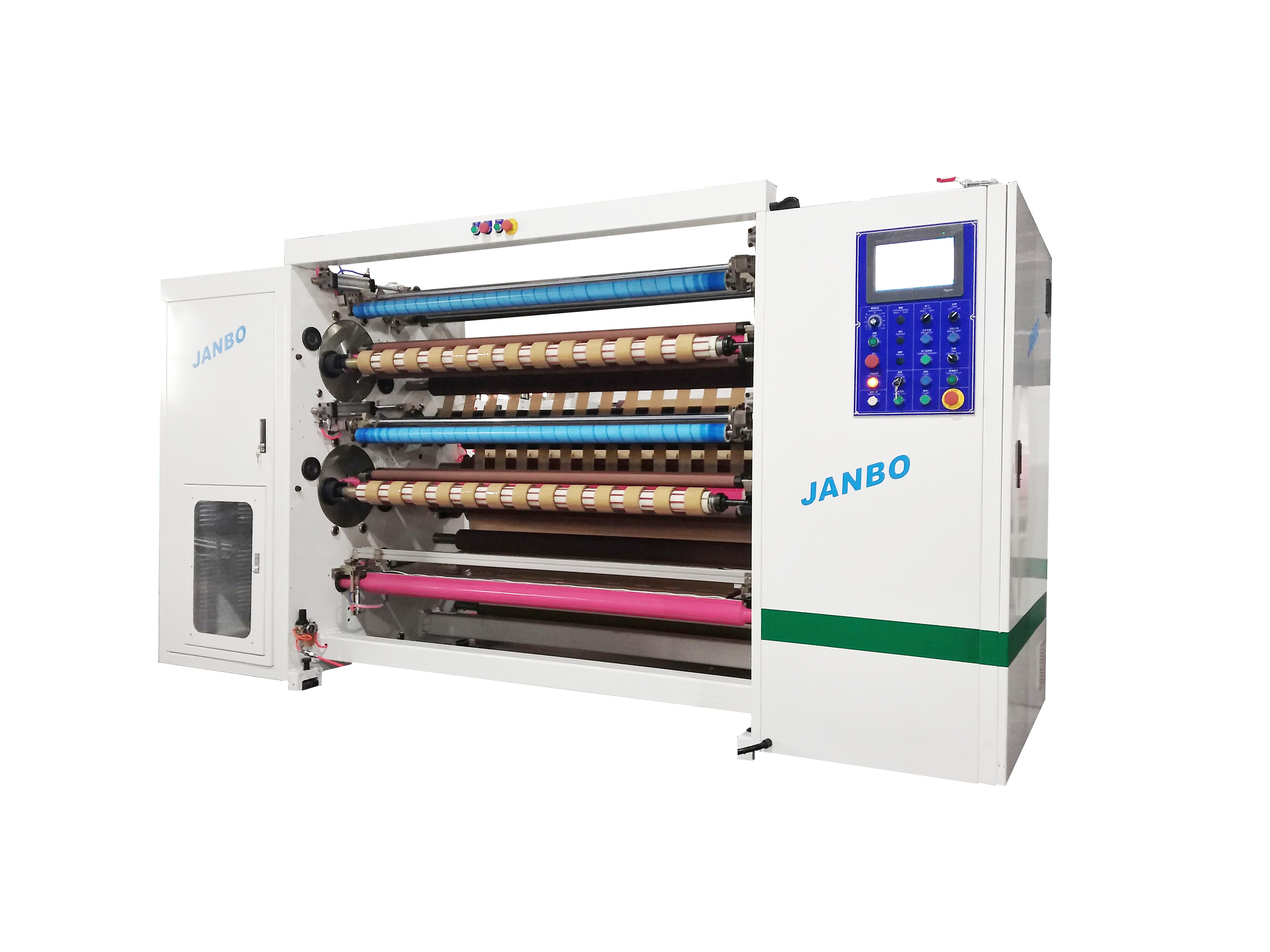

Tape slitting machine
3 month ago
OPP, Cutting materials such as stationery, textured paper, and adhesive tape.
Specifications:
Maximum winding diameter: 180mm
Inner diameter of coiling tube core: 1 "-3"
Mechanical manufacturing width: 1M-1.6M
Maximum feeding diameter: 800mm
Minimum cutting width: 20mm
Mechanical maximum speed: 250M/Min
Introduction to Equipment Features:
1. The feeding and coiling are combined, occupying a small space and easy to operate.
2. The material is rolled out with a surface pressure wheel device, which can make the rolled out material smoother and smoother,
3. The slitting tool adopts an industrial flat knife, suitable for slitting thin film adhesive tape.
4. The power adopts a motor combined with a two-stage length meter, ensuring stable and accurate shutdown,
5. The winding tension is controlled by a magnetic powder clutch (butterfly spring in the ordinary version), combined with individual sliding winding. When the material thickness is not good, it can be automatically adjusted, and the tension of all finished products is average.
6. In production, a paper tube loading and unloading machine can be used to simultaneously unload finished products and load paper tubes, achieving consistent operation.
7. During machine production, two shafts work while the other two shafts do not rotate together, which facilitates loading and unloading and saves time.
8. The waste material is coiled using surface cable winding, reducing the number of material changes and saving time
Introduction to purchasing equipment:
1. Paper tube loading and unloading aluminum mold: Additional equipment must be purchased when producing different widths, and the size can be specified for production according to demand
2. Hydraulic feeding machine: can quickly feed and save manpower.
3. Automatic labeling device: This device automatically labels the tail paper during operation, achieving the maximum production capacity of the machine.
4. Rolling out the fire sound hood: It can reduce noise when the material is rolled out to achieve an ideal environment,
5. Air knife slitting device: Installing this function can enhance the use of paper or cloth tape.
6. Bin mixing device: Installing this function can save the trouble of manual paper discharge tube,
7. Separate feeding: suitable for larger diameter masterbatch, and can also be equipped with other functions such as electric star
8. Material picking robotic arm mechanism: Choosing this structure can make the machine a fully automatic slitting machine, without manual material picking, with a higher degree of automation.
