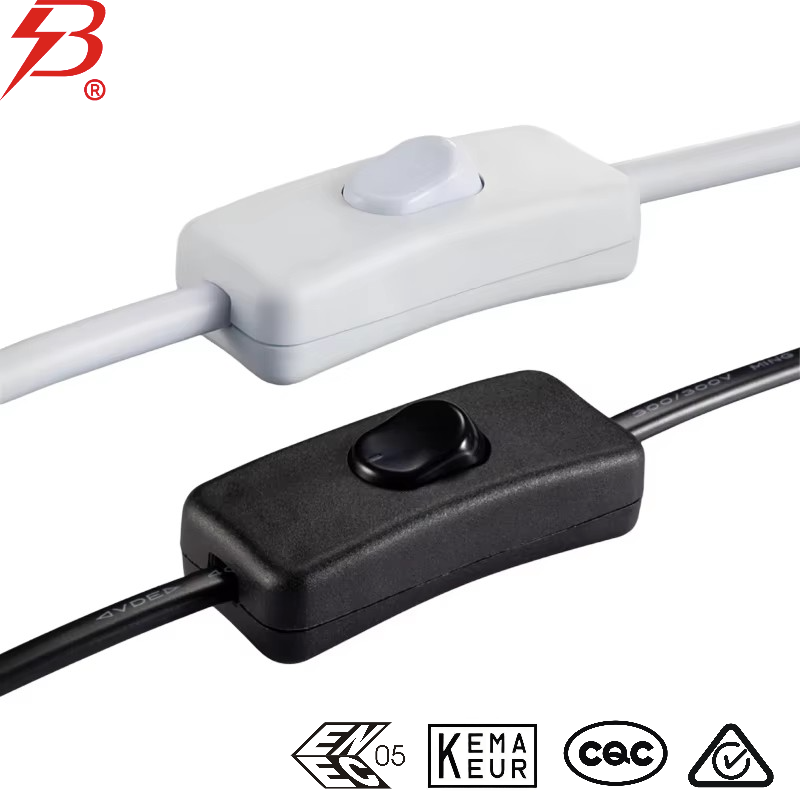

Inline Cord Switch, On Off Button Control Lamp Appliance Switch for Bedroom Table Lamp Desk LED Lights,White Black
4 month ago

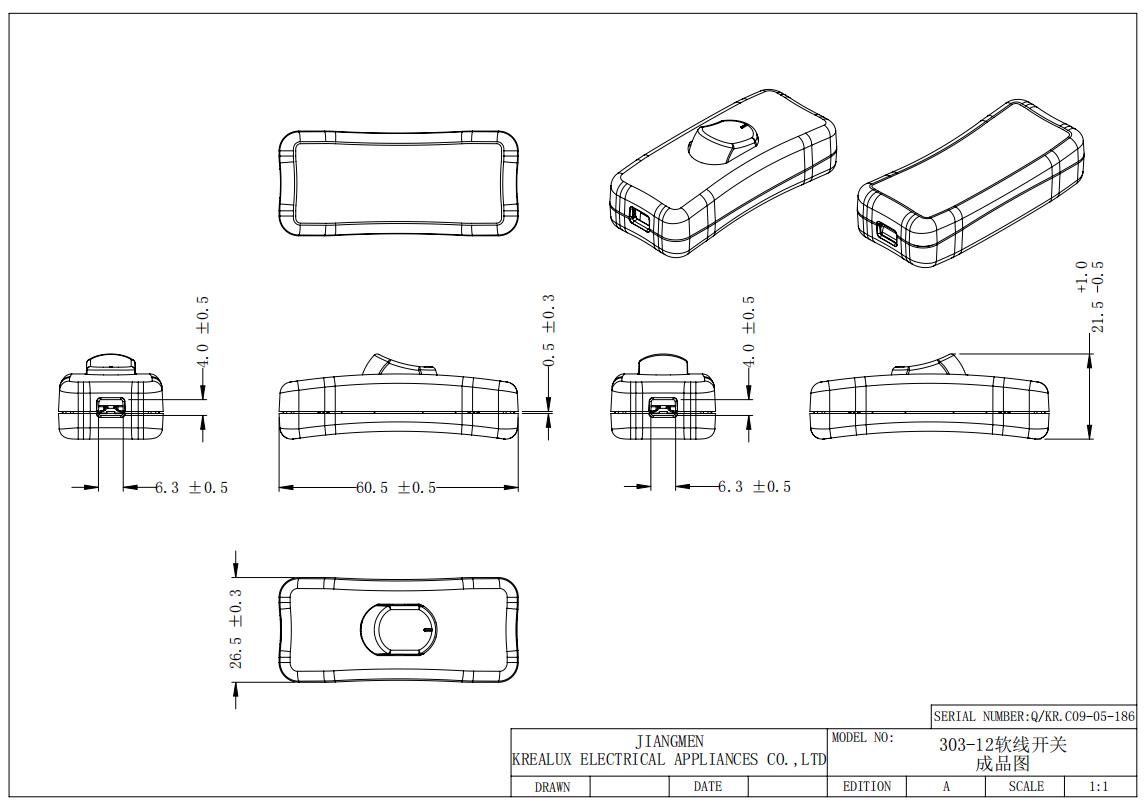

| Item No. | 303-12 | ||
| Electrical Data | |||
| IEC/EN | |||
| Rated Voltage (V) | 250V (AC) | ||
| Rated Current (A) | 2ⓧ2A | ||
| Ambient Temperature | Polypropylene | T55 | |
| Polycarbonate | T55 | ||
| Connection Data | |||
| IEC/EN | |||
| Cross Section | Flexible cable |
 H03VVH2-F 2x0.75mm²
H05VVH2-F 2x0.75mm²
 |
|
| Means of connection | clamped | ||
| Number of terminals | Unipolar | ||
| Protection Degree | |||
| IP30 | |||
| Materials | |||
| Insulation Materials | Designation | Polypropylene, Polycarbonate | |
| Flammability class | UL 94V-2 | ||
| Clamping Unit | Brass | ||
| Packing Quantity (pcs/carton) | |||
| 500 | |||
