WSMP2512(R0.5~R50) E-beam Welding AlloyResistor

3 week ago

1 0 

4 month

Product details

High-power Beam Welded Metal Alloy SMD Resistor

High-power beam welding alloy resistors, used for current detection, surface mount packaging, with extremely low resistance values

With excellent stability, passing AEC-Q200 automotive-grade reliability tests.

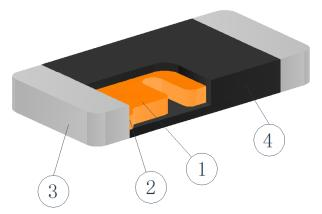

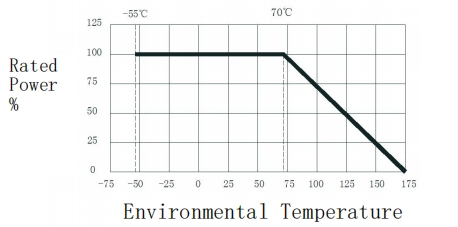

Beam Welding Alloy Resistance Structure and Derating Curves of Dissipation:

1. Resistance material: Low TCR < 20ppm resistance body(Manganin, FeCrAl, Kamala Alloy)

2. Electron beam welding structure.

3. Nickel and tin plating on the surface of copper terminals.

4. High-temperature resistant, flame-retardant insulating resin.

Product features:

* Electronic beam welding alloy resistance, pure copper electrodes, are an ideal solution for current detection applications.

* Good product consistency, high reliability, stability, and strong pulse resistance.

* Special welding process, all-metal structure, resistant to high-temperature resin molding encapsulation, and strong weather resistance.

* Extremely low thermoelectric potential.

* Ultra-low parasitic inductance, fast response speed, suitable for the detection of high-frequency alternating current.

* Passed AEC-Q200 automotive-level reliability testing.

* Complies with environmental protection requirements such as RoHS.

* Supports special specification customization.

*Current Sense Resistor Solutions Provider

Specializing in resistance shunt product, including plastic-encapsulated resistors, bare chip e-beam welding alloy resistor, and composite alloy resistors; automotive-grade shunt resistor, high-power U-type shunts, and CUSTOMIZED shunts. These products find applications across diverse market sectors such as power supplies, BMS (Battery Management Systems), automotive electronics, smart home appliances, smart industrial equipment, power tools, inverters, and battery cell testing equipment.
