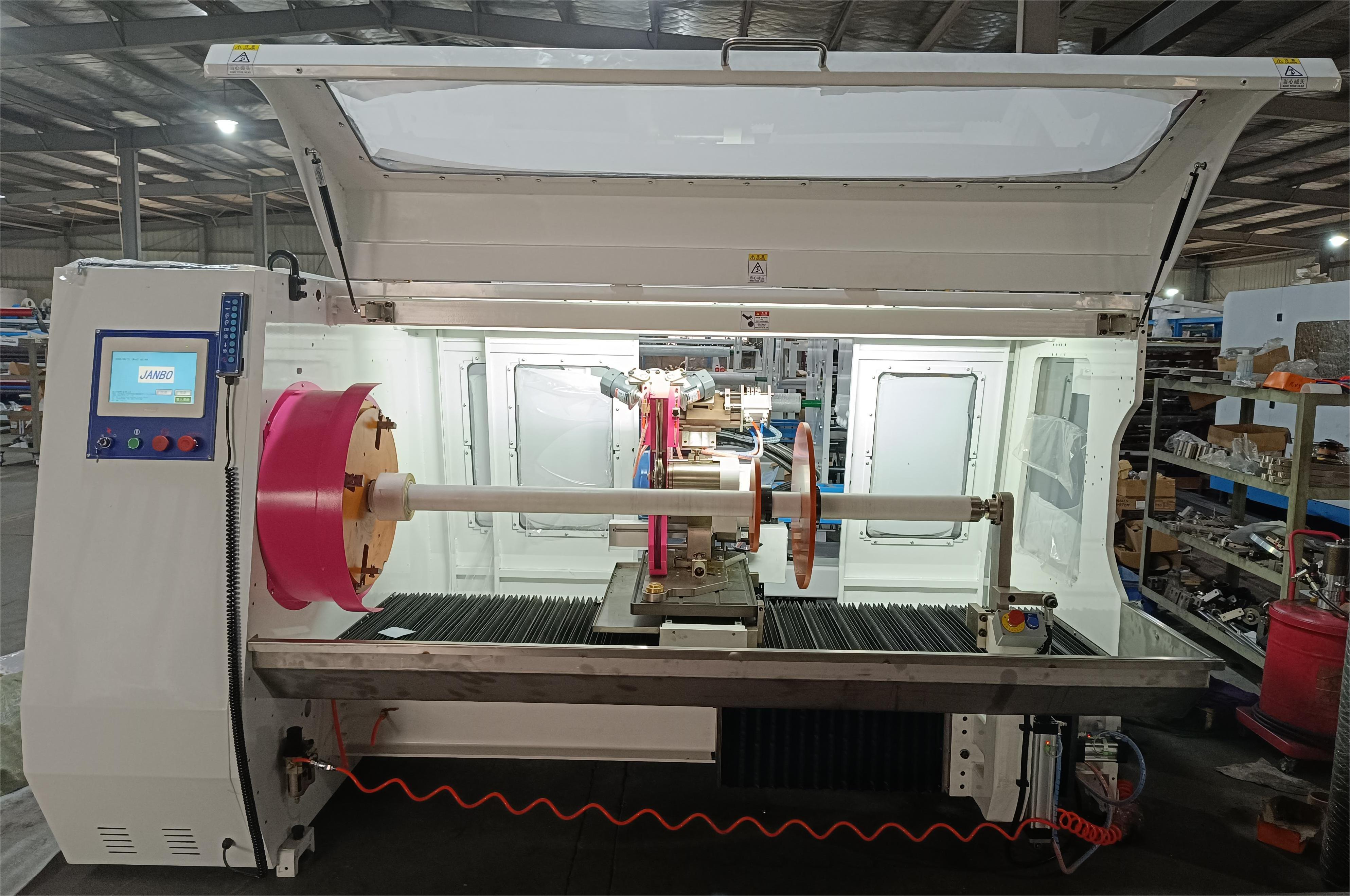

C5 Cutting-2

This machine is used for cutting all kinds of adhesive tape rolls, especially suitable for cutting electronic materials.Such as: Adhesive Tape, BOPP Packing Tape, PET tape, PE protective film,foam tape, double-sided tape,conductive cloth tape,copper foil tape,non-substrate tape, 3M special tape, electricity insulated tape, floor tape, warning tape, masking tape, kraft paper tape, medical tape, printing packing tape, etc

Features:

1.     Three high-precision servo control systems: Servo feed system, servo dimensional control, servo automatic angle rotation

2.      Main shaft & circular blade drive powered by three-phase motor with stepless variable frequency speed regulation and vector high-torque output.

3.     Janpan Mitsubishi PLC control system with automatic fault detection.

4.     10" color touchscreen LCD display supporting 20 preset dimensional auto-switching modes.

5.     Taiwan PMI high-precision linear ball guide rails & ball screws.

6.     3" Internal expansion cutting shaft  (optional 1"/1.5"/2" cutting shaft).

7.     New heavy-duty tail stock with pneumatic-controlled support, enhanced reliability/stability for heavier loads; Dual-cylinder high-thrust chuck ensures firmer clamping.

8.     Full-coverage integrated lift-up safety hood (optional fully enclosed guard).

9.     Integrated bilateral automatic blade sharpening device.

10.   C5 single shaft large cutting machine:single shaft & single knife design ensures stability, precision and compactness for high-accuracy processing of special jumbo log roll materials.

Ergonomic control panel design for improved operability.

Main Technical Parameters
