High Toughness CNC Nylon 6 Polyamide Part

PA6 CNC-machined parts are functional components formed by precision machining PA6 rods, sheets, or injection-molded blanks using computer numerical control (CNC) machine tools (such as lathes, milling machines, and machining centers). They are widely used in machinery manufacturing, electronics, the automotive industry, and consumer applications. Their core advantages lie in their high toughness, wear resistance, ease of machining, and low cost. However, they also have limitations such as high water absorption (affecting dimensional stability), limited heat resistance (long-term operating temperature <80°C), and low-temperature brittleness (prone to cracking below -5°C). These limitations require modification or process optimization.

Core Advantages of PA6 CNC Machined Parts

Balanced Toughness and Wear Resistance: The "Durable Choice" for Mechanical Components

PA6 machined parts' high toughness (impact resistance > 5kJ/m²) and excellent wear resistance (wear loss < 0.3cm³/1.61km) make them an ideal choice for applications requiring resistance to friction, vibration, or minor impact. For example:

Mechanical Transmission Components: Gears (module ≤ 3), pulleys, and chain guides (PA6 injection molded/turned parts). Their self-lubricating properties reduce lubrication requirements (lowering maintenance costs) and offer a long fatigue life (> 10,000 hours of continuous operation).

Equipment Brackets and Housings: Machine tool protective covers and automated equipment supports (PA6 milled parts) withstand daily impact (no cracking) and are lightweight (density 1.13-1.15g/cm³, 60%-70% lighter than metal).

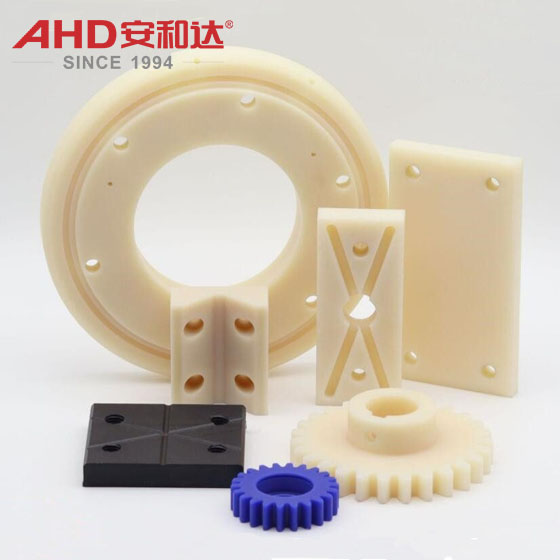

pa6 nylon parts

Easy Processing and Low Cost: The "Core of Efficiency" for Mass Manufacturing

PA6's high processing fluidity (MFR 2-30g/10min) and low raw material costs (only 60%-70% of PA66 and 50%-60% of POM) significantly improve CNC machining efficiency. For example:

Complex Structural Part Production: PA6 parts with threaded holes, snap-fits, or custom-shaped contours (such as sensor housings and connector brackets) can be turned and milled in a single setup (reducing assembly steps), resulting in a unit cost 50%-60% lower than metal (such as aluminum alloy die-castings);

Fast Prototyping: Small-batch customization (such as test pieces in the R&D phase) offers fast processing cycles, making it suitable for iterative optimization needs;

Self-Lubricating and Maintenance-Free: Thoughtful Design for Industrial and Civil Applications

PA6's low coefficient of friction (0.15-0.3) and self-lubricating properties enable stable operation in oil-free environments, making it particularly suitable for food, medical, and high-dust environments (avoiding lubricant contamination). For example:

Food processing equipment: Conveyor belt rollers and agitator shaft sleeves (food-grade PA6, FDA-compliant), grease-resistant and requiring no regular lubrication (meeting hygiene standards);

Household tools: Pulleys (such as curtain rails and clothes drying racks), wear-resistant gaskets (PA6 turning parts), low friction (improving smooth operation) and wear-resistant (preserving deformation over time).

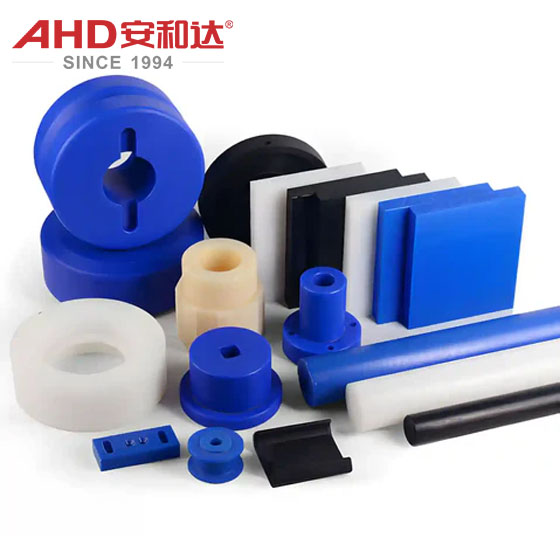

pa6 parts

Common Issues and Precautions

Dimensional Instability Caused by Hygroscopicity

When PA6 absorbs water, it expands (linear expansion increases by 0.2%-0.5%), decreases its heat deflection temperature (from 60°C to 40°C), and loses strength (tensile strength decreases by 10%-20%). Solutions:

Dry thoroughly before processing: It is recommended to dry at 80-100°C for 4-8 hours (or use a dehumidifier with a dew point below -20°C) to reduce the moisture content to <0.1%.

Post-processing humidity conditioning: To improve toughness (e.g., for long-term use in a humid environment), soak the PA6 part in hot water at 80-90°C for 2-4 hours (to balance the moisture absorption to 1.5%-2%). This will slightly reduce dimensional accuracy.

Low-Temperature Brittleness

PA6's impact strength decreases significantly (potentially leading to brittle cracking) at temperatures below -5°C. For applications in cold regions, consider toughened and modified PA6 (with POE or EPDM elastomers, achieving a -40°C impact strength >10kJ/m²).

Heat Resistance Limitations

The long-term operating temperature should not exceed 80°C (short-term 100°C). For high-temperature applications (such as near engines or steam pipes), consider high-temperature modified PA6 (e.g., by adding glass fiber or mineral fillers to increase the HDT to 100-120°C) or alternative materials (such as PA66 or PBT).

Surface Treatment and Bonding

PA6 has a low surface energy (approximately 40-45 mN/m), resulting in poor adhesion to inks and adhesives. It requires flame treatment (instantaneous high-temperature oxidation) or corona treatment to improve the surface energy to above 50 mN/m.

If bonding is required (e.g., assembling plastic parts), epoxy resin or nylon-specific adhesive (such as Loctite 401) is recommended.

Process Optimization

Cutting Parameters: When turning, maintain a feed rate of 0.05-0.1 mm/min and a cutting speed of 100-200 m/min (avoid overheating and softening of the material at high speeds). When drilling, pre-drill pilot holes to prevent cracking.

Tool Selection: Prefer carbide tools (such as YG8) or coated tools (such as TiN coating) to reduce wear and improve surface finish.
