Rewinding Machine-611

3 month ago
4 0
Product details

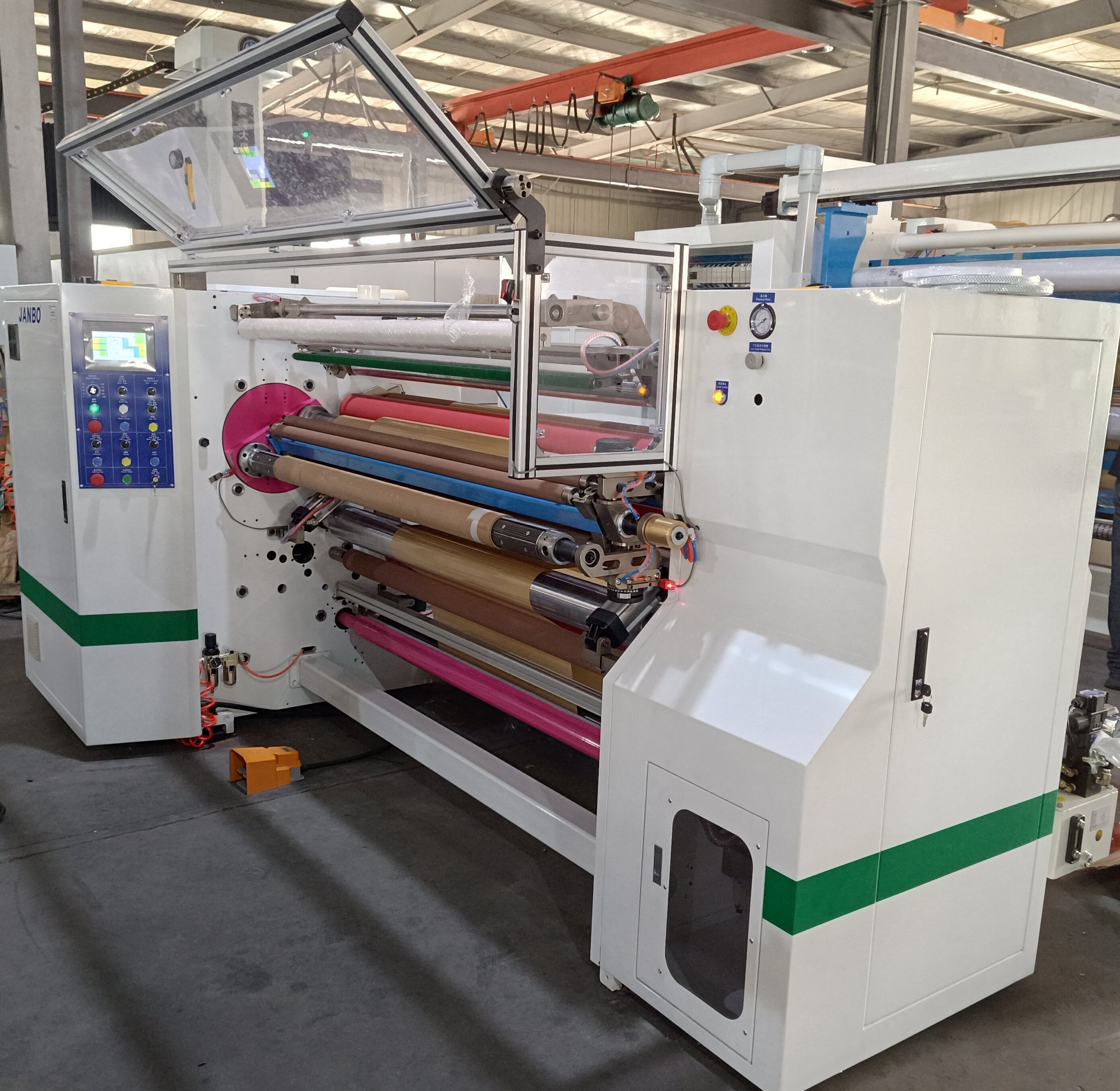

Turret-style Dual-axis Automatic Exchange Rewinding Machine‌

Designed for rewinding PET, PP, and other adhesive materials.

Features:‌
. Central control system with ‌Mitsubishi PLC (Japan)‌ and ‌LED touchscreen‌ for tension, length, and customized parameter input.
.‌ Two-stage length setting‌ ensures precise rewinding. Upon reaching the preset length, ‌servo motor-controlled automatic dual-axis exchange‌ is activated.
. Finished roll rewinding method: ‌Single air-expanding shaft center rewinding‌ with ‌industrial edge-trimming blades‌ on both sides; waste material is separately rewound.
.‌ Cylinder-controlled pressing roller‌ with ‌adjustable pressure‌ stabilizes semi-finished products for smooth rewinding.
. Equipped with ‌non-stop automatic labeling mechanism‌ and ‌pneumatic automatic cutting function‌.
.‌ Automatic paper-end smoothing device‌ eliminates wrinkles or bubbles post-rewinding, ensuring smooth finished rolls.
.‌ Pneumatic automatic core loading‌ and ‌automatic ejection mechanism‌ ensure core stability, easy loading/unloading, and enhanced efficiency.
.‌ Auxiliary hydraulic lifting arm feeding system‌ simplifies and eases raw material loading operations.
.‌ Shaft separate type moving base.



Main Technical Parameters

Effective width

1.3m / 1.6m

Max. unwind diameter

1000 mm

Max. Rewind diameter

170mm

Max. Working speed

200M/Min

I.D. of paper core

3"

Power Source

380V / 50HZ / 3PHASE

Air pressure

6 Bar



Used for rewinding of various paper, film, tape and other materials.

The Tape Rewinding Machine is a specialized piece of equipment designed to efficiently rewind and repackage various types of tapes, including adhesive tapes, electrical tapes, and industrial tapes. This machine is ideal for businesses that require consistent and high-quality tape rewinding operations, ensuring precision and reliability in every process. With its advanced engineering and user-friendly design, the Tape Rewinding Machine offers an optimal solution for both small-scale and large-scale production environments.

One of the key features of this Tape Rewinding Machine is its ability to handle different tape widths and thicknesses, making it a versatile tool for a wide range of applications. The machine is equipped with adjustable tension controls, allowing users to customize the rewinding process according to specific requirements. This ensures that the final product maintains its integrity and performance, regardless of the type of tape being processed.

611
