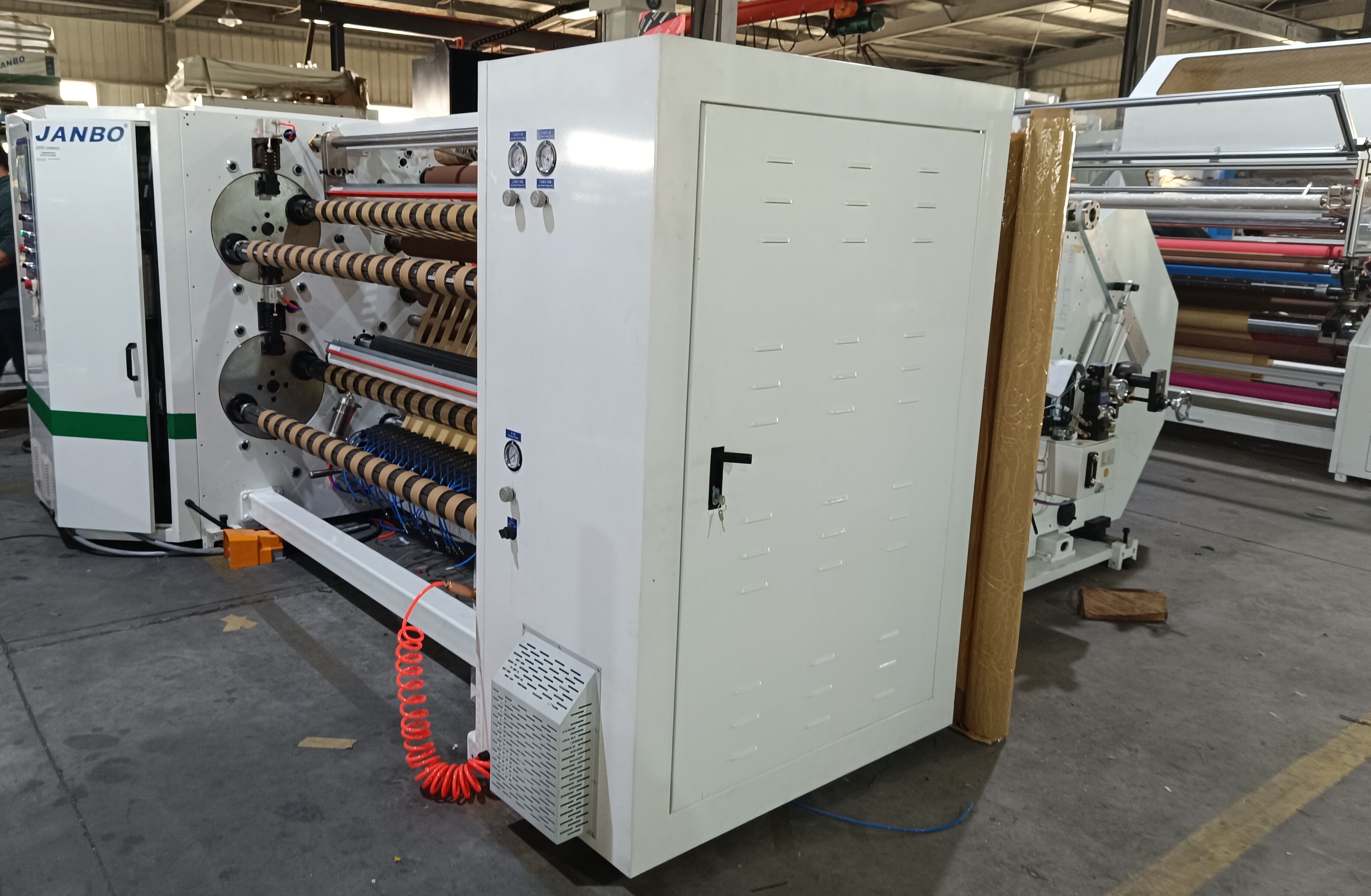

Tape Slitting Machine-12

Function: Cutting and rewinding various tapes, films, and other flexible materials.
Specifications:
Maximum winding diameter: 600mm
Inner diameter of coiling tube core: 3“
Mechanical manufacturing width: 0.7M-1.8M
Maximum feeding diameter: 1000mm
Minimum cutting width: 30mm
Mechanical maximum speed: 300M/Min

Characteristic:
The host system adopts three motor linkage control, with high speed, stable tension, and beautiful appearance of the finished product.
2. Equipped with tension detector device, programmable PLC fully automatic tension control.
3. The winding and pressing wheel system adopts a combination of intermittent displacement and pneumatic auxiliary control mechanism, which can maintain the shortest distance between the pressing wheel and the finished product process, and also press the auxiliary finished product to meet the process requirements of cutting and rewinding various materials.
4. The winding system can quickly exchange the inflation shaft and the slip shaft.
5. Equipped with a fast unloading device for finished products to reduce the workload of operators.
6. The waste collection system can be equipped with left and right displacement surface winding, servo motor control center winding, and fan waste collection.
7. The cutting tool system adopts industrial flat knives, with simple process and convenient lifting.
8. The unwinding system is equipped with EPC/LPC automatic correction device, hydraulic assisted loading and unloading operation mechanism, and material receiving platform device
9. The unwinding system can be optionally equipped with a shaft/shaftless integrated type or a shaft/shaftless separated type

Introducing the Janbo High-Speed Glazing Film Slitting & Rewinding Equipment, a top-of-the-line machine designed for precision cutting and rewinding of adhesive tape rolls. This Slitter Cutter Device is ideal for handling a variety of materials including BOPP, PVC, PET, PE, EVA, OPP, Duct Tape, and Films at high speeds.

The Advanced Equipment BOPP/PVC/PET/PE/EVA/ OPP/Duct Tape /Films High Speed Auto Slitting Cutting Rewinding Machine is equipped with cutting-edge technology to ensure efficient and accurate operation. It can easily convert tape jumbo roll or log roll into small rolls in no time.

With the Advanced Converting Device Cut Slice Rewind Tape Jumbo Roll Log Roll to Small Rolls, you can expect superior performance and reliability. This machine is perfect for various industries that require precise cutting and rewinding of tape products.

Experience the convenience and efficiency of the Janbo High-Speed Glazing Film Slitting & Rewinding Equipment today!
