AHD Phenolic Cotton Rod: Industrial-Grade Insulation Solution

Ⅰ. Product Overview

AHD Phenolic Cotton Rod is a high-performance thermoset composite material, engineered by impregnating high-quality cotton cloth with phenolic resin and undergoing precision molding and heat curing. It excels in electrical insulation, mechanical strength, and heat resistance—making it a core choice for industrial applications requiring reliable dielectric performance and structural stability.

As a flagship product from AHD Polymer (a 31-year leader in engineering plastics), this phenolic cotton rod is produced via ISO-certified processes, supported by 200+ technical specialists. It delivers consistent quality across batches, meeting the strict demands of high-precision industries and serving as a cost-effective alternative to inferior insulation materials.

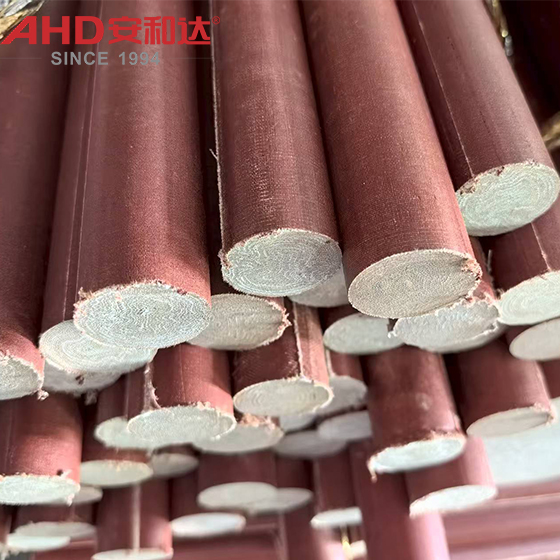

AHD Cotton Phenolic Laminate Rod

Ⅱ.Core Features

The properties of phenolic cotton cloth stem from the synergistic effect of phenolic resin and cotton cloth, primarily including the following:

Excellent Heat Resistance: After curing, phenolic resin forms a three-dimensional cross-linked structure with a high decomposition temperature (typically 150-200°C for long-term use, and over 260°C for short-term use). It resists deformation or decomposition at high temperatures, making it suitable for use in high-temperature environments.

Good Electrical Insulation: Phenolic resin itself is an excellent insulating material (volume resistivity ≥10¹²Ω·cm), and the cotton cloth fibers are tightly bonded to the resin, eliminating any conductive pathways. Therefore, it is suitable for electrical insulation applications.

High Mechanical Strength: The cotton cloth's fiber structure enhances the material's tensile, impact, and flexural properties (tensile strength typically ≥80 MPa, flexural strength ≥100 MPa), surpassing those of pure resin products.

Chemical Resistance: Resistant to acids (such as hydrochloric acid and dilute sulfuric acid), oils (mineral oil and transformer oil), and organic solvents (such as ethanol and acetone), but susceptible to corrosion by strong oxidizing acids (such as concentrated nitric acid).

Dimensional Stability: After curing, it exhibits low shrinkage and is not susceptible to water absorption (water absorption ≤0.5%). It exhibits minimal dimensional change despite temperature and humidity fluctuations, making it suitable for precision components.

Self-extinguishing and flame retardant: Phenolic resin is inherently flame-retardant and produces very low smoke during combustion (meets UL94 V-0 standards), meeting most fire protection requirements without the need for additional flame retardant treatment.

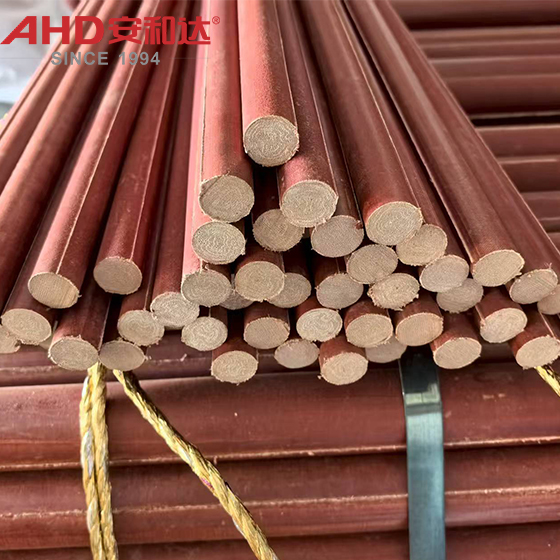

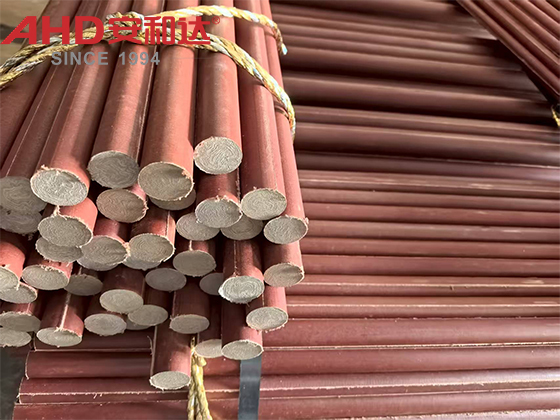

AHD Cotton Phenolic Rod, also call 3723 Cotton Rod.

Ⅲ. Key Advantages

Based on the above characteristics, phenolic cotton cloth rods offer the following advantages in practical applications:

High Durability: Heat-resistant, corrosion-resistant, and age-resistant, they offer a long service life and reduced maintenance costs.

High Safety: Insulating and flame-retardant, they are suitable for safety-critical applications (such as electrical equipment and rail transit).

Flexible Processing: After curing, they have a moderate hardness (approximately 3-4 on the Mohs scale) and can be formed into complex shapes through conventional machining (cutting, drilling, and turning).

Cost Compatibility: The raw materials (cotton cloth and phenolic resin) are relatively inexpensive, and the manufacturing process is mature, resulting in a lower overall cost than high-performance engineering plastics (such as polyimide) or ceramics.

Ⅳ.Processing Methods

The processing of phenolic cotton cloth rods requires selecting the appropriate process based on their post-curing hardness (semi-hard to hard). Common steps include:

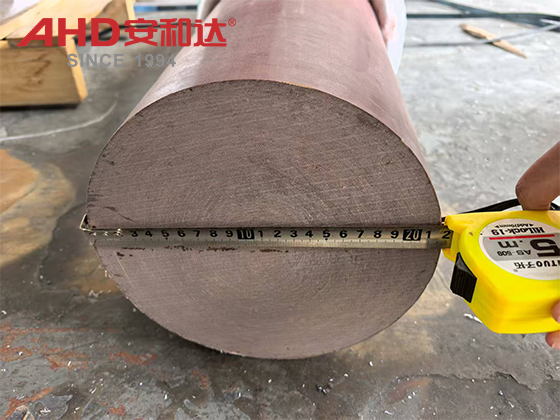

Cutting and Cutting to Length: The raw rod (typically 20-200mm in diameter) is cut to the required length using a saw or pipe cutter.

Surface Treatment:

Grinding: Use sandpaper or a polisher to remove burrs and improve surface smoothness.

Drilling/Tapping: Use a high-speed steel drill or carbide tool to create mounting holes. The speed should be controlled to avoid heat generation and delamination.

Plating/Coating: Nickel/chromium electroplating or epoxy resin spraying (for enhanced corrosion resistance) can be applied as required.

Precision Machining: For high-precision dimensional accuracy, CNC lathes and milling machines can be used for turning, slotting, and other operations. Coolant (such as a water-soluble cutting fluid) should be used during machining to reduce frictional heat.

Because of the different fabrics inside, some people call it Linen Phenolic Rod or Canvas Phenolic Rod.

Ⅴ. Application Scenarios

AHD Phenolic Cotton Rod is widely used in industries requiring insulation and structural stability:

Electrical & Electronics Industry: Manufactures bushings, spacers, and insulators for transformers, circuit breakers, and motors (resists high voltage and heat).

Mechanical Engineering: Serves as wear-resistant supports, guide rods, and pulleys for industrial machinery (withstands load without deformation).

Automotive Industry: Used as insulation components in engine compartments and electrical systems (tolerates under-hood heat and vibration).

Aerospace & Marine: Functions as lightweight insulation for avionics or marine electrical equipment (resists humidity and temperature fluctuations).

Appliance Industry: Produces components for ovens, refrigerators, and HVAC systems (combines insulation and heat resistance).

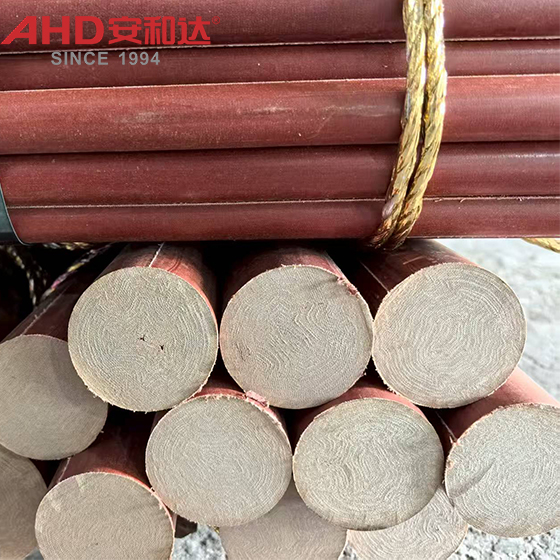

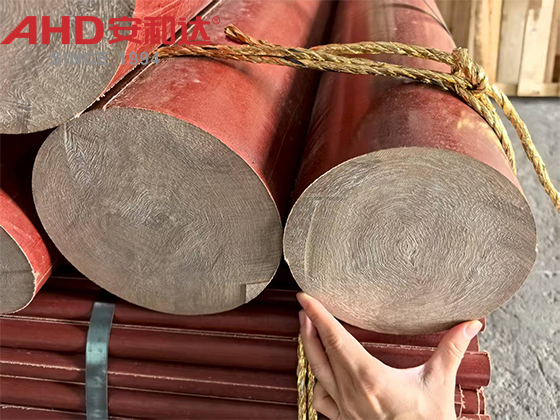

AHD Cotton Phenolic Round Stock

Ⅵ.Synergistic Effect of Components and Processing

The performance of phenolic cotton cloth rods is essentially the synergistic result of the mechanical strength of cotton cloth and the heat-resistant/insulating properties of phenolic resin, combined with a specific process:

The cotton cloth provides a "skeleton," ensuring the material does not break under stress;

The phenolic resin forms a "network" through cross-linking, imparting heat resistance, insulation, and chemical stability to the material;

The hot press curing process tightly bonds the two by controlling temperature, pressure, and time, ultimately creating a composite rod with high strength, high-temperature resistance, and high insulation.

The core advantage of phenolic cotton cloth rods lies in their balanced performance of "heat resistance, insulation, and mechanical strength," as well as their low cost and easy processing. Although polyimide, polyetheretherketone (PEEK), or ceramics are often used in high-temperature, ultra-high-frequency, or ultra-high-purity applications, their comprehensive cost-effectiveness makes them the preferred material in mid- and low-end industrial applications (such as general motors, transformers, and chemical equipment). For companies that require a balance between safety, durability, and cost, phenolic cotton cloth rods are one of the most reliable solutions.

AHD’s Unique Advantages

31-Year Thermoset Expertise: AHD’s decades of experience in phenolic composites ensure precise resin impregnation—avoiding voids or uneven density common in low-cost manufacturers’ products.

ISO-Certified Production: Manufactured on 250+ ISO-certified lines, with 30+ senior engineers overseeing quality control (e.g., dielectric strength testing for every batch).

Consistent Dimensional Accuracy: Tolerances as tight as ±0.1mm for diameters, eliminating fit issues in precision machining and assembly.
