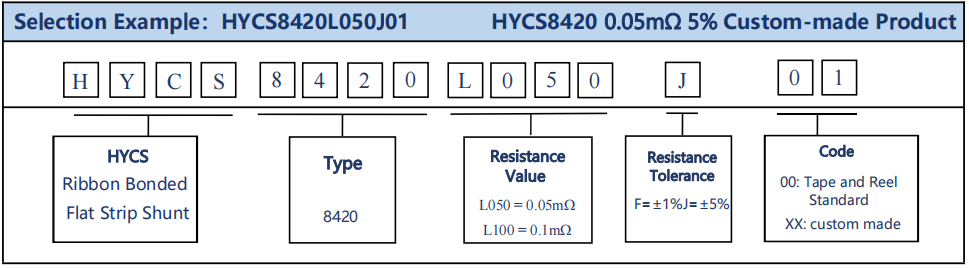

100 µΩ HYCS8420L050J01 Ribbon Bonded Flat Strip Shunt

2 month ago

5 0 

5 month

Product details

Ribbon Bonded Flat Strip Shunt

Wire Bonded Flat Plate Shunt for high-current signal sampling applications, featuring tolerance down to ±0.5%.

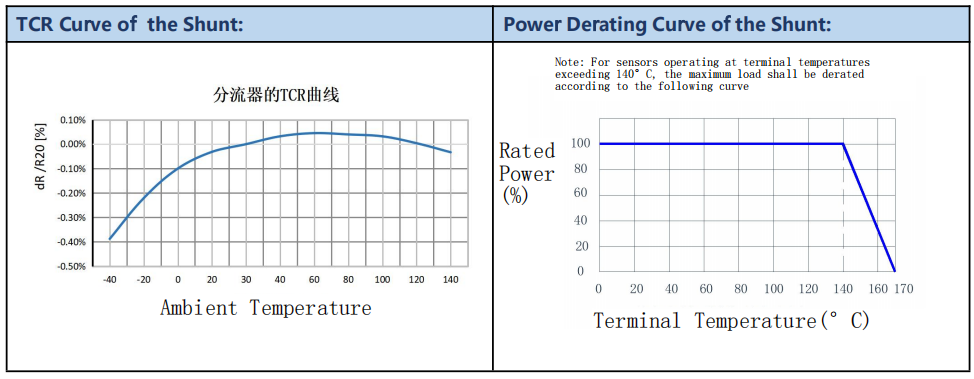

Certified to AEC-Q200 automotive-grade reliability standards, featuring high stability, extremely low thermoelectric potential and temperature coefficient.

Product Features:

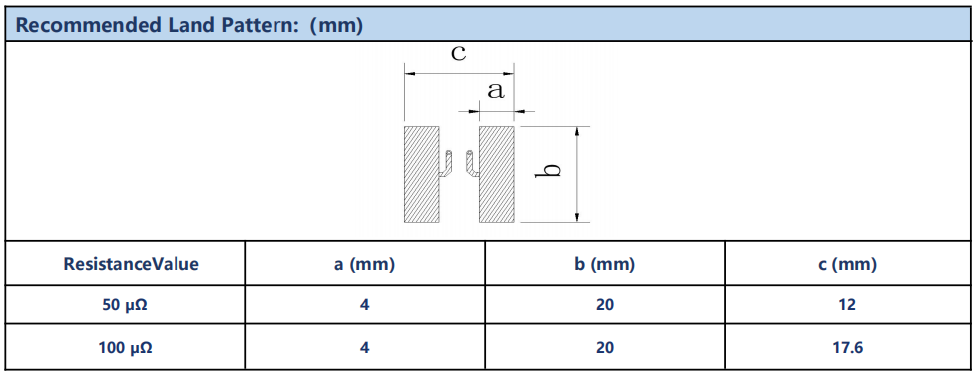

Grooved Flat Plate Shunt for PCB Surface-Mount Current Sampling

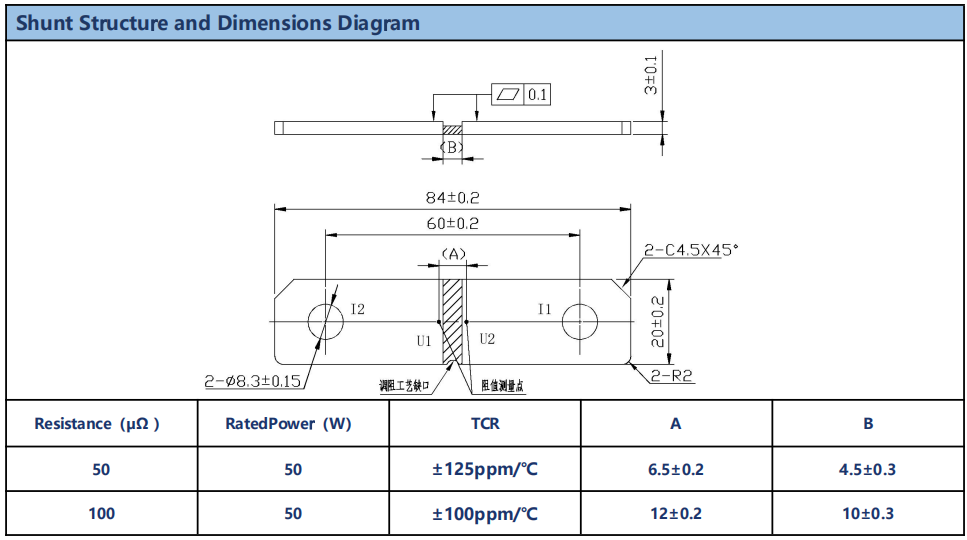

Vacuum electron beam welded structure
Available with tin-plated or bare terminals
Maximum tightening torque: 10 N
Excellent consistency, high reliability, superior stability, and strong pulse withstand capability
Nickel-plated and tin-plated copper terminals prevent oxidation and ensure better connectivity
Complies with RoHS & Environmental Regulations

*As a high-tech enterprise in a specialized field, our company is dedicated to providing high-strength, high-power, high-precision, high-reliability, ultra-low resistance, ultra-low temperature coefficient, ultra-low inductance value current sensing alloy resistors and shunt resistors. The product categories include Combined Shunts, Ribbon Bonded Flat Strip Shunts, U-Type Plug-In Shunts, High-Current Power Shunts, Pin-Type Shunt and more. We deliver related solutions for R&D, design, and production in sectors including automotive electronics, medical devices, smart home, measurement instruments, and energy storage BMS.
