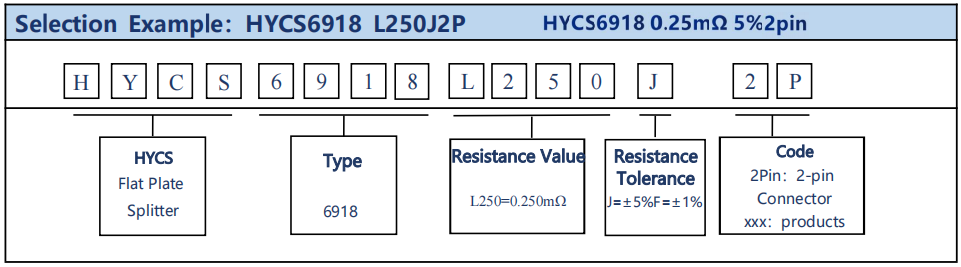

250 µΩ HYCS6918 L250J2P Pin-Type Shunt Resistor

2 month ago

6 0 

5 month

Product details

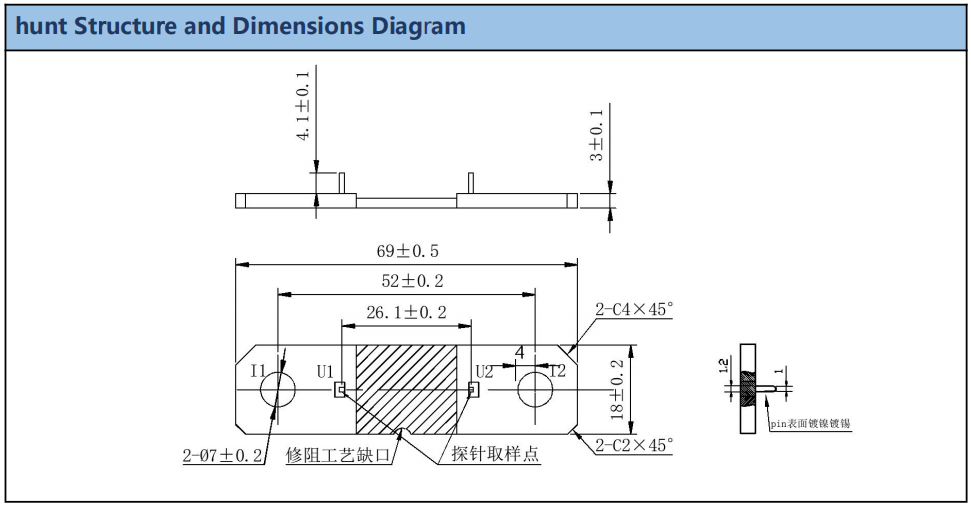

Pin-Type Shunt

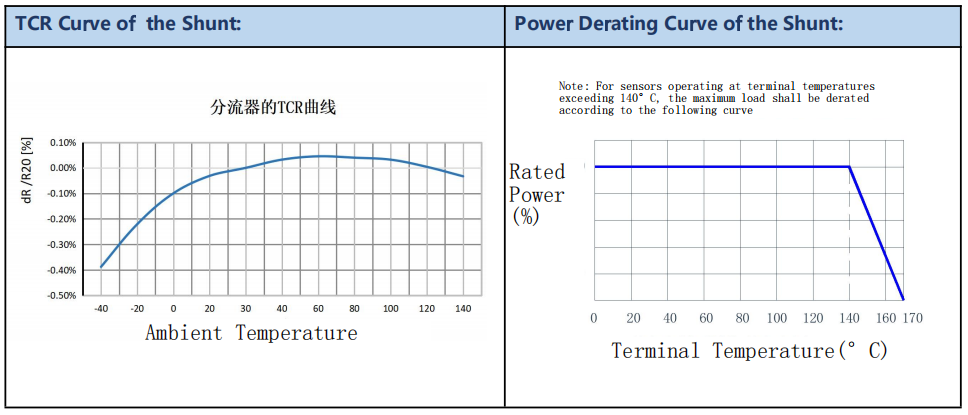

Pin-Type Shunt Resistor for high-current signal sampling applications, featuring tolerance down to ±0.5%. Certified to AEC-Q200 automotive-grade reliability standards, delivering high stability with ultra-low thermal EMF and optimized TCR.

Product Features:

Pin-Type Shunt with defined sampling positions for thermal drift compensation, suitable for precise current sensing on PCB-mounted applications.
Electron beam welded structure ensures robust and reliable performance.
Excellent consistency, high reliability, superior stability, and strong pulse withstand capability.
Available with tin-plated terminals or bare terminals (optional).
Maximum tightening torque: 10 N·m.
Certified to AEC-Q200 Automotive Grade Reliability Standards
Compliant with RoHS & environmental regulations.
Custom specifications supported (upon request).

*As a high-tech enterprise in a specialized field, our company is dedicated to providing high-strength, high-power, high-precision, high-reliability, ultra-low resistance, ultra-low temperature coefficient, ultra-low inductance value current sensing alloy resistors and shunt resistors. The product categories include Combined Shunts, Ribbon Bonded Flat Strip Shunts, U-Type Plug-In Shunts, High-Current Power Shunts, Pin-Type Shunt and more. We deliver related solutions for R&D, design, and production in sectors including automotive electronics, medical devices, smart home, measurement instruments, and energy storage BMS.
