Product details

Insulated Bakelite Board: The "All-Around Protector" Hidden in Industrial Corners - An In-Depth Analysis for Its Characteristics

In the "material toolbox" of industrial manufacturing, there's a seemingly ordinary material that silently supports the safety and stability of countless critical scenarios. Created in 1907, it was humanity's first synthetic thermosetting plastic. It lacks the luster of metal, yet it can withstand temperatures of 200°C. It's not as hard as ceramic, yet it can be easily processed into complex shapes. It's Bakelite—an industrial material that has, over a century, proven that reliability is more important than sleekness.

Bakelite's "Material Characteristics": What makes it stand out compared to metal, plastic, and ceramic?

To understand the value of Bakelite, we must first understand its "material positioning." While it isn't the most perfect material for a single property (for example, it can't match the strength of metal or the heat resistance of ceramic), it is the best choice for its comprehensive performance: insulation, heat resistance, ease of processing, and low cost. The following is a comparison with three common materials:

1. Compared with Metals: A Double Win in Insulation and Lightweight

The core advantages of metals are high strength and good conductivity. However, in applications requiring both insulation and heat resistance, Bakelite's advantages are truly superior:

• Insulation: Metals are conductors (with a resistivity of approximately 10⁻⁸ Ω·cm), while Bakelite has a resistivity of >10¹⁴ Ω·cm, completely isolating the current and preventing the risk of short circuits.

• Lightweight: Bakelite has a density of 1.2-1.3 g/cm³, halving the weight for the same volume (for example, tool handles made of Bakelite are lighter than metal, requiring less effort to operate).

• Heat Resistance: Aluminum alloys have a melting point of approximately 660°C, but soften at high temperatures (e.g., their strength drops by 50% at 150°C). Bakelite, on the other hand, can withstand long-term use at temperatures up to 150°C (short-term use at 200°C) and maintains its rigidity even at high temperatures. (For example, an iron soleplate made of aluminum alloy will deform, while one made of Bakelite will maintain stable operation).

2. Compared to Ordinary Thermoplastics: Absolute Advantages in Heat and Aging Resistance

Although thermoplastics are easy to process and low-cost, they are significantly vulnerable to high-temperature and long-term use. Bakelite's thermosetting properties compensate for this shortcoming:

• Heat Resistance: ABS has a heat deformation temperature of only 90°C, while nylon 66 has a heat deformation temperature of approximately 250°C but easily absorbs water and expands. Bakelite, on the other hand, has a heat deformation temperature of 120-150°C and exhibits dimensional change of less than 0.1% in humid environments.

• Aging Resistance: Ordinary plastics become brittle after long-term exposure to UV rays and ozone, while Bakelite has a stable molecular structure (benzene rings and cross-linking), offering UV and aging resistance for over 10 years.

• Chemical Resistance: Nylon is oil-resistant but sensitive to strong acids (such as hydrochloric acid), while Bakelite is resistant to dilute hydrochloric acid, mineral oil, and gasoline.

3. Comparison with Ceramics: The Balance Between Processability and Toughness

Ceramics (such as alumina) offer superior temperature resistance (>1000°C) and insulation properties (resistivity >10¹⁴ Ω·cm) to Bakelite. However, two major limitations make them difficult to replace Bakelite:

• Processing Difficulty: Ceramics require precision grinding, resulting in a cost 5-8 times higher than machining Bakelite.

• Brittleness: Ceramics have a fracture toughness of only 0.5-1 MPa·m¹/² (approximately 1/5 that of Bakelite), making them susceptible to shattering upon impact.

The core competitiveness of Bakelite is its "comprehensive cost-effectiveness" - in the four dimensions of "insulation, heat resistance, easy processing, and cost", it has found the optimal balance point in the industrial scene, which is the fundamental reason for its century-long success.

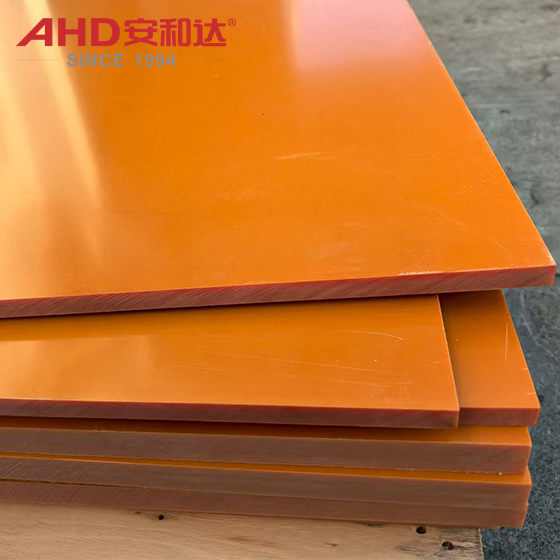

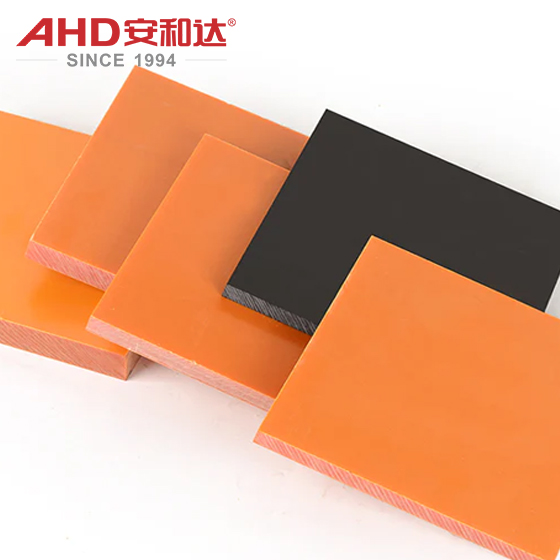

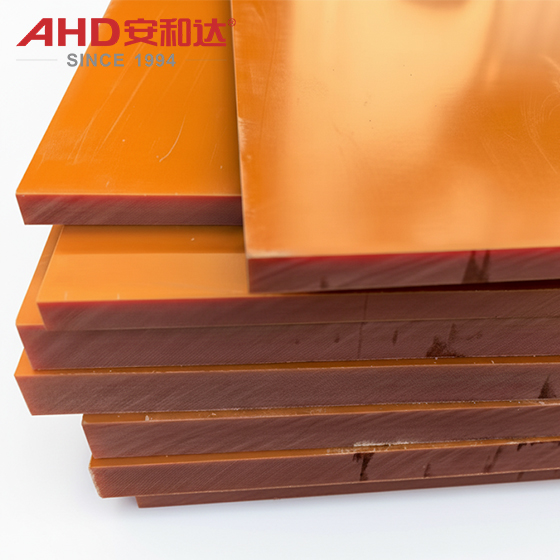

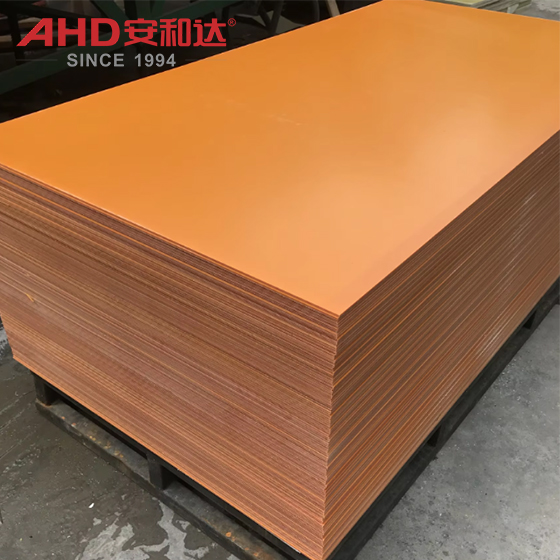

AHD Bakelite sheet, also called 3021 plastic sheet.

The core demands of industrial manufacturing are "stability, reliability, and low cost," and Bakelite's characteristics precisely address these three key pain points:

"Insulation and heat resistance"—the lifeline of electronic devices.

In electronic devices, insulation is the bottom line for safety (leakage can cause fires), while heat resistance guarantees longevity (high temperatures accelerate component aging). Bakelite's "high insulation + high temperature resistance" perfectly meets these requirements.

• Principle: Bakelite's molecular chains are cross-linked through benzene rings and aldehyde groups to form a three-dimensional network structure. This eliminates free electrons and provides stable insulation. Furthermore, the cross-linked structure prevents molecular chain slippage, making it less susceptible to softening at high temperatures. (Ordinary plastics have a linear structure, which can cause chain slippage and deformation at high temperatures.)

"Vibration Resistance and Corrosion Resistance"—The Automotive Industry's "Severe Test"

In automotive engine compartments and transmissions, components must withstand the triple challenge of vibration, oil (motor oil, gasoline), and high temperatures (engine compartment temperatures >100°C). Bakelite's "vibration resistance, oil resistance, and temperature resistance" are key.

• Principle: Bakelite's harder than ordinary plastics resists vibration wear. Its stable molecular structure resists chemical reactions with motor oil (containing long-chain hydrocarbons) and gasoline (containing alkanes). (The ester bonds of ordinary plastics are easily swollen by oils.)

"Low Cost, Long Life" – "Cost Reduction and Efficiency Improvement" for Industrial Equipment

In industrial equipment, many essential components (such as insulation pads and support rings) require long-term use and are costly to replace. Bakelite's "one-time investment + long-term maintenance-free" characteristics significantly reduce overall costs.

• Principle: Bakelite exhibits no creep (no deformation under long-term stress) and is resistant to aging (UV and oxidation), requiring no regular replacement. Rubber, on the other hand, hardens and cracks with aging, and plastic loses its support due to creep.

Characteristics and Advantages of Bakelite sheet

Bakelite's core properties stem from its thermoset cross-linked structure (after curing, the molecular chains form a three-dimensional network that cannot be remelted or reshaped). Combined with the synergistic effect of fillers, this material excels in multiple dimensions:

1. Physical and Mechanical Properties

High Hardness and Rigidity: Cured Bakelite exhibits high hardness, with a tensile strength of approximately 50-80 MPa and an even higher flexural strength of 80-120 MPa, far exceeding that of ordinary thermoplastics, making it suitable for applications subject to load or friction.

Low Shrinkage and Dimensional Stability: Its thermoset structure results in extremely low shrinkage during curing (<0.5%). After molding, it exhibits virtually no expansion or contraction with changes in temperature or humidity, making it suitable for precision parts.

Outstanding Wear Resistance: The addition of wood flour or asbestos fillers results in a high surface hardness and a dense structure, resulting in wear resistance superior to most general-purpose plastics and low wear rate under long-term friction.

2. Thermal Properties

Excellent Heat Resistance: The long-term operating temperature of unfilled Bakelite is approximately 120-150°C. Adding asbestos or mica can reach 180-200°C (with even higher short-term temperature resistance). This is significantly higher than that of common plastics, allowing for stable operation in high-temperature environments.

Flame Retardancy: The molecular chain contains numerous aromatic rings (phenol structure) and is tightly cross-linked, achieving self-extinguishing properties (quickly extinguishing upon removal from a flame source) without the need for additional flame retardants. It also generates very low smoke during combustion, meeting strict safety standards.

3. Electrical Properties

High Insulation: Bakelite is a typical electrical insulating material with a volume resistivity >10¹⁴ Ω·cm, a breakdown voltage (AC) of 15-30 kV/mm, a dielectric constant (1 MHz) of approximately 4.5-5.5, and an extremely low dielectric loss tangent, making it suitable for insulating components in high-voltage, high-frequency environments.

Arc Resistance: Even when partial discharge (arcing) occurs under high electric fields, the carbonized layer formed on the surface hinders arc propagation and prevents instantaneous breakdown. It is widely used in critical insulating parts such as switches and relays in electrical appliances.

4. Chemical Properties

Chemical Resistance: With the exception of strong oxidizing acids and high-concentration strong bases, it is virtually unreactive with common organic solvents , oils, and saline solutions, allowing for stable use in chemical equipment and humid environments.

Aging Resistance: Its molecular structure is stable, and it offers strong resistance to UV rays (requiring the addition of light stabilizers ) and oxidation, maintaining its performance even after long-term outdoor exposure.

Core Advantages Summary

Bakelite's irreversible curing properties give it inherent advantages in heat resistance, insulation, and dimensional stability. Combined with the enhanced mechanical properties of fillers, this material has become irreplaceable in environments with high temperature, high humidity, high abrasion, or strong electric fields, making it a particularly dominant material in traditional electrical appliances and industrial machinery.
