Product details

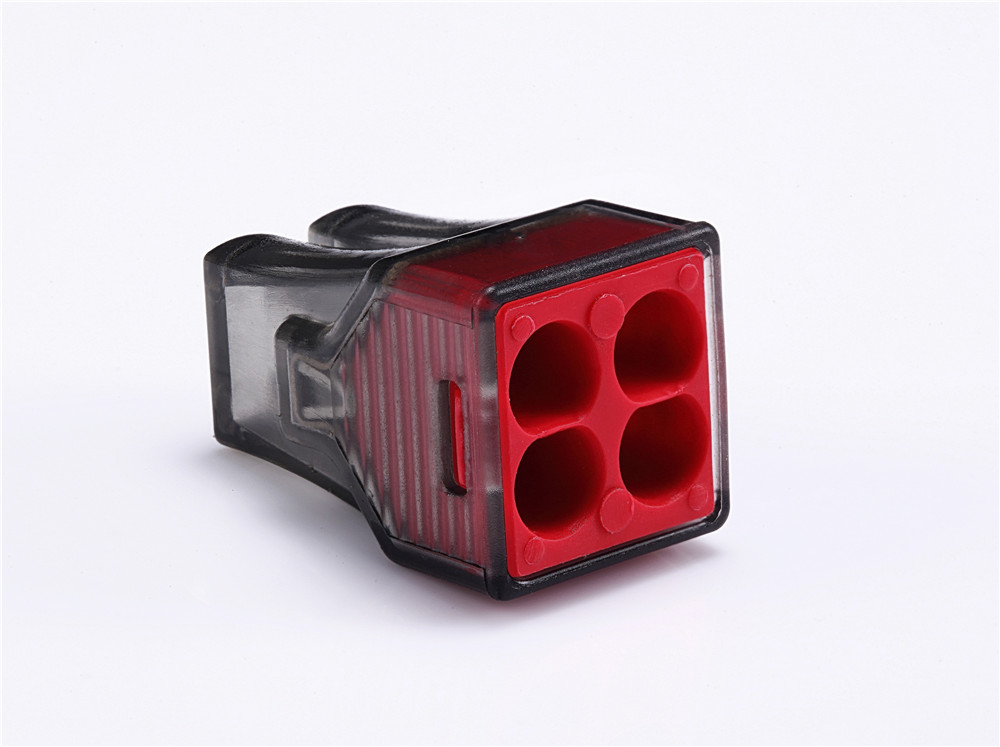

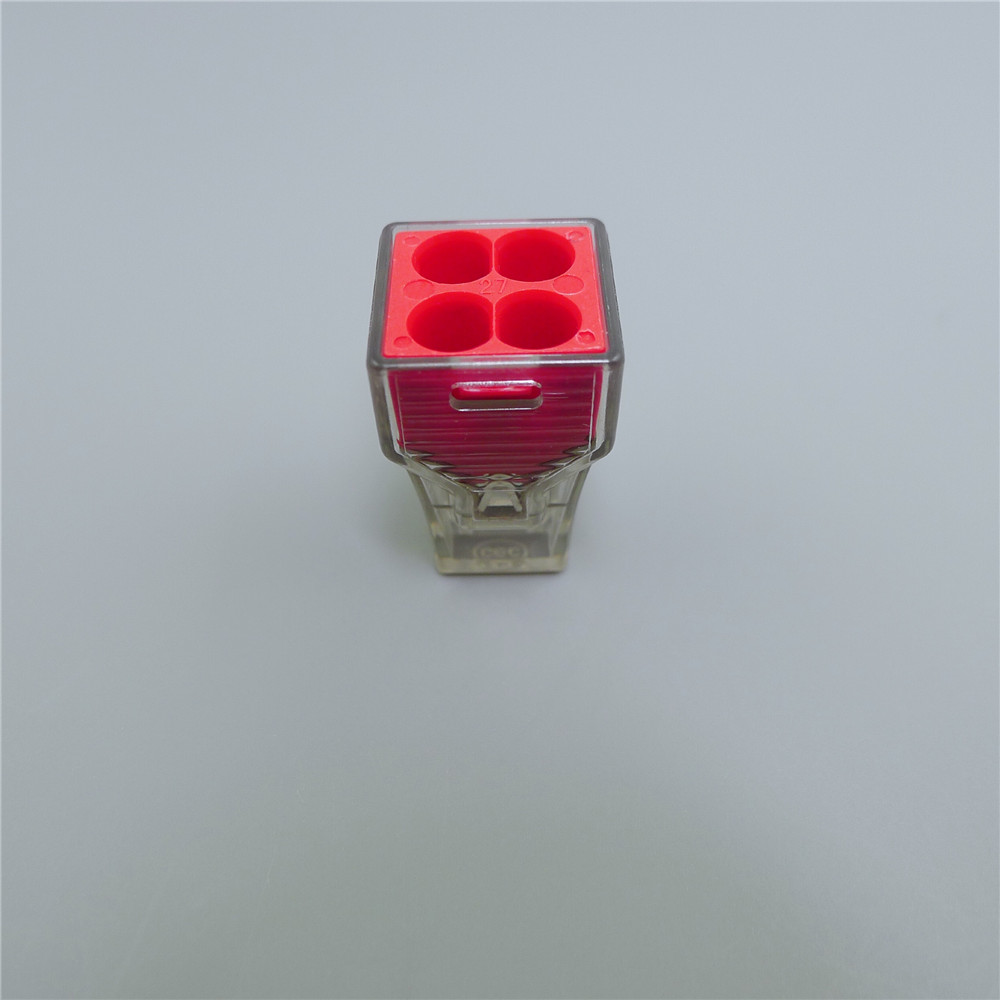

The BELEKS P01-i4 series is a premium 4-pole push in connector designed specifically for use with 4mm² conductors. Its innovative push-in design simplifies installation, allowing for quick and easy connection of wires without the need for screws or other fasteners. This quick connector is constructed with high-quality materials that ensure a secure and reliable connection, making it suitable for a wide range of electrical applications. With its compact size and robust construction, the BELEKS P01-i4 series push wire connectors are an ideal choice for professionals who require a reliable and efficient wire connector for their 4mm² conductor needs.

size of connector: 13.10mm×19.50mm×13.00mm

Annual Production: 40, 000, 000PCS/Year

Materials:

housing: polypropylene(V2) & polycarbonate(V2)

clamping unit: copper & stainless steel

cover color: red

Packing info:

200 pcs per bag, 20 bags per carton

carton size: 32x27x27.5 cm

net weight: 9kg

gross weight: 9.5kg

Specifications:

Item No.		P01-i4
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		400	600
Rated Current (A)		32	-
Ambient Temperature	Polycarbonate	T105	105℃
	Polypropylene	T105	105℃
Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.75-4.0mm²	AWG12-18
	Stranded conductor	1.5-4.0mm²	AWG12-16
Strip length (mm)		12
Means of connection		push in
Number of terminals		single
Number of connection points		4
Protection Degree
IP20
Materials
Insulation Materials	Designation	Polycarbonate, Polypropylene
	Flammability class	UL 94V-2
Packing Quantity (pcs/carton)
4000

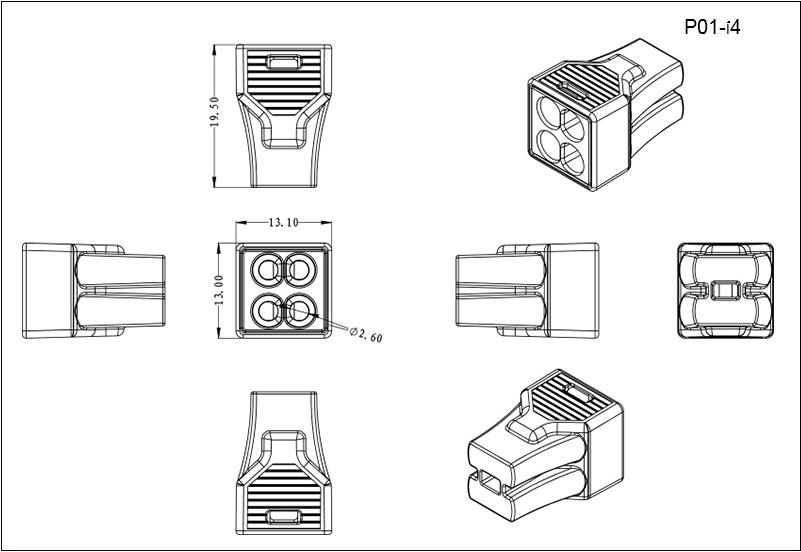

Drawing:

push wire connector 4 ports
