Upward Continuous Casting Production Line

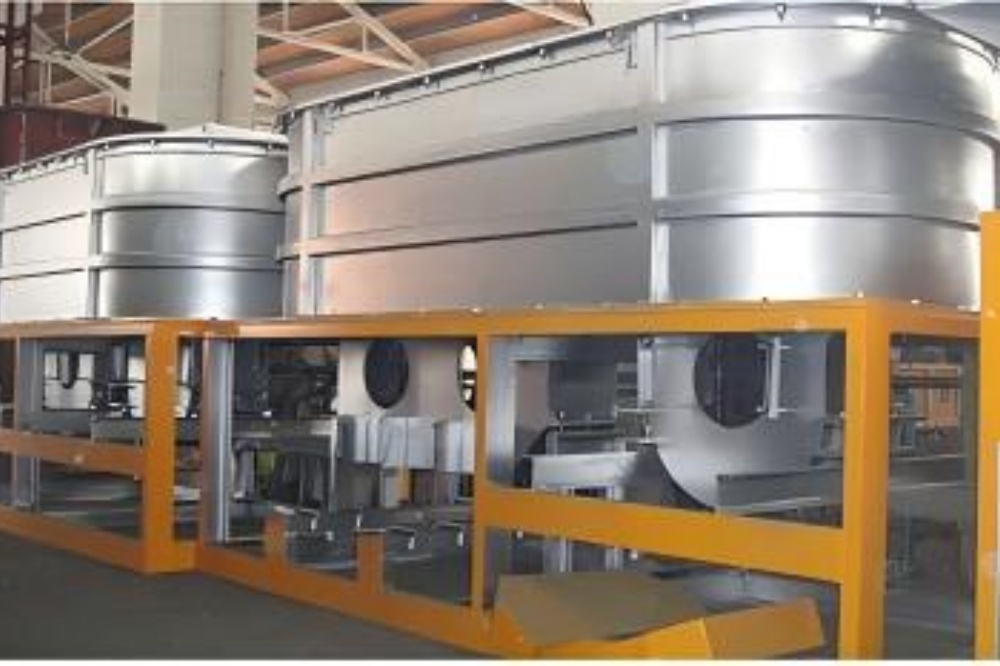

3000T Upcasting Furnace

1.Production Process:

The production process of the 3000T Upcasting Furnace is closely integrated with the Oxygen-Free Copper Rod Line and SCR Copper Production Line. Specifically, it starts with cathode copper (electrolytic plate) being fed into an industrial frequency induction furnace (melting chamber - transition chamber - holding furnace) for melting. After that, the molten copper is conveyed to the Upcast Continuous Casting Machine, which is equipped with a Continuous Casting Wheel System to realize top-drawn crystallization profile forming. Finally, wire collection is completed, and the finished products are put on the market or further processed. This entire process is a core part of the Oxygen-Free Copper Rod Line and SCR Copper Production Line, ensuring stable and efficient production.​

Cathode copper (electrolytic plate) - Industrial frequency induction furnace (melting chamber - transition chamber - holding furnace) - Upcast Continuous Casting Machine (equipped with Continuous Casting Wheel System for top-drawn crystalline profiles) - Wire collection - Profile sales or further processing

2.Technical Parameter

300KG/500KG double connected upcasting furnace

Rated total power of melting furnace                       120KW

Rated power of holding furnace                               80KW

Number of continuous casting heads                       6

Copper rod doameter:                                             Ф8-20mm

Maximum continuous casting capacity                   3000T/Y

Upper leading speed                                              450-2400mm/min

Working hours per year                                         7200h

Level tracking accuracy                                         ±2mm

Winding specifications                                           φ700mm×φ1600mm×800mm

Power consumption rate of molten copper            ＜315kwh/ton

Power factor                                                         0.9-1

Cooling water pressure                                        0.25-0.3mpa

The 3000T upcasting furnace is specially designed to match the Upcast Continuous Casting Machine, Oxygen-Free Copper Rod Line, Continuous Casting Wheel System and SCR Copper Production Line. It provides stable melting and casting support, effectively ensuring the production efficiency and product quality of the entire oxygen-free copper rod and SCR copper production system.
