Our 3.5mm pitch PCB wire connectors redefine fast and reliable wire-to-board connections. Featuring a revolutionary push-in spring cage design, they allow for tool-free installation of solid and stranded wires (16-24 AWG), slashing assembly time by up to 50% compared to traditional screw type terminal blocks.

Engineered for performance and safety, these terminal blocks boast a 250V rating and 8A current capacity, making them ideal for a wide range of industrial control, automotive, telecommunications, and power supply applications. The high-temperature PA66 housing (UL94 V-0 rated) and electroplated copper alloy contacts ensure exceptional resistance to heat, flames, and corrosion, guaranteeing long-term reliability in demanding environments.

Key Features & Benefits:

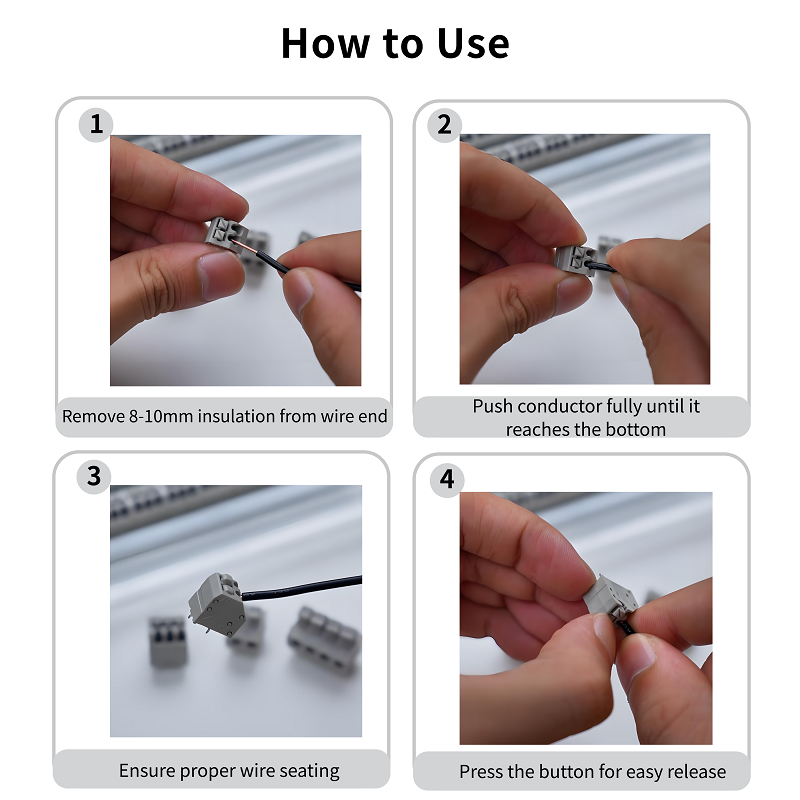

✅ Quick Push-In Design: Connect and release wires in seconds without tools, maximizing production efficiency.

✅ Versatile Wire Compatibility: Accepts both single and multi-strand conductors (16-24 AWG), providing design flexibility.

✅ Robust & Safe: UL94 V-0 flame-retardant housing and 250V/8A rating meet international safety standards.

✅ Stable Connection: High-quality spring and tin-plated contact ensure low contact resistance and vibration resistance.

✅ Global Compliance: Designed to meet CE, UL, and other international certifications (please inquire for specific marks), ensuring smooth import and use in North America, Europe, and worldwide.

Ideal for Use In:

* Industrial Automation & Control Systems (PLC Modules, Sensors)

* Power Supplies & UPS Systems

* HVAC and Building Automation

* Automotive Electronics

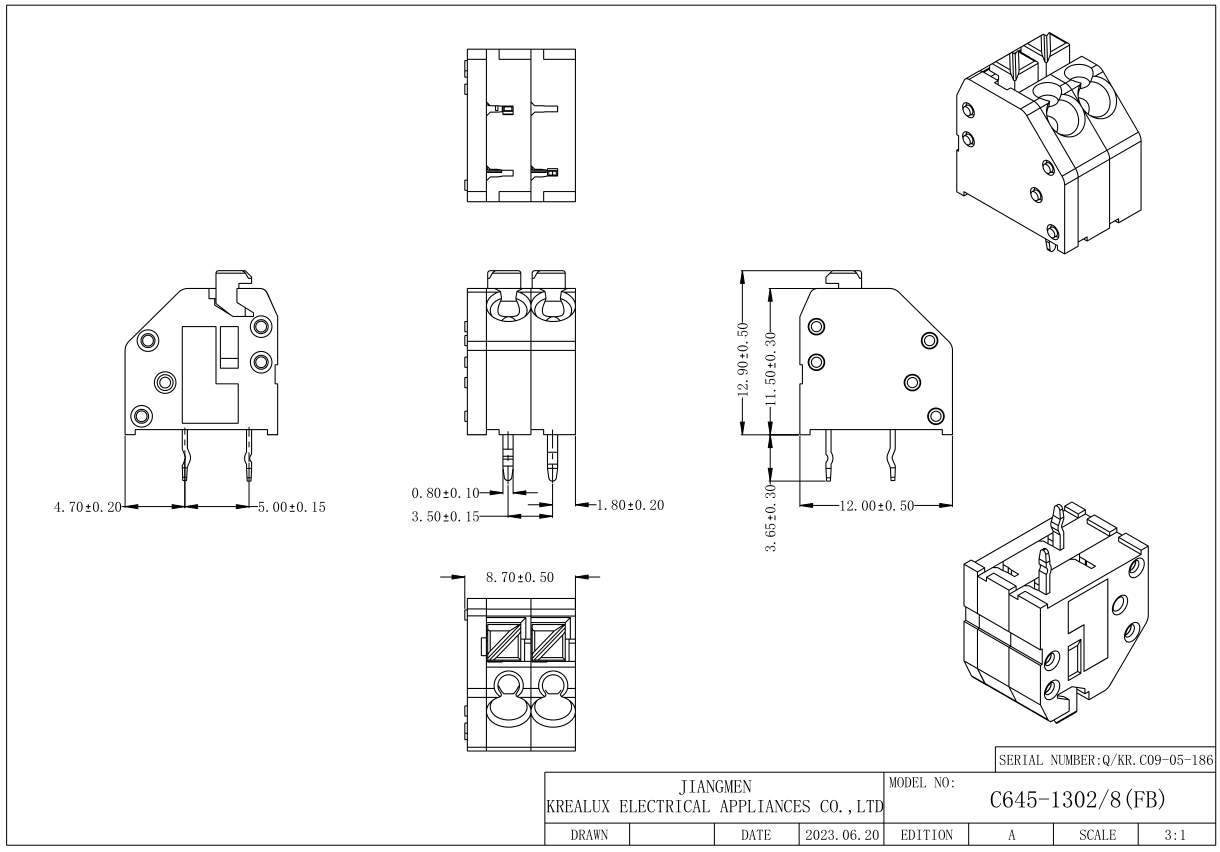

Item No.		645-13XX
Electrical Data
		IEC/EN	UL
Rated Voltage (V)		250	300
Rated Current (A)		8	5
Ambient Temperature		T110	105℃

Connection Data
		IEC/EN	UL
Cross Section	Solid conductor	0.2-0.75	16-24 AWG
	Stranded conductor	0.2-0.75	16-24 AWG
	Flexible conductor	-
Strip length (mm)		8-10
Means of connection		push in
Rewirable		√
Number of terminals		1-12
Means of Fixing
soldering
Materials
Insulation Materials	Designation	Polyamide 66
	Flammability class	UL 94V-0
Clamping Unit		Copper alloy
