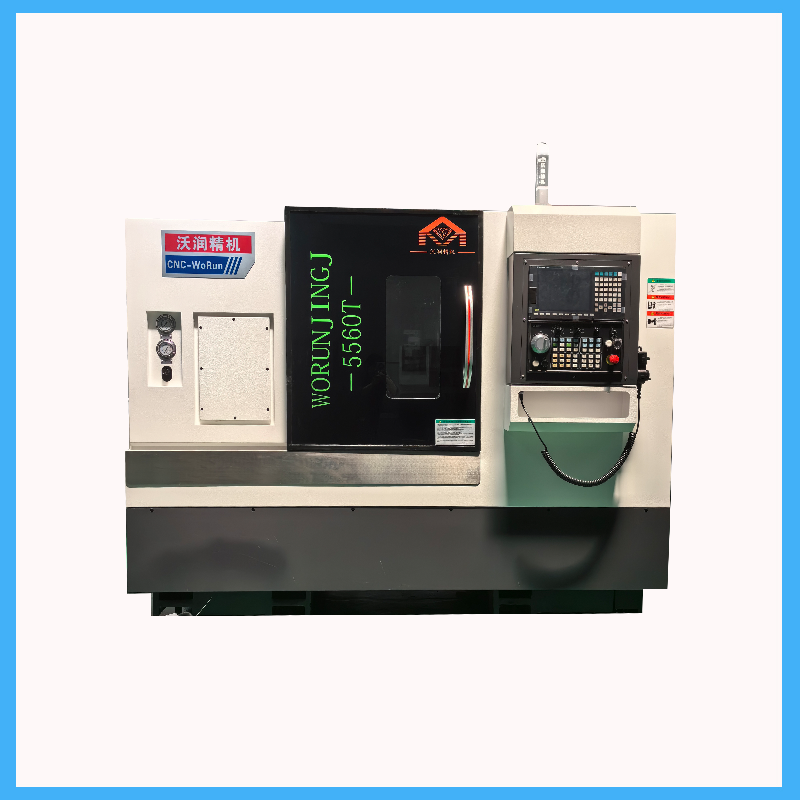

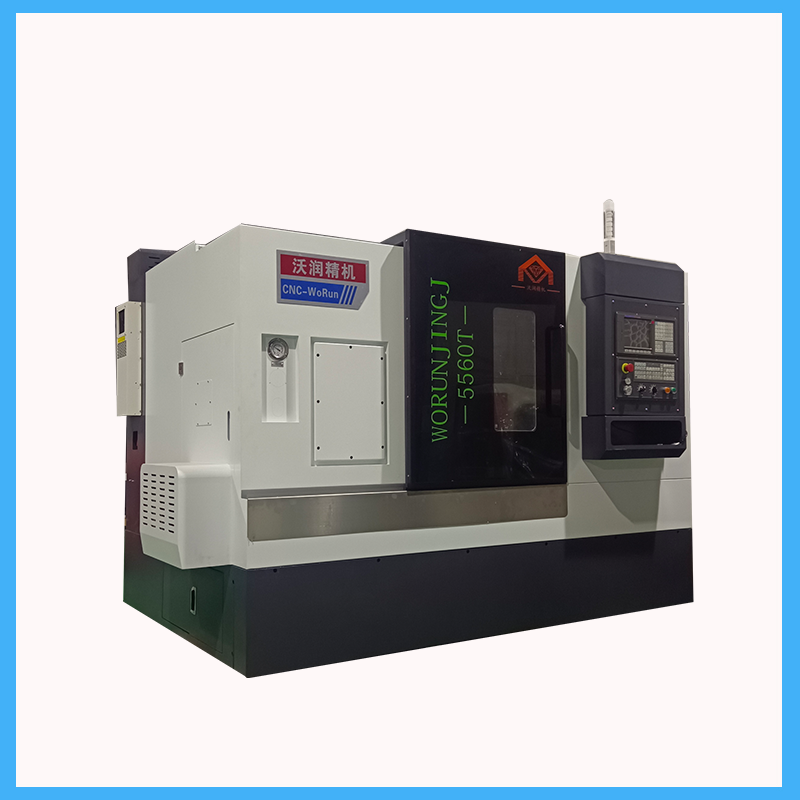

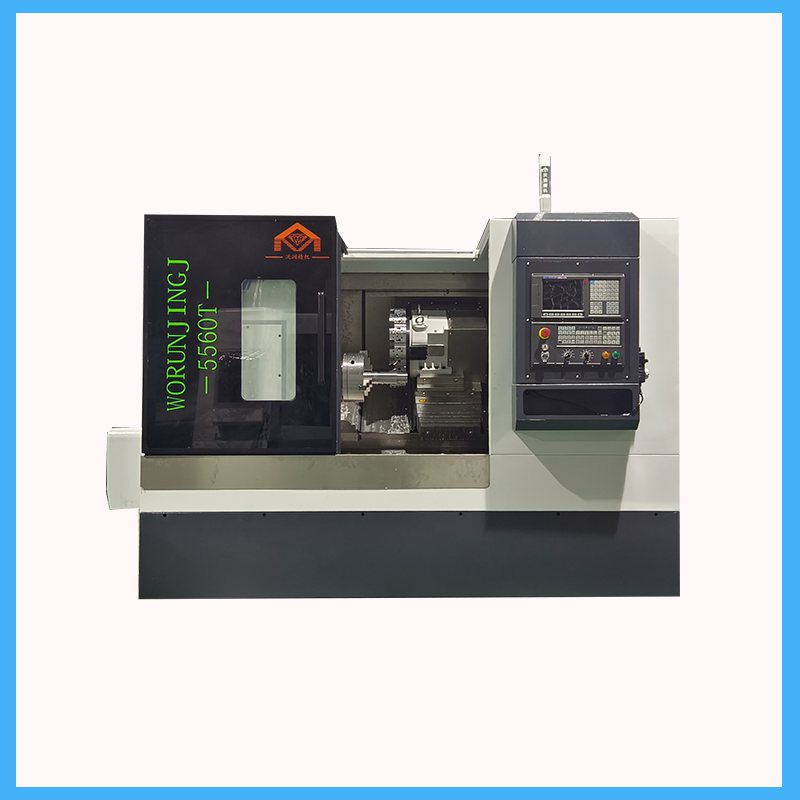

This is a CNC slant bed lathe with high precision and strong reliability, which can process shaft and disc parts, turn threads, arcs, cones and internal and external surfaces of rotating bodies, and process rotating body parts in batches. The main components of this inclined bed CNC lathe, such as bed base, bed body and headstock, are cast to ensure the long-term stability of the machine tool. This CNC Lathe Machine adopts a 45-degree integral inclined bed structure and is equipped with a high-precision preloaded Taiwan Province linear rolling guide rail. The machine tool has high position accuracy and smooth chip removal, which is suitable for high-speed medium or high-precision machining of parts. Shell spindle unit, servo spindle motor, can achieve higher spindle speed; The spindle unit is assembled in a constant temperature room, and it runs in and out at constant temperature for 72 hours continuously after assembly, and then it is put into trial operation for 72 hours continuously after operation, so as to ensure the reliable performance of the lathe. The tool arrangement mode is selected, which has fast tool changing speed and high positioning accuracy.
