Product details

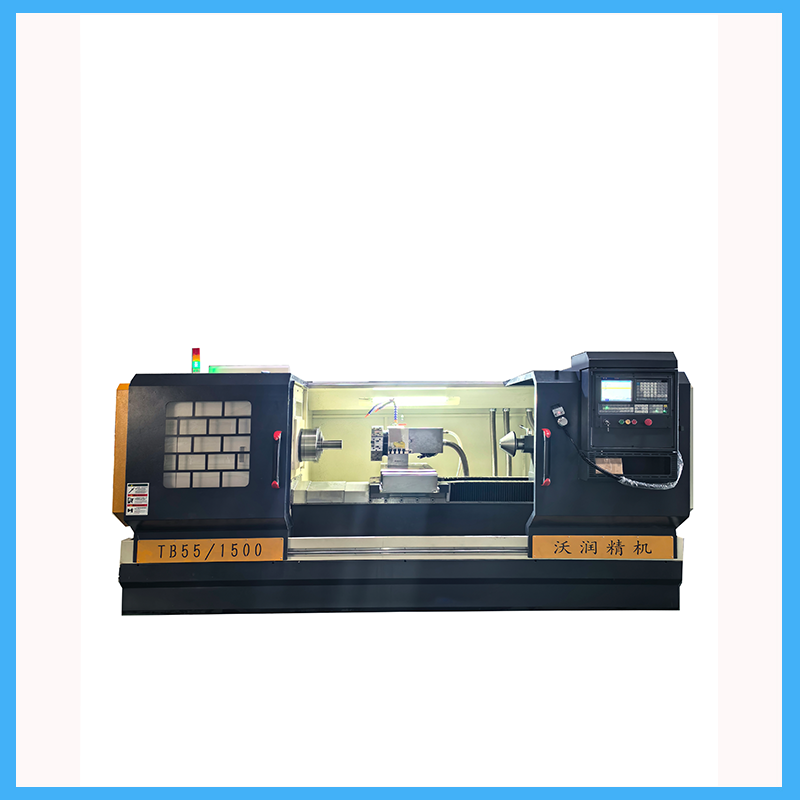

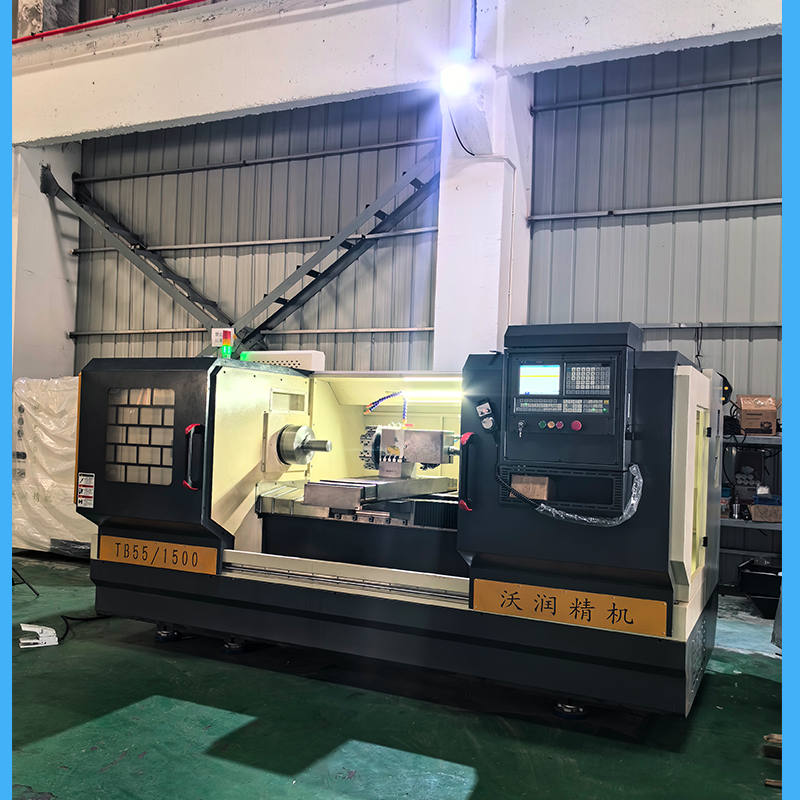

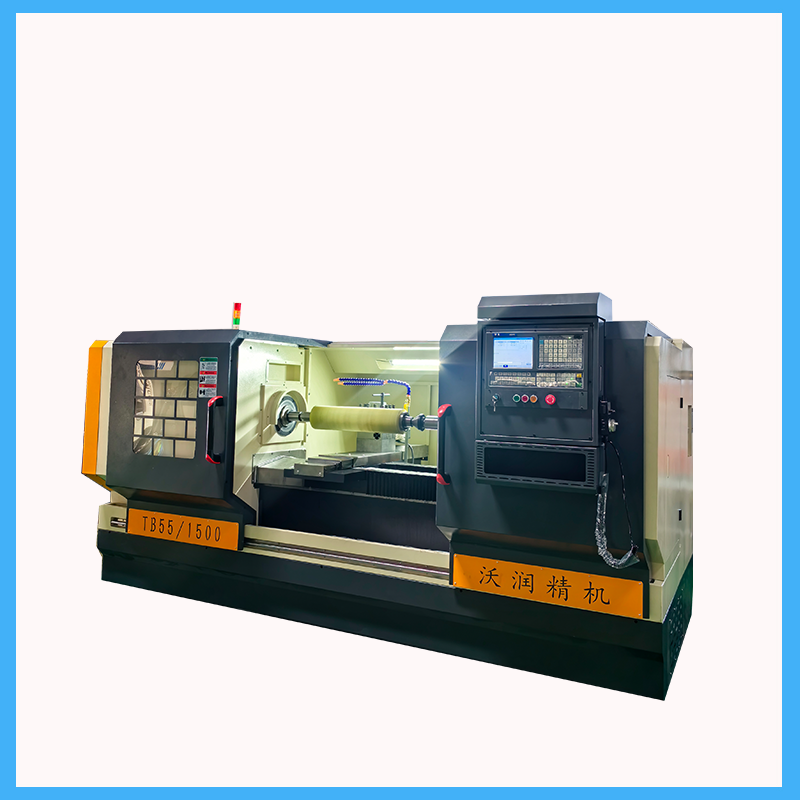

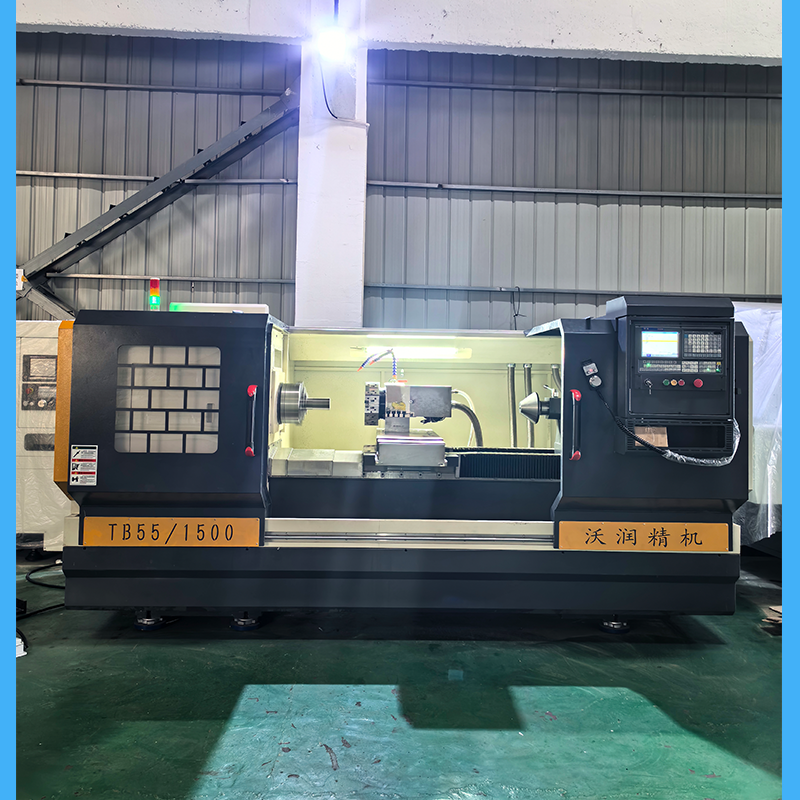

TB series CNC Grooving Machine tool：

1.The bed frame is a structural component made of gray cast iron, which is precision-machined after secondary annealing and heat treatment. The Vertical Lathe Machine has excellent static and dynamic rigidity and does not deform.

2. The spindle and tailstock spindle of CNC Machine Tool adopts a heavy-load infinite speed spindle, which can achieve high speed and high load, and the tailstock adopts independent hydraulic control with vector frequency conversion control. When the tailstock is not up, the equipment is not allowed to start the spindle

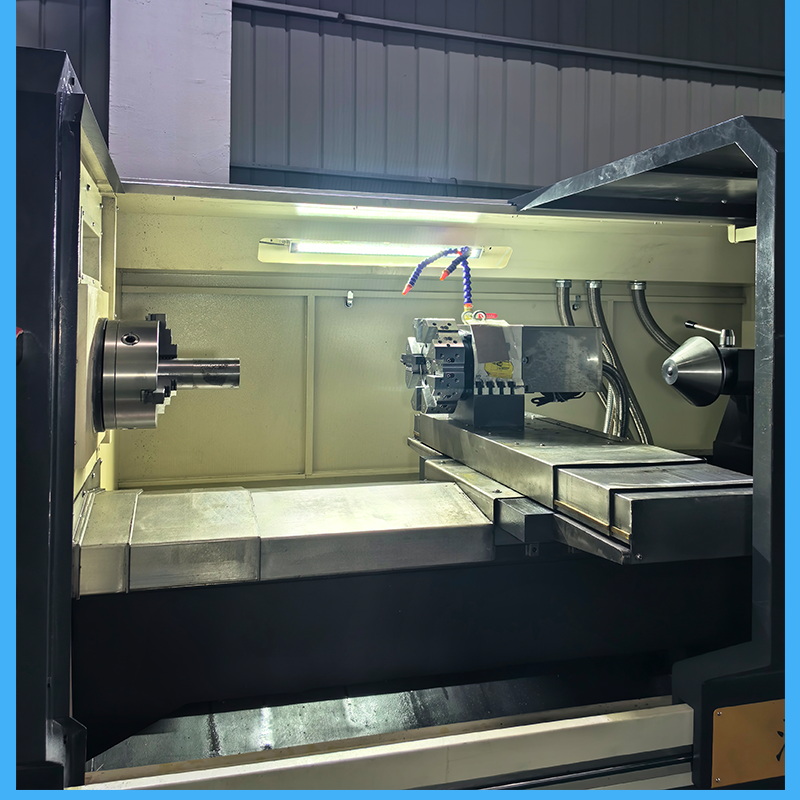

3. The turret: The rear-mounted eight-position servo hydraulic turret is convenient to operate when loading and unloading the workpiece.

4.The transmission device: The high-precision design guide rail and slide block are used, which run smoothly and effectively improve the heavy load capacity. The Z-axis central screw eliminates wire wrapping

5.Automatic lubrication device and protection device: This machine is equipped with a volumetric pressure automatic lubrication device, which can automatically lubricate all parts of the guide rail, screw, and other moving parts, ensuring the service life of the machine. The processing area is fully enclosed and protected to prevent waste from entering the mechanical transmission parts, ensuring the processing accuracy.

6. Control system: special CNC system for Worunjingji machine spindle. The motor adopts high-precision servo motor drive, color display screen, Chinese operation interface, can be on-site / external USB input, the equipment has the function of program re-inspection before processing, has a dedicated looper processing program, only needs to modify the looper data, the processing operation is very convenient. (At the same time, it has powerful conventional machining functions)

Similar Video Recommendation

< >

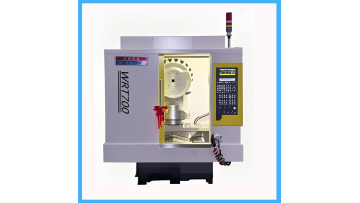

e5f00a12f2f22cbe91ff5ebb5253118e_raw~3

6b9c784b50ad4224ce7403123bcec507raw

114204b15d67361608f6929c87328395_raw

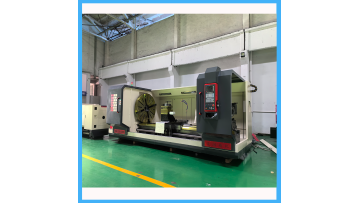

61125.High precision CNC horizontal lathe

e0c741ff1cf0a9ad3a7c2d4aa4eb5c8f_raw

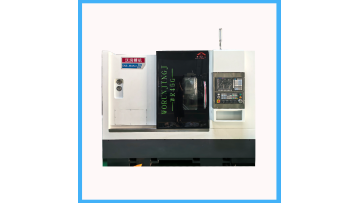

5628f253b2565a6ef2754b4469e9dc18_raw

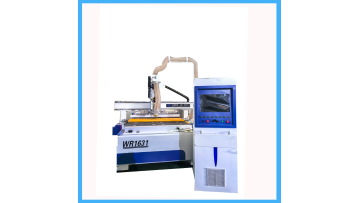

b3093c1014f4882c3cd2c074969c542f_raw
