Product details

We are pleased to introduce the BELEKS 6 Poles Safety Push Wire Connectors, which represent the ideal solution for the architectural decoration industry. These connectors feature a safe and secure push-in design, ensuring a reliable and strong connection for your electrical wiring needs. With six poles, these push-in connectors provide ample capacity for multiple circuits, making them ideal for use in intricate architectural designs. The BELEKS 6 Poles Safety Push Wire Connectors are designed with safety as a primary consideration, offering a secure and worry-free installation process. These wire harness connectors are ideal for both residential and commercial projects, and will be a valuable addition to your architectural decoration toolkit.

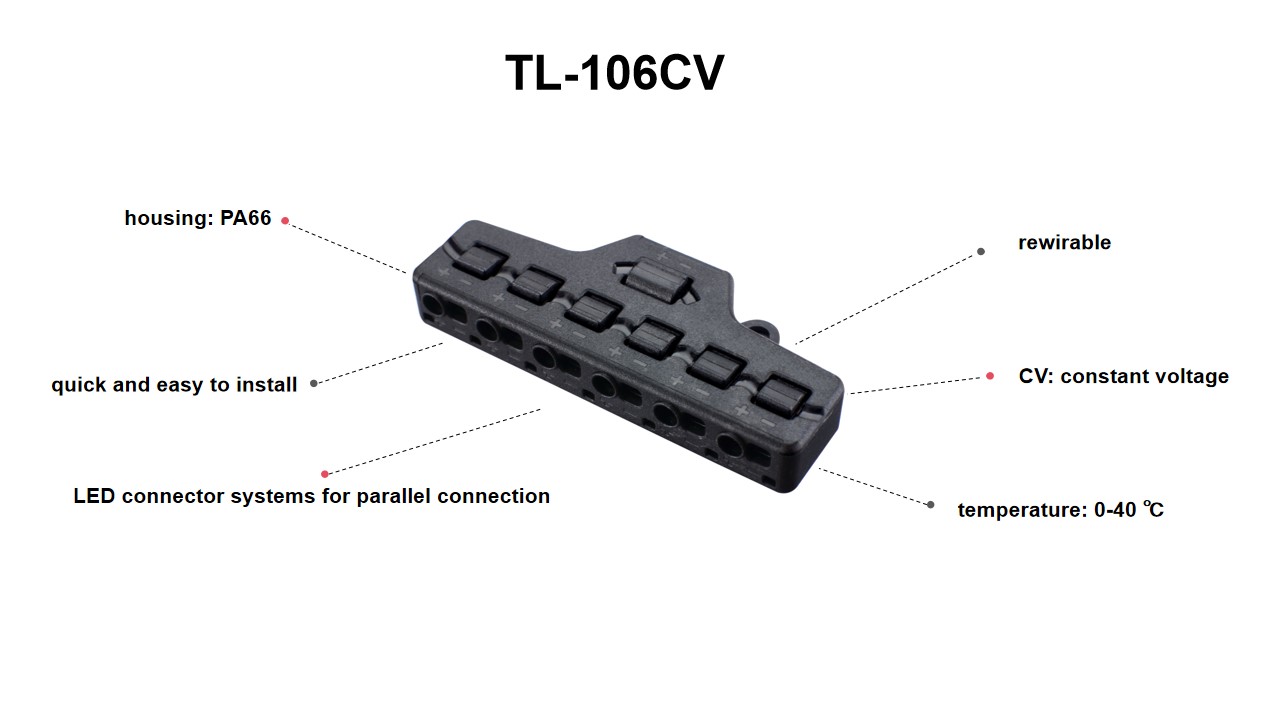

TL-106CV (5)

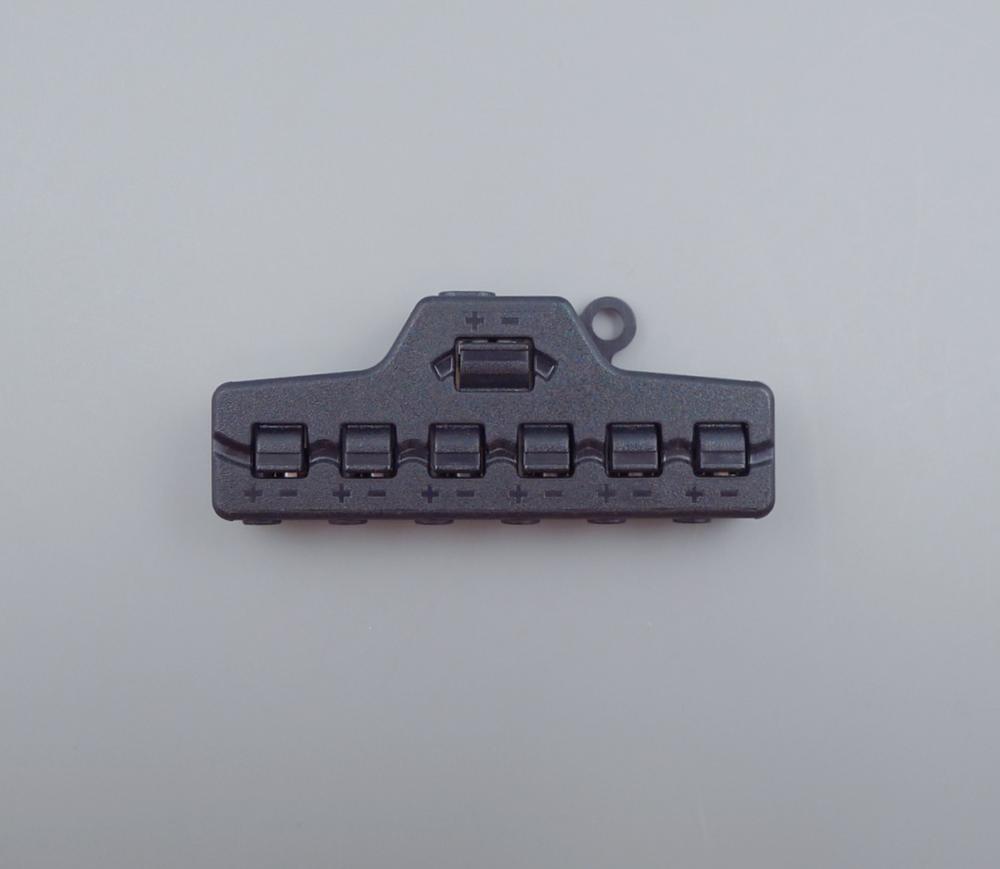

TL-106CV (2)

Materials:

Housing: polyamide66(v2)

clamping unit: copper & stainless steel

Packing info:

50 pcs per bag, 10 bags per carton

carton size: 57X14.4X17.2 cm

net weight: 4.5kg

gross weight: 5.5kg

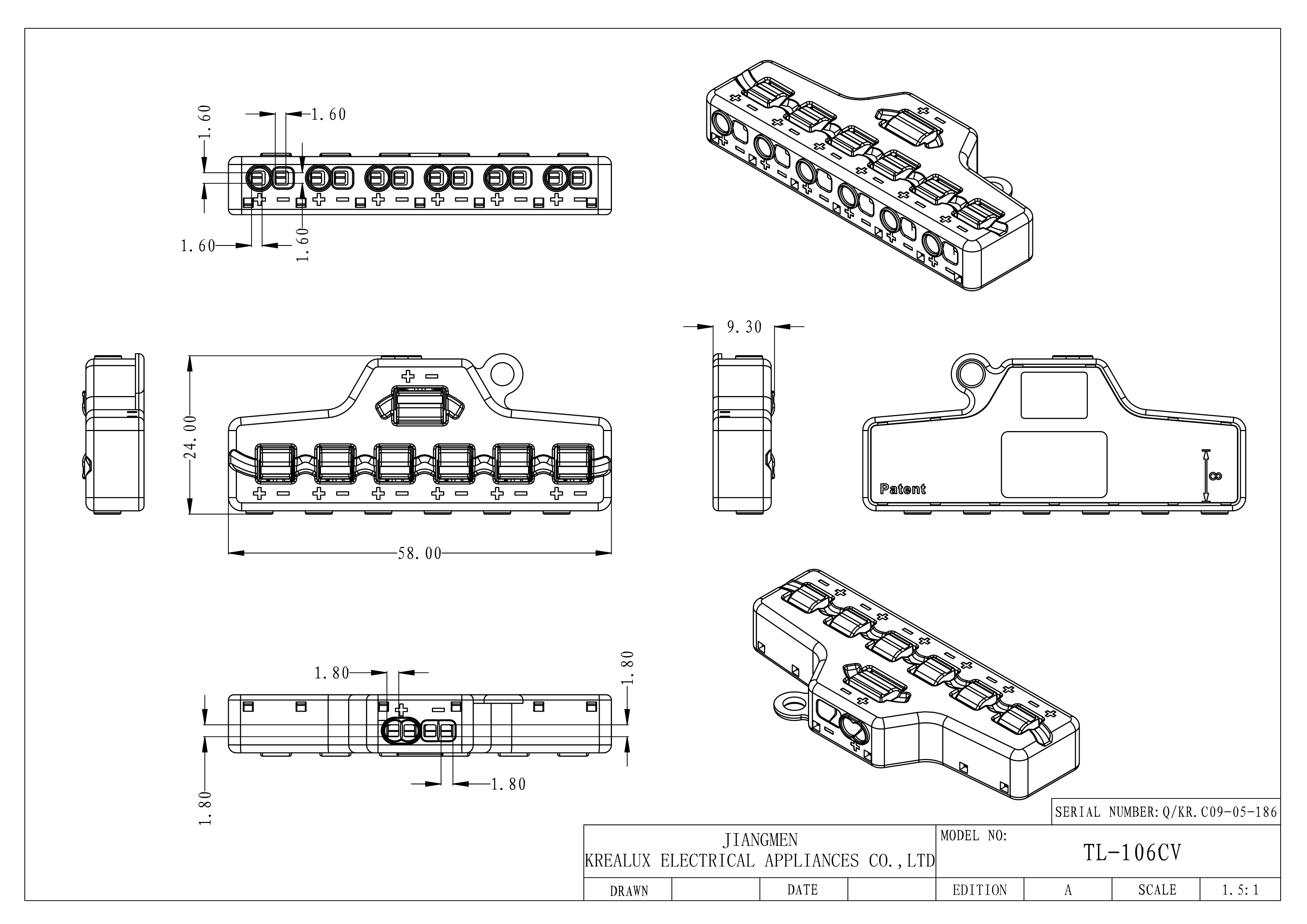

Dimensions

Specifications

Item No.		TL-106CV
Electrical Data
		IEC/EN
Rated Voltage (V)		0-42V DC
Rated Current (A)	Input	9
	Output	1.5
Ambient Temperature	Polyamide 66	0~40℃
Connection Data
Wiring Capacity		IEC/EN
Input	Rigid Conductor	0.34-0.75mm²
	Tin-bonded Flexible Conductor	0.34-0.75mm²
	Flexible Conductor with Copper Clamp	0.5-0.75mm²
Output	Rigid Conductor	0.2-0.5mm²
	Tin-bonded Flexible Conductor	0.2-0.5mm²
	Flexible Conductor with Copper Clamp	0.5mm²
Strip length (mm)		8
Means of connection		push-in
Rewirable		√
Number of terminals		multiway
Number of connection points		6
Means of Fixing		screw fixed
Materials
Insulation Materials	Designation	Polyamide 66
	Flammability class	UL 94V-2
Clamping Unit		brass, stainless steel
Packing Quantity (pcs/carton)
500
