BELEKS SMD Terminal Blocks: Built for Automation, Designed for Light
3 week ago
Product details
Product Overview
The BELEKS L01-N Series represents a breakthrough in screwless PCB terminal block technology, engineered for rapid, reliable electrical connections in industrial and commercial applications. These VDE, UL, and CE certified wire connectors feature a surface-mount (SMT) design and durable PA46 flame-retardant housing (UL 94V-0), delivering tool-free installation and maintenance-free performance. Ideal for industrial automation, smart building systems, LED lighting, and control panel applications worldwide.
Key Features & Benefits
- Tool-Free Push-in Connection: Install wires 70% faster than traditional screw terminals—simply strip, insert, and secure.
- Global Safety Certifications: Compliant with VDE (Germany), UL (USA), and CE (EU) standards for worldwide acceptance and risk reduction.
- High Reliability & Durability: PA46 (Nylon 46) housing rated UL 94V-0 offers superior heat resistance, aging performance, and electrical insulation.
- Space-Saving SMT Design: Surface-mount technology enables automated PCB assembly and compact board layouts.
Technical Specifications
| Item No. | L01-N1P/N2P/N3P | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 160 | 300 | |
| Rated Current (A) | 9 | 9 | |
| Connection Data | |||
| IEC/EN | UL | ||

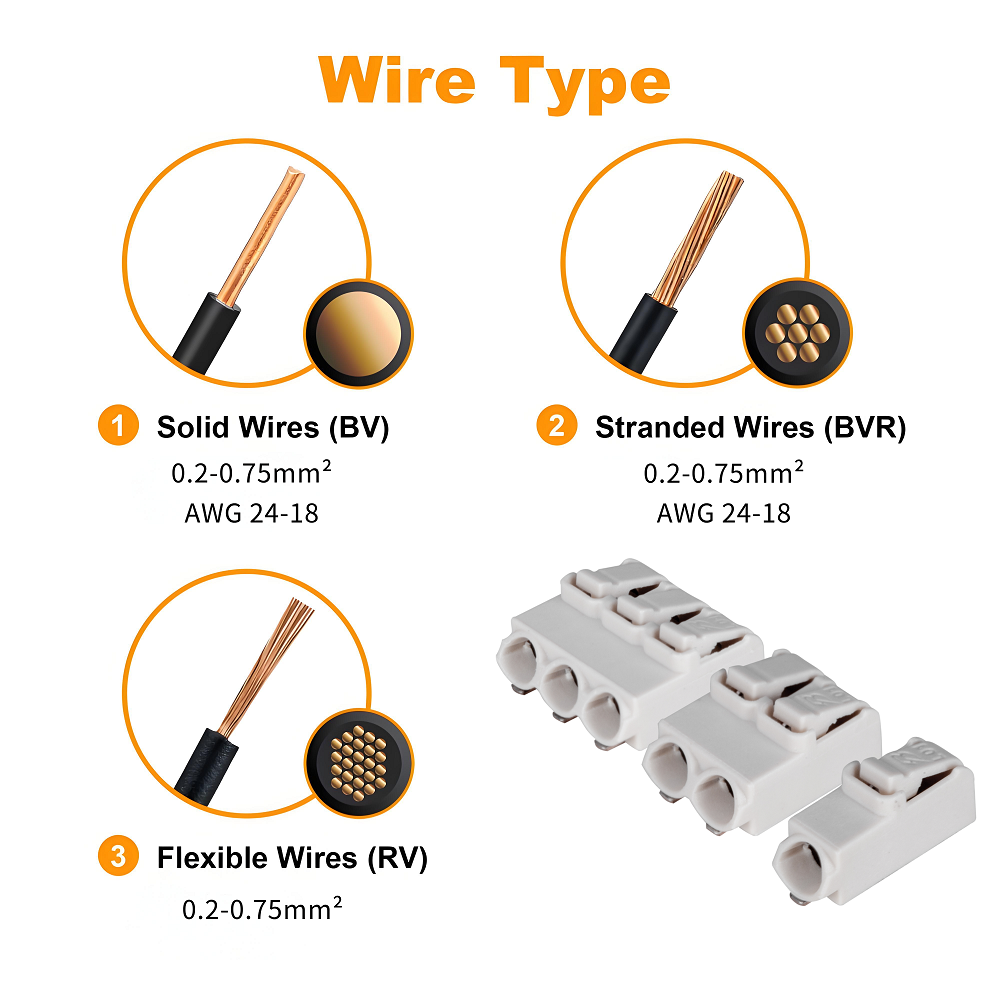

| Cross Section | Solid conductor | 0.2-0.75mm² | AWG 18-24 |
| Stranded conductor | 0.2-0.75mm² | AWG 18-24 | |
| Flexible conductor | 0.2-0.75mm² | - | |
| Strip length (mm) | 8-9 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 1/2/3 | ||
| Means of Fixing | |||
| SMT | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 46 | |
| Flammability class | UL 94V-0 | ||
| Packing Quantity (pcs/carton) | |||
| 13500/9000/6750 | |||
Installation Guide (4-Step Process)
Step 1: Strip Insulation
Using wire strippers, remove 8-9 mm of insulation from the wire end.
Step 2: Insert Fully
Insert the bare conductor straight into the terminal chamber and push until it bottoms.
Step 3: Verify Connection
Gently pull the wire outward to confirm it's securely held by the spring clamp mechanism.
Step 4: Quick Release
To remove wires press the side release button to disengage the clamp.
Target Applications
The BELEKS L01-N Series is primarily designed for integration into Printed Circuit Boards (PCBs), providing a reliable and efficient screwless connection interface for a wide range of electronic and electrical equipment. Key application areas include:
- Industrial Control & Automation: Terminal blocks for PLC modules, I/O interfaces, sensor connectors, and within frequency converters & servo drives.
- Building & Energy Management: Connections in smart switch/outlet PCBs, lighting control modules, HVAC controllers, and circuit breaker auxiliary boards.
- Power Electronics: Internal wiring for LED driver PCBs, AC-DC/DC-DC power supply boards, and inverter circuits.
- Communications & Computing: Signal and power connections in network switch/router motherboards, server power distribution (PDU) boards, and test/measurement instrument PCBs.
- Transportation Electronics: Control unit connections in Vehicle ECU boards, railway signaling control cabinets, and avionics systems.
Frequently Asked Questions (FAQ)
Q1: What wire sizes does the L01-N series accept?
A1: It perfectly accommodates 0.2 - 0.75 mm² (AWG 18-24) solid wires or stranded wires.
Q2: Is this suitable for high-temperature environments?
A2: Yes. The board connector is constructed with PA46 material, which provides excellent thermal stability, making it suitable for demanding industrial applications.
Q3: How can I verify proper wire installation?
A3: Proper installation is verified by ensuring the wire is inserted straight and pushed firmly until it reaches the bottom of the terminal chamber. You can then perform a gentle pull test to confirm it is securely held by the spring clamp.
Q4: Are the terminals reusable?
A4: Absolutely. Designed for multiple re-wiring cycles without losing clamping force. Use the side release button for damage-free wire removal.
Q5: Do you provide samples?
A5: We offer free samples to qualified customers and OEM partners. Please contact us via the website form or email with your requested models and shipping details.
Why Choose BELEKS L01-N?
The BELEKS L01-N Series is more than a terminal block—it's a strategic component that enhances your product's reliability, manufacturing efficiency, and global compliance. We deliver:
- Plug-and-play efficiency that reduces assembly time
- Third-party certified quality that lowers system risk
- Professional technical support and customization options
Contact us today for datasheets, free samples, or customized solution quotes. Experience the BELEKS difference in connection technology.
