Product Name: Heavy - Duty Pneumatic Parallel Three - Claw Gripper

Keywords: High - Force Gripper for Heavy Lifting, Precise Three - Claw Gripper for Machining, Durable Pneumatic Gripper for Assembly

Product Introduction:

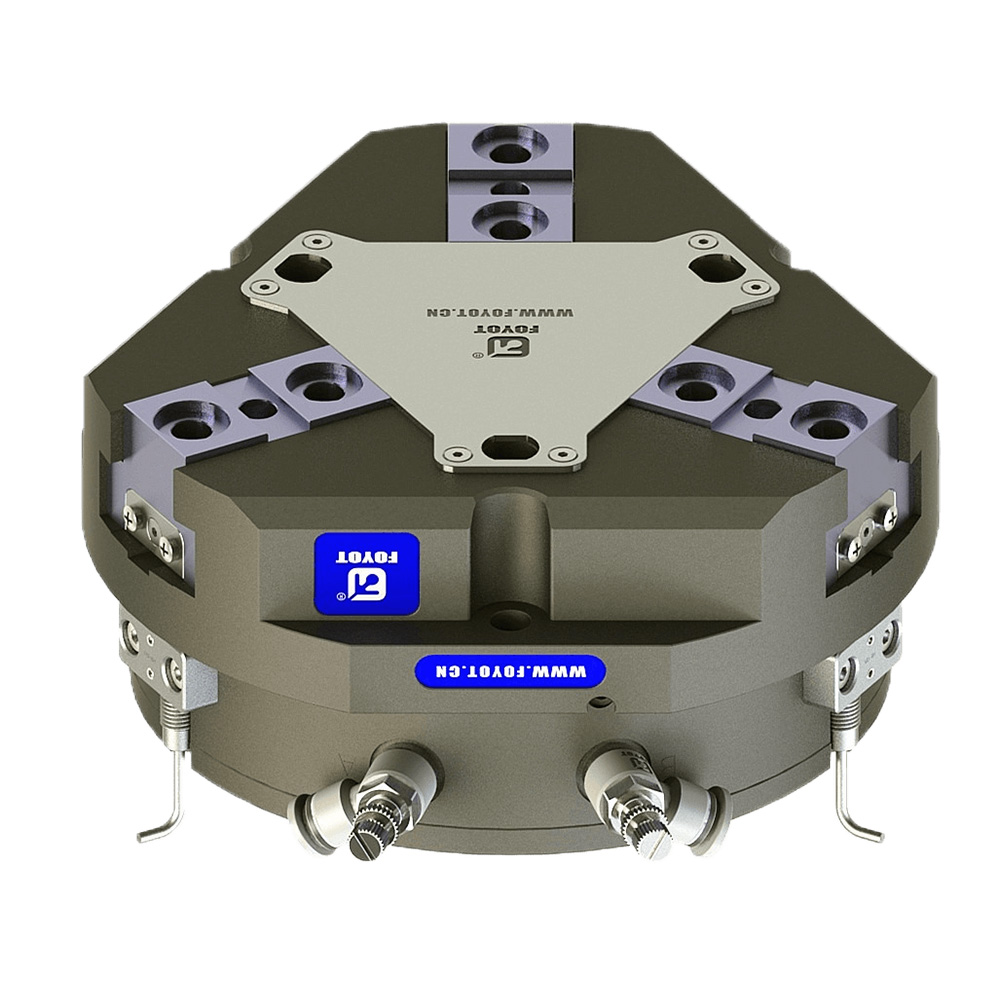

Introducing the Heavy - Duty Pneumatic Parallel Three - Claw Gripper, a robust solution built to tackle demanding tasks in heavy lifting, machining, and assembly applications. This gripper, model FY - JGZ160 - 1, is engineered with strength and precision at its core.

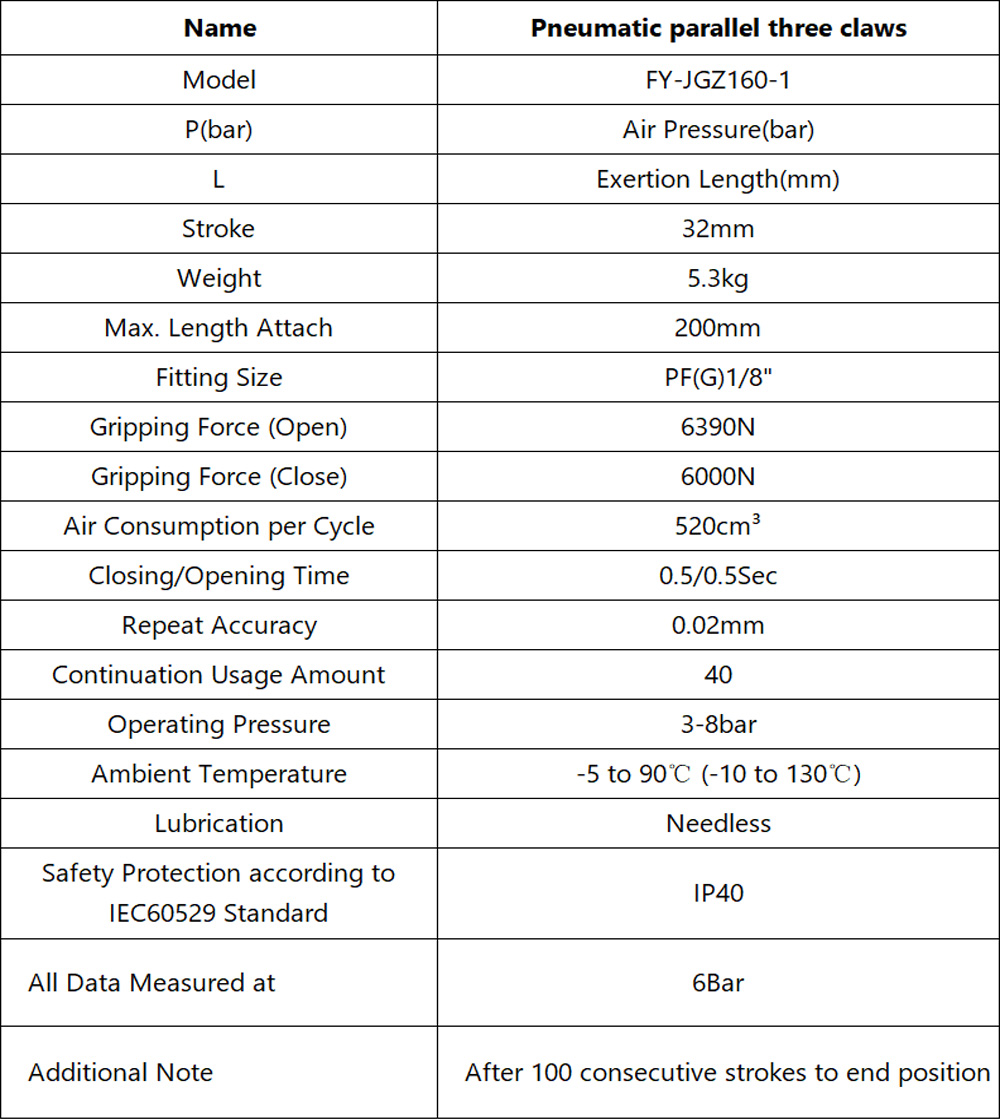

Constructed from high - grade materials, it boasts a durable build that can withstand the rigors of heavy - duty operations. Operating within an air pressure range of 3 - 8 bar, it delivers impressive gripping force—6390N when open and 6000N when closed—enabling it to handle heavy workpieces with ease. With a stroke of 32mm and a repeat accuracy of 0.02mm, it ensures precise handling even for large components.

In heavy lifting scenarios, this high - force gripper excels at securely grasping and moving heavy objects, enhancing efficiency and safety in material handling processes. For machining applications, the precise three - claw gripper holds workpieces firmly, facilitating precise cutting, drilling, and other machining operations.

In assembly tasks, the durable pneumatic gripper proves reliable for a wide range of tasks, from assembly to packaging of heavy items. Weighing 5.3kg and with a maximum attachment length of 200mm, it’s designed for handling substantial workpieces. Air consumption per cycle is 520cm³, and closing/opening times are 0.5 sec each. It operates in ambient temperatures from - 5 to 90℃ (- 10 to 130℃) and requires no lubrication, adding to convenience. With safety protection rated IP40 as per IEC60529, it ensures safe operation in various environments. All in all, this gripper is a vital asset for optimizing heavy - duty industrial operations
