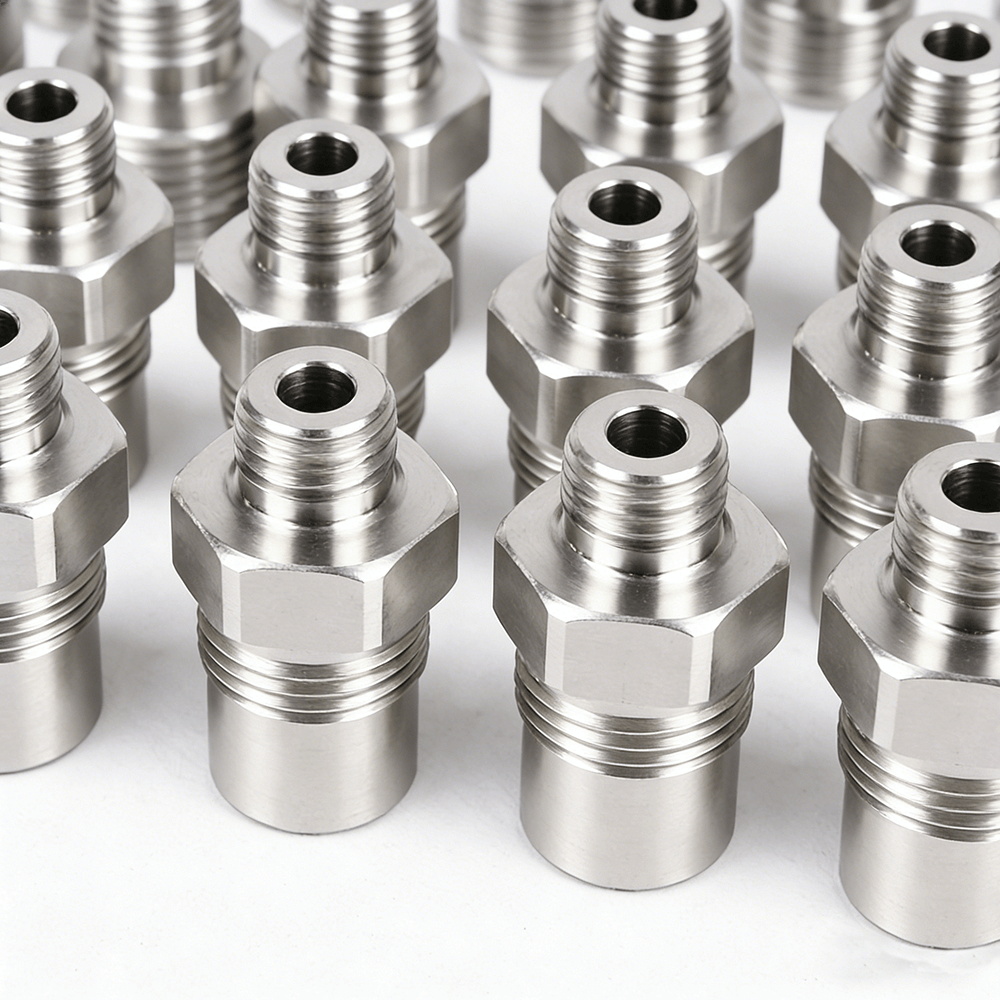

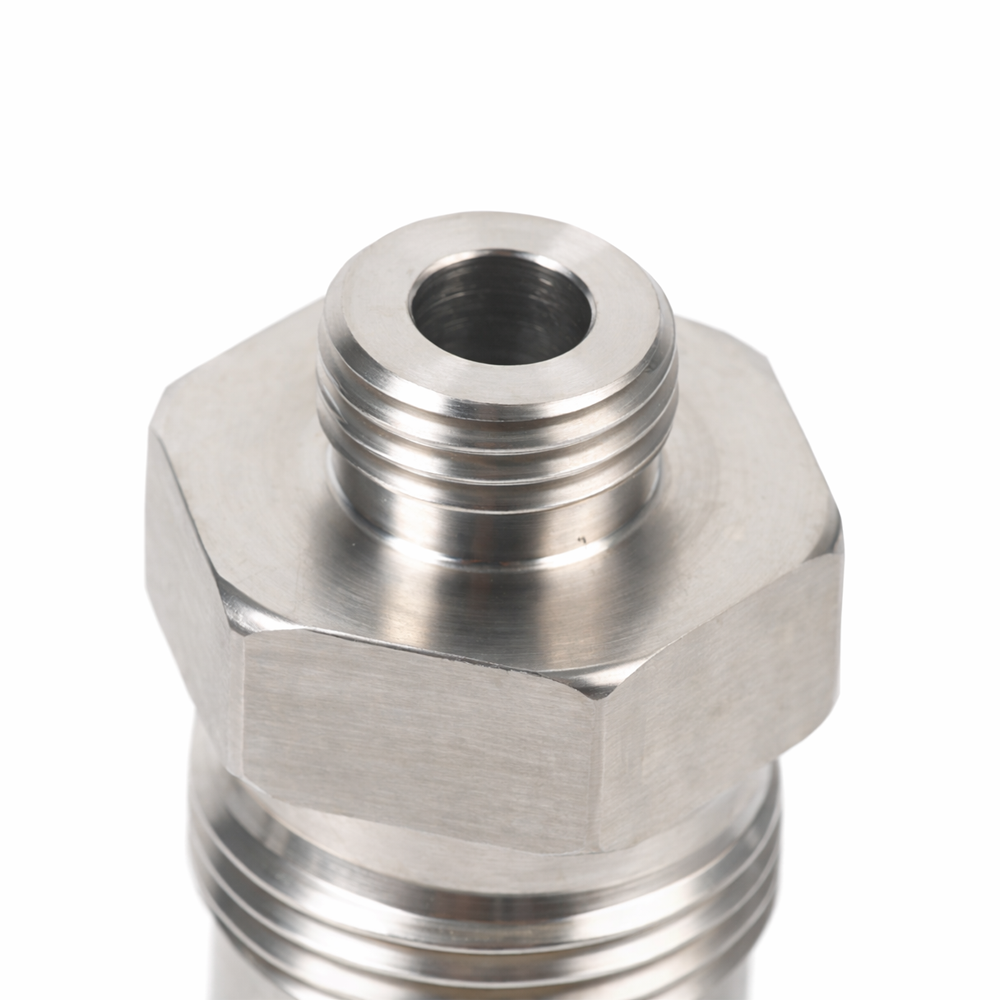

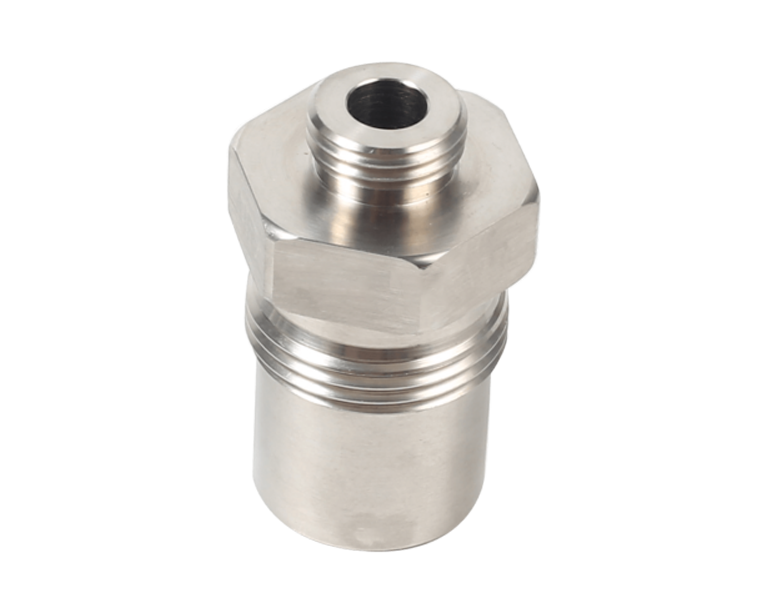

This part is a stainless steel hexagonal threaded adapter, which has an overall axisymmetric structure. It integrates multiple sections of external threads, a hexagonal wrench position, and a central through hole. It is used for reliable connection and conversion in gas, fluid, or instrument systems. The product has high requirements for coaxiality, thread precision, and sealing stability, and it is a typical precision rotating interface part.Why Swiss Turning for This Part?

This part, in terms of structural and precision requirements, highly aligns with the processing advantages of Swiss Turning:

Concentrated multi-section external threads and step structures
A central through hole with high requirements for coaxiality
The hexagonal structure needs to maintain a precise positional relationship with the threads
Small to medium size and strict requirements for batch consistency
Needs to be completed in one clamping to avoid cumulative errors

Through Swiss Turning, all key features can be processed in a single process chain, significantly improving dimensional stability and batch consistency.

Quality Control for key point of size: Detection using digital measuring tools and, when necessary, coordinate measuring machines (CMM) ensures that parts meet the design requirements in terms of functionality, assemblability, and batch consistency.

Detection of thread outer diameter and thread form
Control of inner hole size and coaxiality
Hexagonal opposite side size and position accuracy
Inspection of surface quality and appearance consistency
