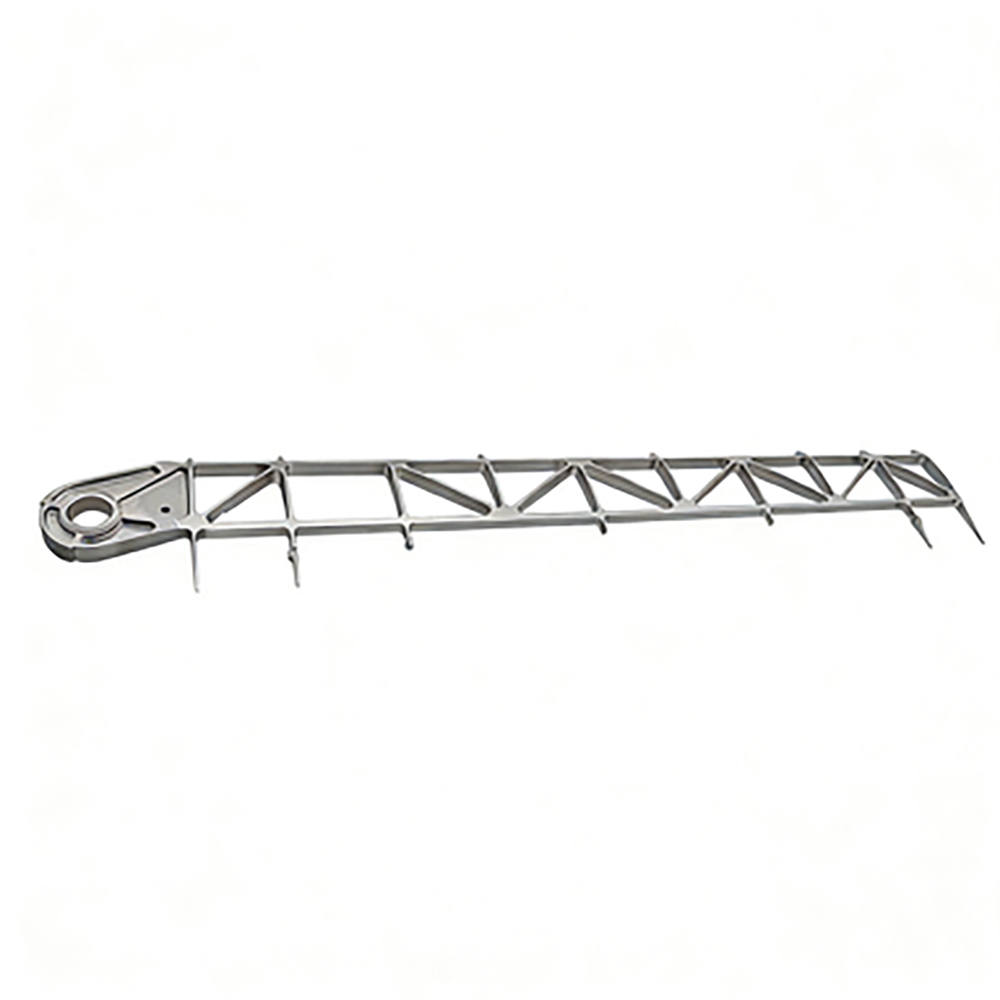

CNC Milling Process for Long-Length Aerospace Wing Rib Components

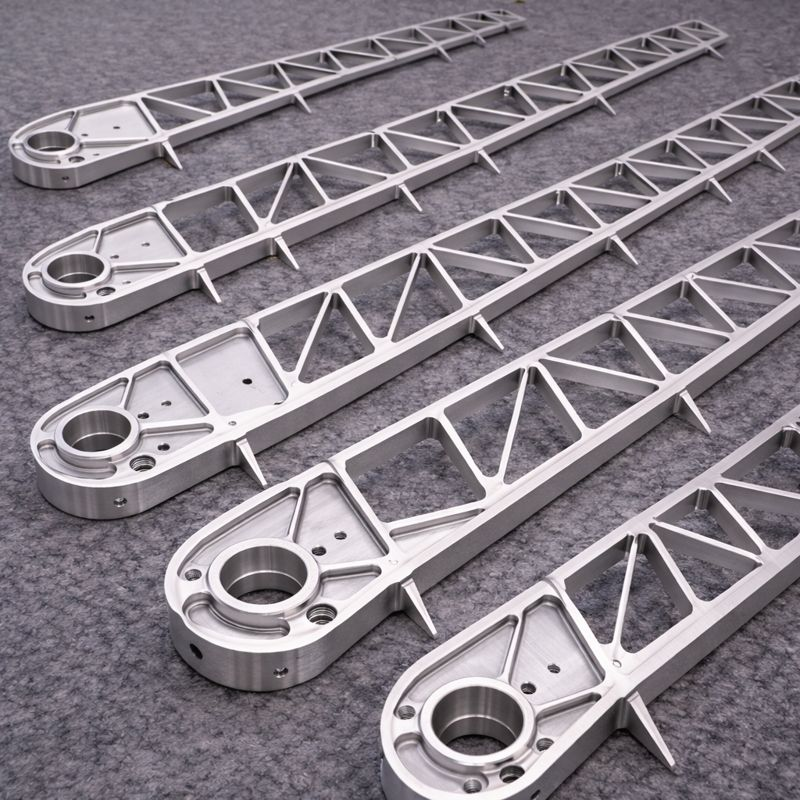

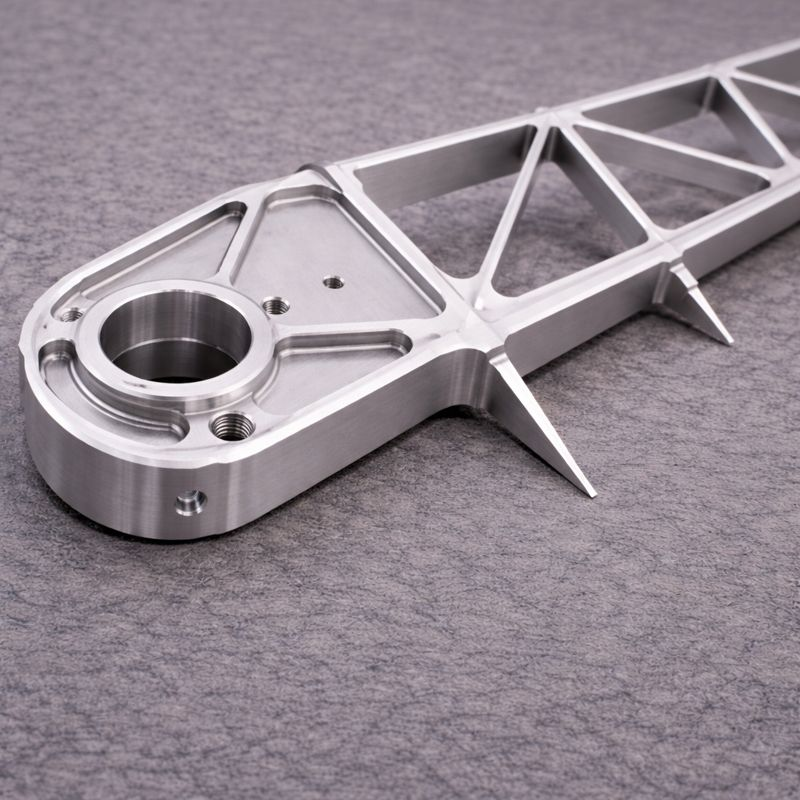

This aluminum wing rib is a long-length, thin-wall aerospace structural component, designed with an open truss geometry to achieve optimal stiffness and weight reduction. Due to its extended length, fine rib features, and high material strength, the part requires a carefully controlled CNC milling process to maintain dimensional stability and structural integrity.

The wing rib is machined from solid aerospace-grade aluminum alloy using precision CNC milling. Special machining strategies are applied to minimize deformation during material removal, including staged roughing, stress-balanced finishing, and optimized tool paths. These methods help control straightness, prevent warping, and ensure consistent wall thickness along the entire length.

precision cnc machined components manufacturer

After CNC machining, the wing rib undergoes surface finishing processes such as natural anodizing, enhancing corrosion resistance while preserving precise dimensions. Burr removal and edge conditioning are performed to meet aerospace surface quality requirements.

Dimensional verification is carried out using coordinate measuring machines (CMM) and precision gauges, with special attention to straightness, rib alignment, and critical interface locations. This ensures consistent quality across batch production and reliable performance in flight structures.

More products, pls check links: More prodcuts, pls check links: CNC Machining parts, aerospace components, die casting machining, precision components etc
