Product details

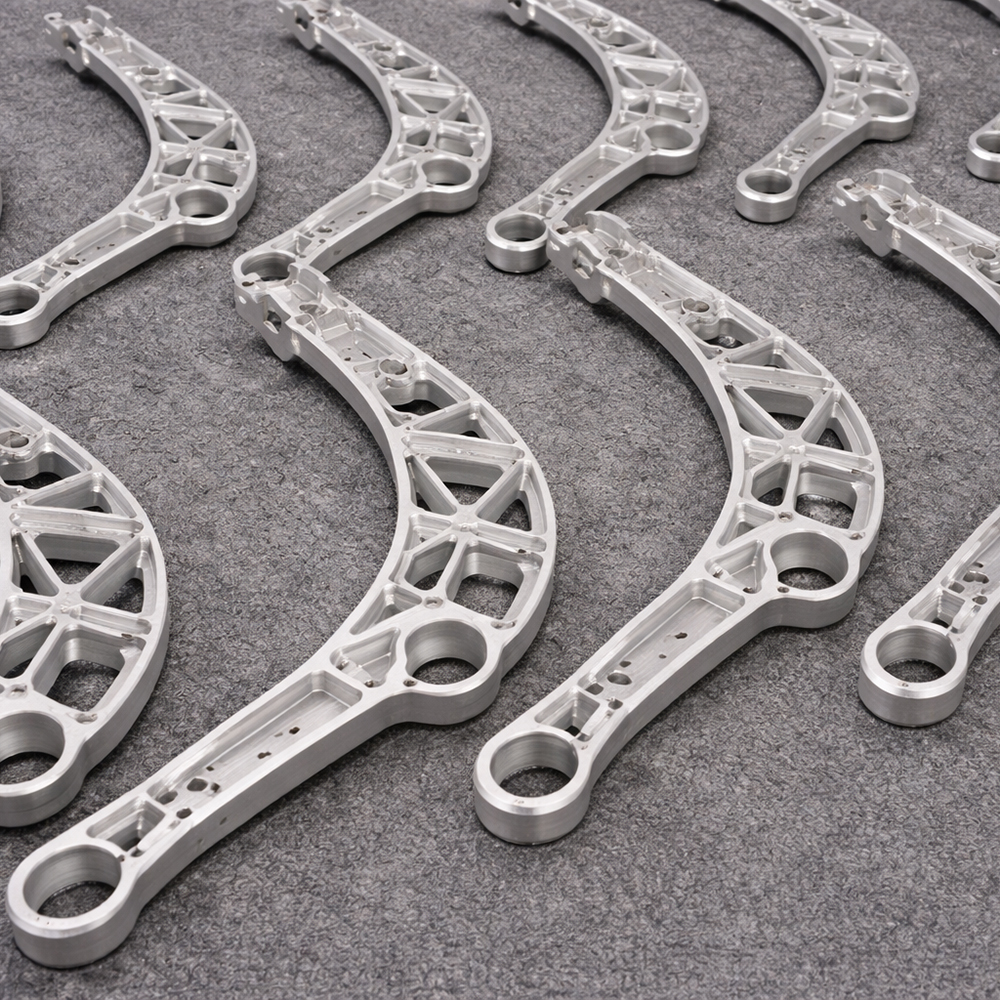

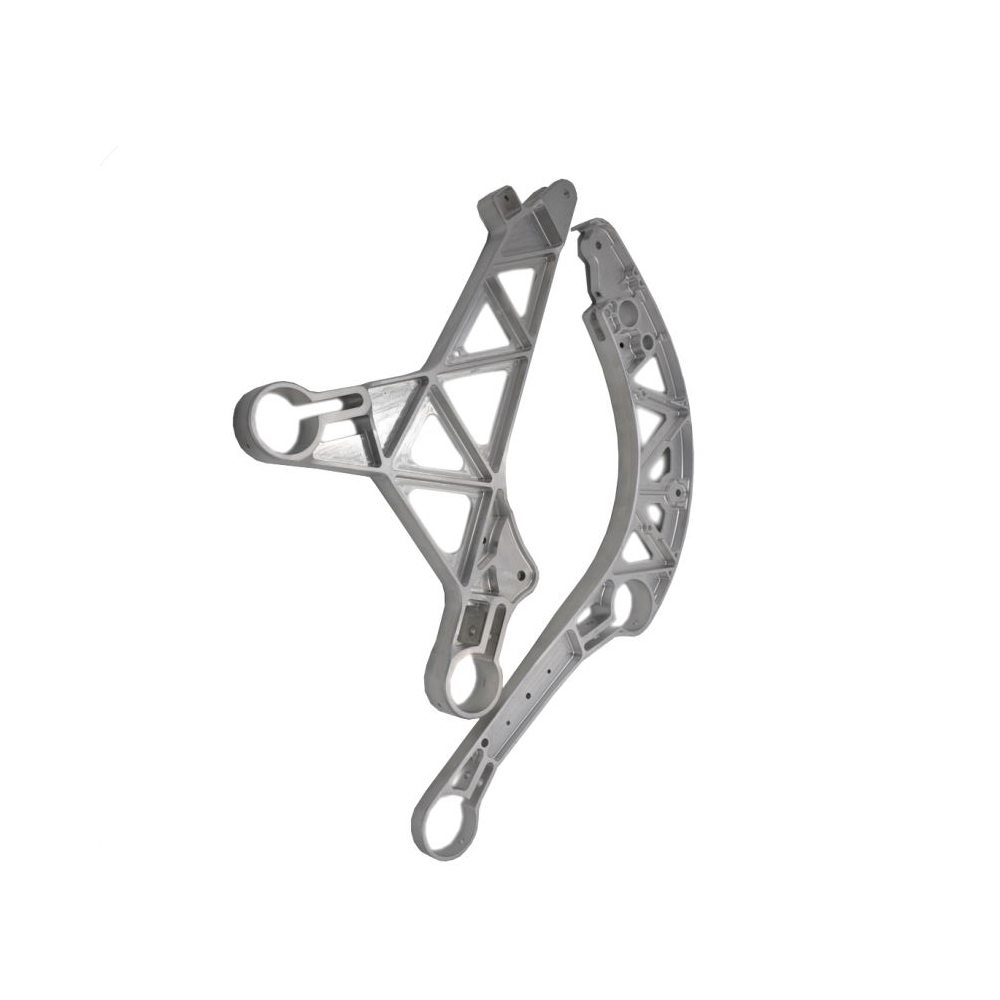

This component is a lightweight aerospace aluminum structural bracket, featuring a complex geometry with internal rib structures and topology-optimized design. The part is manufactured from high-strength aluminum alloy using 5-axis CNC precision machining, ensuring excellent strength-to-weight performance and dimensional accuracy.

The bracket is produced from solid aluminum billet through advanced 5-axis CNC milling. This process allows simultaneous multi-directional cutting, enabling the machining of complex contours, internal triangular ribs, and multi-angle mounting features in a single setup. Compared to conventional machining, 5-axis CNC significantly reduces repositioning errors and improves geometric consistency.

This type of aerospace structural bracket is commonly machined from Aluminum 7075-T651, a high-strength aluminum alloy widely used in aviation applications due to its excellent mechanical properties, fatigue resistance, and machinability. Alternative materials such as 7050 or 6061-T6 may be used for non-primary load-bearing designs.

After machining, the parts can be treated with natural anodizing, black anodizing, or chemical conversion coating to enhance corrosion resistance and surface durability while maintaining dimensional stability. All surface treatments comply with aerospace and industrial standards.

Critical dimensions, including bearing bores, mounting holes, and interface surfaces, are inspected using Coordinate Measuring Machines (CMM) and precision gauges. This ensures tight tolerances, repeatable quality, and reliable performance for aerospace and high-end structural applications.

This CNC machined aluminum structural bracket is widely used in:

Aircraft seat structures and interior assemblies
Aerospace and aviation structural components
Lightweight transportation systems
High-end mechanical and ergonomic support systems
