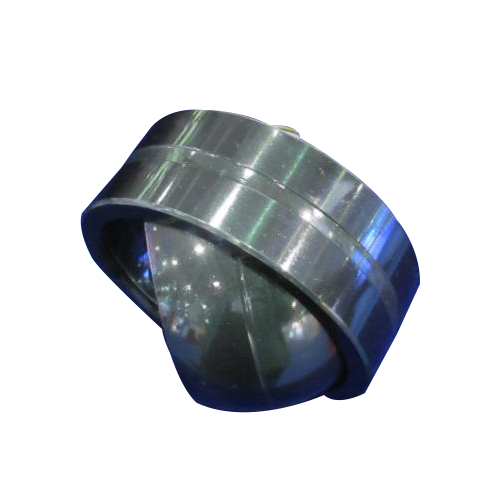

Radial Spherical Plain Bearing

2 month ago

12 0 

Dalian Redmay bearing import & Export Co., Ltd.

7 month

Product details

Radial Spherical Plain Bearing: High Performance, Long Life, Low Friction Solutions for Industrial Applications The Radial Spherical Plain Bearing is a high-performance radial spherical bearing designed to meet the demands of heavy-duty industrial applications. Engineered with precision and durability in mind, these bearings provide long life radial spherical plain bearings that ensure smooth operation even under extreme conditions. Their low friction radial spherical bearings design reduces energy consumption and enhances efficiency, making them ideal for a wide range of mechanical systems. This product offers an optimal balance between performance, reliability, and longevity, making it a preferred choice for engineers and manufacturers seeking reliable radial spherical bearings. Whether used in machinery, automotive components, or industrial equipment, these bearings deliver consistent results over time. The advanced materials and manufacturing techniques employed in their construction contribute to their exceptional resistance to wear and tear, ensuring extended service life. Key characteristics of this radial spherical plain bearing include its ability to handle both radial and angular loads, its compatibility with various lubrication methods, and its suitability for applications requiring minimal maintenance. The bearing’s robust construction allows it to perform effectively in environments where high levels of vibration, shock, or misalignment are present. Its low friction radial spherical bearings design minimizes heat generation, reducing the risk of premature failure and extending operational lifespan. In terms of detailed description, the radial spherical plain bearing features a spherical inner ring that allows for self-aligning capabilities, which helps maintain proper alignment even when subjected to dynamic forces.

This makes it particularly useful in applications where precise positioning is not always possible. The bearing’s outer ring is typically made from high-quality steel, providing excellent load-bearing capacity and resistance to deformation. Additionally, the surface finish and internal geometry are optimized to reduce friction and improve overall performance. The use of radial spherical bearings is widespread across industries such as agriculture, construction, mining, and transportation. These bearings are commonly found in excavators, bulldozers, cranes, and other heavy machinery where their ability to handle high loads and accommodate misalignment is crucial. In the automotive sector, they are used in suspension systems, steering mechanisms, and other critical components that require smooth and reliable motion. Their versatility also makes them suitable for conveyor systems, wind turbines, and robotic arms, where continuous and precise movement is essential. Users have consistently praised the radial spherical plain bearing for its reliability, ease of installation, and long service life. Many report that the low friction radial spherical bearings significantly reduce maintenance requirements and downtime, leading to improved productivity and cost savings. Engineers appreciate the bearing’s ability to perform consistently in harsh environments, while operators value its quiet operation and minimal noise levels. The feedback highlights the importance of choosing high-performance radial spherical bearings that can withstand the rigors of demanding applications. Frequently asked questions about the radial spherical plain bearing often revolve around installation, maintenance, and compatibility with different systems. It is recommended to follow manufacturer guidelines for proper installation and lubrication to maximize performance and lifespan.

Regular inspections and timely maintenance can help identify potential issues before they lead to failures. When selecting the right radial spherical bearing, factors such as load capacity, operating speed, and environmental conditions should be considered to ensure optimal performance. For those looking for a durable, high-performance solution, the radial spherical plain bearing stands out as a reliable choice. Its combination of strength, flexibility, and efficiency makes it an essential component in many industrial and mechanical systems. Whether you need long life radial spherical plain bearings for a critical application or low friction radial spherical bearings to enhance system performance, this product delivers on all fronts. With its proven track record and user satisfaction, it continues to be a trusted option for professionals across various industries worldwide.

Differences Between Radial Spherical Plain Bearings and Cylindrical Roller Bearings

Although both radial spherical plain bearings and cylindrical roller bearings serve as support components in mechanical transmission, they differ essentially in structural design, motion form, load-carrying characteristics, and application scenarios. The specific differences are as follows:

In terms of core structure and motion principle, the two types of bearings are significantly different. Cylindrical roller bearings consist of an inner ring, an outer ring, cylindrical rollers, and a cage. The raceways of the inner and outer rings are flat annular tracks, and the rollers perform pure rolling motion along the raceways. Loads are transmitted through line contact between the rollers and raceways. They have a high degree of standardization in structure, and some models allow the inner or outer ring to be separated. By contrast, radial spherical plain bearings are composed of an inner ring (inner spherical ring) and an outer ring (outer spherical ring). Their core is a sliding friction pair between the inner and outer spherical surfaces—the outer surface of the inner ring is a convex spherical surface, and the inner surface of the outer ring is a concave spherical surface. The two rings realize relative rotation through spherical contact, with no components such as rollers or cages. Their structure is simpler, but their motion form relies on spherical sliding.

In terms of load-carrying capacity and load adaptation range, the two types of bearings are suitable for completely different scenarios. Cylindrical roller bearings mainly bear radial loads and have strong radial load-carrying capacity (due to the large line contact area). Models with flanges can bear a small amount of unidirectional axial load, while flange-less models cannot bear axial load at all. They are sensitive to the direction of the load and can only adapt to stable radial forces. Radial spherical plain bearings, however, can bear radial loads and a small amount of axial load simultaneously (usually the axial load does not exceed 0.5 times the radial load). They also have excellent "self-aligning" and "angular compensation" capabilities—thanks to the spherical contact design, they can allow a large angular deviation between the inner and outer rings (generally allowing an angular deviation of 1°-3°, and some models can reach more than 5°). This can alleviate load eccentricity caused by installation deviations, shaft deflection, or vibration, enabling stable operation even in scenarios where the load direction changes dynamically.

In terms of friction form and performance, the differences between the two are obvious. Cylindrical roller bearings rely on rolling friction, with a low friction coefficient (usually between 0.001 and 0.005). They generate little heat and experience minimal wear during operation, and have a high limiting speed, making them suitable for high-speed, stable operation scenarios with long maintenance intervals. Radial spherical plain bearings, on the other hand, rely on sliding friction, with a relatively high friction coefficient (up to 0.1-0.3 under dry friction, and can be reduced to 0.01-0.05 with good lubrication). They tend to generate more heat and experience relatively faster wear during operation, and their limiting speed is much lower than that of cylindrical roller bearings (usually only suitable for low-speed operation, with a speed generally not exceeding 1000 r/min). Regular lubrication is required to reduce wear, resulting in a higher maintenance frequency.

In terms of application scenarios, the two types of bearings are highly targeted. Cylindrical roller bearings are widely used in high-speed, heavy-load, and stable-load equipment such as motors, gearboxes, machine tool spindles, and automobile gearboxes. Their core requirement is to "efficiently transmit radial forces + achieve high-speed stable operation". Radial spherical plain bearings, however, are mostly used in low-speed, heavy-load scenarios where installation deviations exist or the load direction changes—such as construction machinery (excavator bucket joints, crane luffing cylinder hinge points), mining machinery (crusher connecting rod supports), and textile machinery (swing mechanisms). Their core requirement is to "compensate for angles + withstand eccentric loads", making them particularly suitable for swinging or low-speed rotating components under harsh working conditions.

In addition, there are differences in lubrication and maintenance requirements. Cylindrical roller bearings require regular replenishment of grease or lubricating oil to maintain the low-resistance state of rolling friction, and have high requirements for lubrication cleanliness (impurities can easily cause roller jamming). Radial spherical plain bearings, on the other hand, need to focus on ensuring the lubrication of the spherical contact pair. In some working conditions, self-lubricating materials (such as spherical plain bearings inlaid with solid lubricants) must be used to adapt to outdoor or heavy-duty equipment scenarios where frequent maintenance is difficult.
