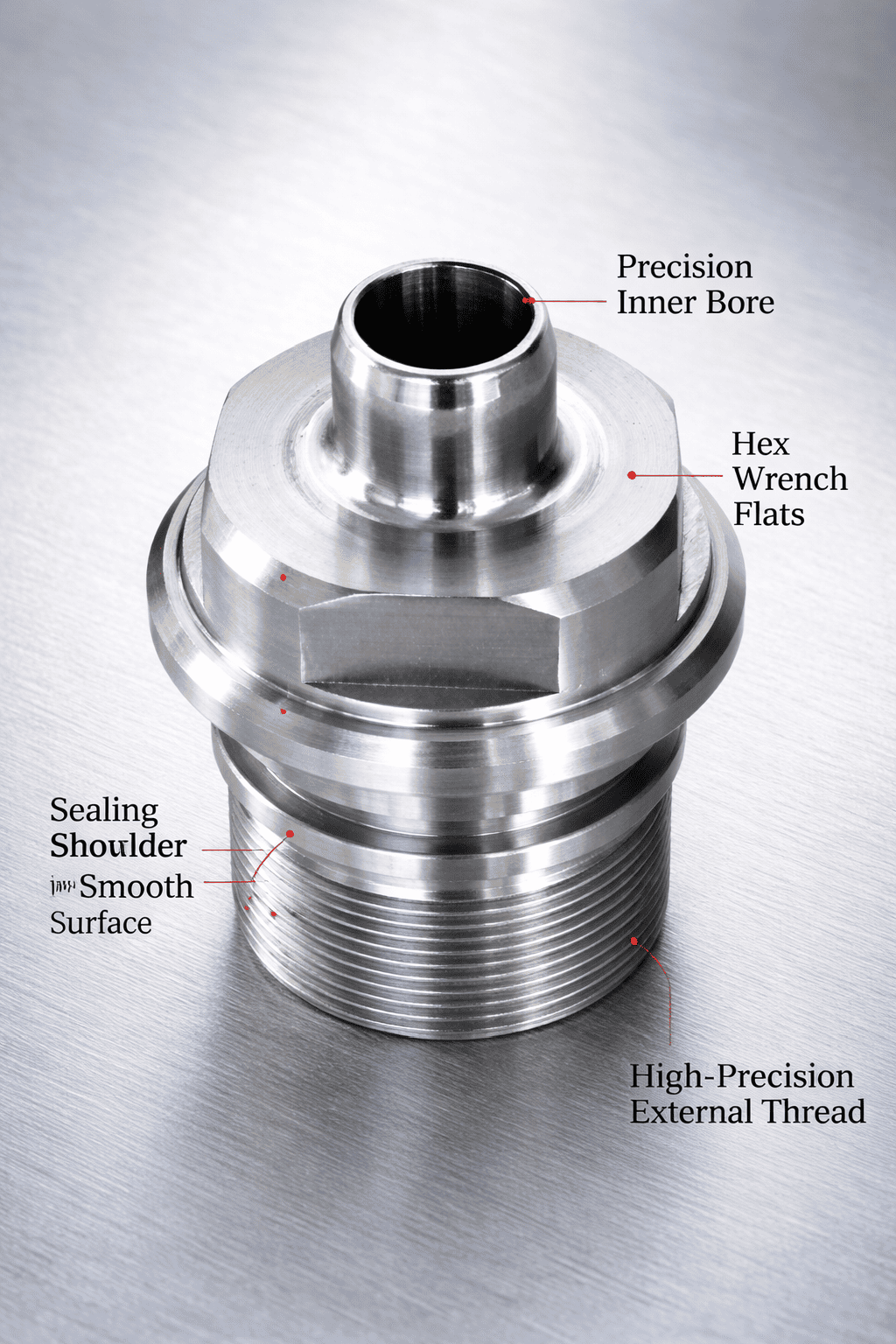

This part is a multi-step functional shaft part manufactured by precision CNC turning. It integrates a sealing groove, radial flow channel, and assembly positioning structure. It is widely used in fluid and gas control systems in the aerospace, military, and industrial automation fields, and has high requirements for machining accuracy, sealing reliability, and long-term stability. CNC turning as the main process + drilling / milling as auxiliary processes. Typical process route:

Bar stock cutting (aluminum/stainless steel / alloy steel)
One-time clamping of CNC lathe:Outer circle,multi-level steps,Inner hole (if any),Circular sealing groove.
Radial hole machining: Side stepping / Cross hole,CNC turning-milling combination is better
Hexagonal position machining: Turn-mill composite forming,or secondary milling
Deburring (especially at orifices and notches) and Surface treatment / Cleaning.

After manufacturing, these precision functional shafts require targeted dimensional and functional testing to ensure sealing performance and operational reliability in fluid or gas systems. Testing priorities include multi-stage outer diameter step dimensions and coaxiality relative to the axis, guaranteeing stable guiding and positioning during assembly.

Special attention is paid to the position, width, and fillet transition of seal grooves to ensure uniform force distribution on sealing elements under operation, eliminating local extrusion or leakage risks. For radial cross holes, check hole diameter, position accuracy, and orifice chamfering to prevent burrs from affecting medium flow or sealing reliability.

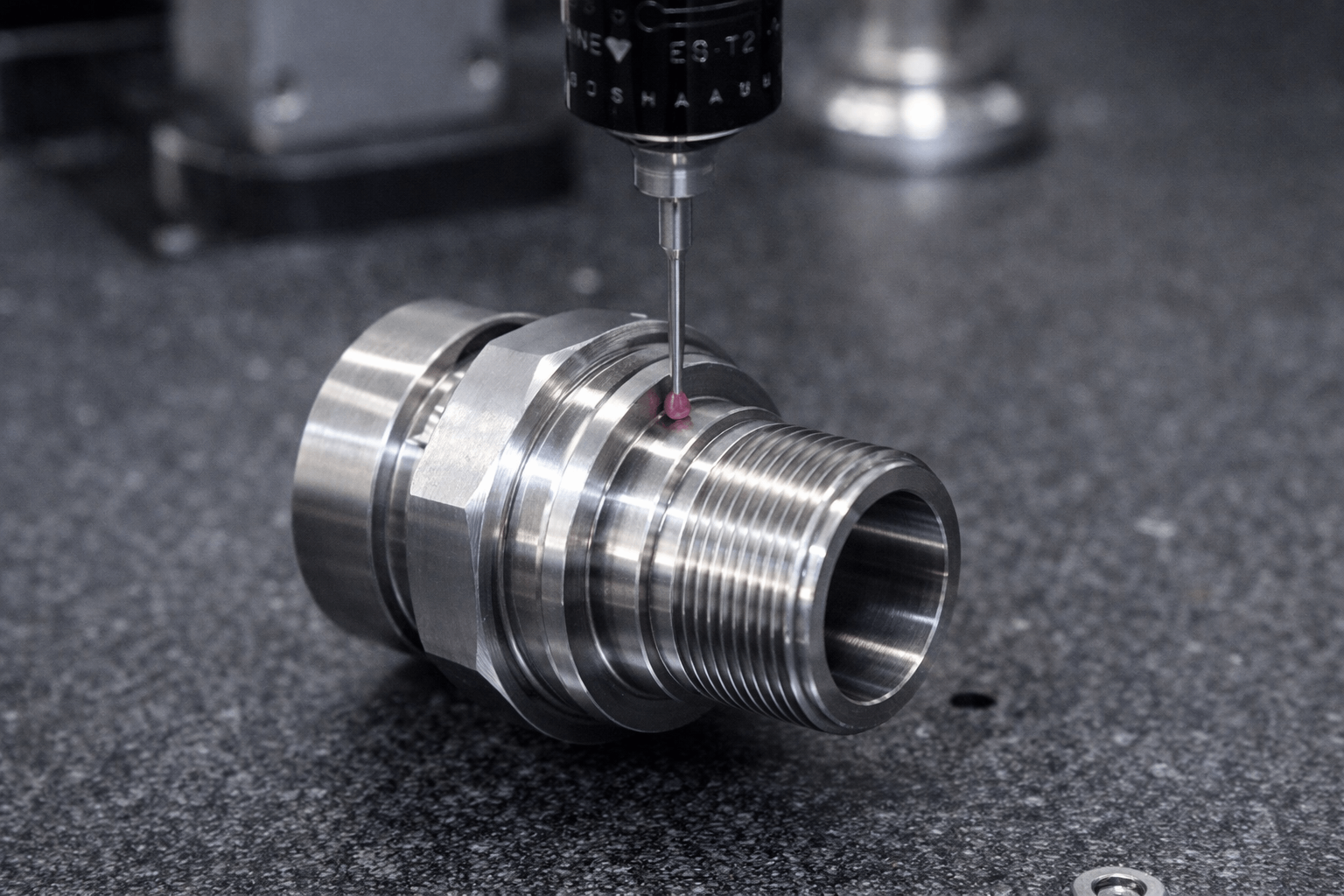

Key dimensions and geometric tolerances are verified via Coordinate Measuring Machine (CMM); where necessary, dedicated gauges are used to recheck assembly fit dimensions. Surface quality is inspected concurrently during testing to ensure functional surfaces are free of scratches, dents, or machining defects. All test results are documented and archived to meet product quality control and traceability requirements.

More products, pls check links: CNC machining parts, Aerospace components,Optomechanical Components,5 Axis Cnc Machining etc.
