Valve Body / Manifold Block CNC Machining

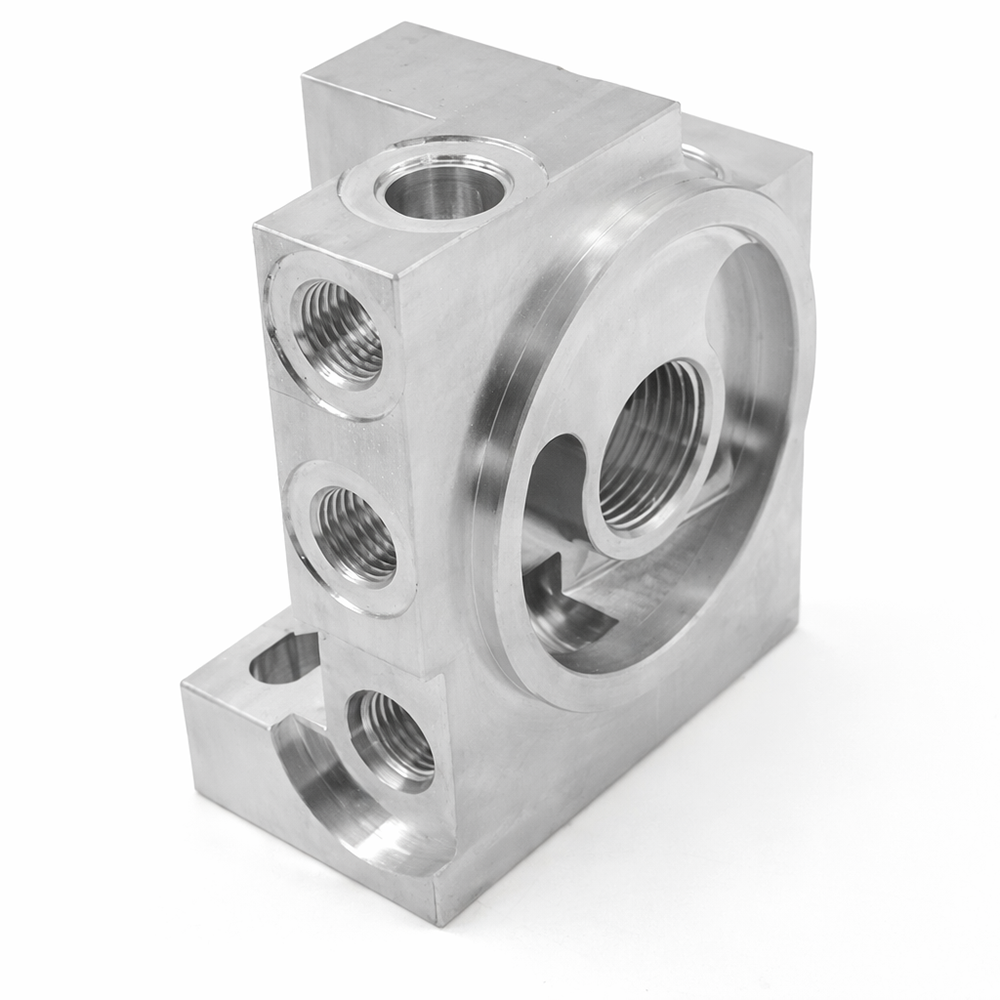

High-Precision CNC Machining for Multi-Port Valve Bodies

We offer custom CNC machining services for valve bodies and manifold blocks, producing complex, pressure-bearing components with multiple threaded ports and internal flow channels.

Our machining solutions are designed for hydraulic, pneumatic, and industrial fluid systems, where dimensional accuracy, sealing integrity, and flow consistency are critical.

Valve bodies and manifold blocks are not simple housings — they are functional fluid control components that integrate ports, cavities, and internal passages into a single precision-machined block.Key characteristics include:

Multi-directional threaded ports
Internal flow paths and cross-drilled channels
Precision valve cavities and mounting surfaces
Structural rigidity for pressure-bearing applications

Each feature must be machined with strict positional accuracy to ensure proper fluid distribution and sealing.

CNC Machining Processes We Use

1, Multi-Axis CNC Milling: Full block machining from solid aluminum billets; Multi-face milling with controlled flatness and perpendicularity; Precision pocketing and cavity machining;

Consistent edge finishing and chamfer control;

2, Precision Drilling & Threading: Deep drilling and intersecting flow channels; Internal threads (Metric, BSP, NPT, or custom standards); Counterbores and stepped holes for fittings and plugs; Accurate port-to-port positional tolerance

3, Internal Channel Sealing: Cross-hole sealing with threaded plugs; Clean internal transitions to minimize flow resistance; Optimized machining sequence to avoid misalignment.

Inspection & Dimensional Control. Valve bodies require comprehensive inspection due to their complex geometry:

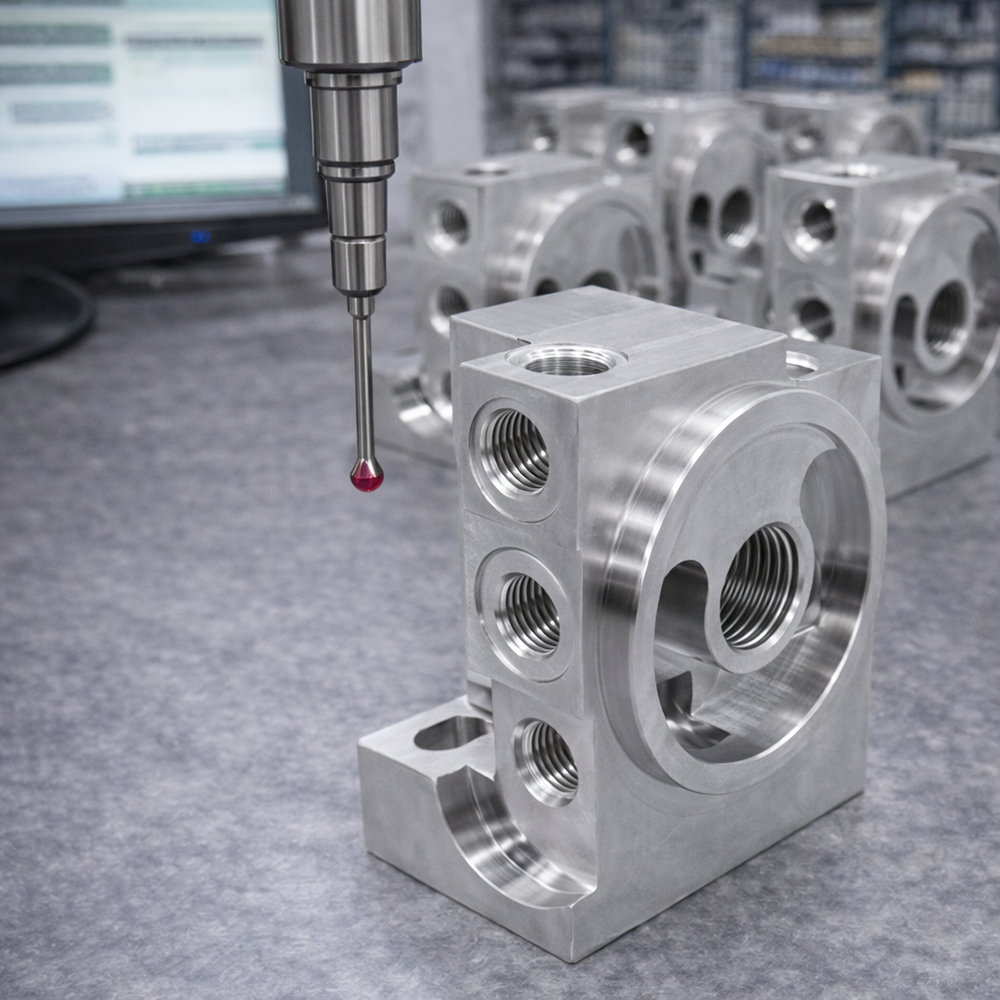

CMM inspection with multi-datum referencing
Port location and true position verification
Flatness and parallelism checks
Thread inspection using gauges
Optional leakage or pressure testing

Each part is verified to ensure reliable fluid routing and assembly compatibility.

Our CNC machined valve bodies and manifold blocks are commonly used in:

Hydraulic valve assemblies
Pneumatic control systems
Industrial automation equipment
Fluid distribution and routing systems
Energy, machinery, and process control applications

Why Work With Us for Valve Body Machining?

Strong experience in multi-port and multi-channel designs
Stable quality for small batches and serial production
Excellent control of hole position and sealing surfaces
Support for custom designs and engineering drawings
Reliable delivery for industrial supply chains

We provide CNC machining services for valve bodies and manifold blocks, delivering precision-milled components with multiple threaded ports and internal flow channels for hydraulic and fluid control systems.
