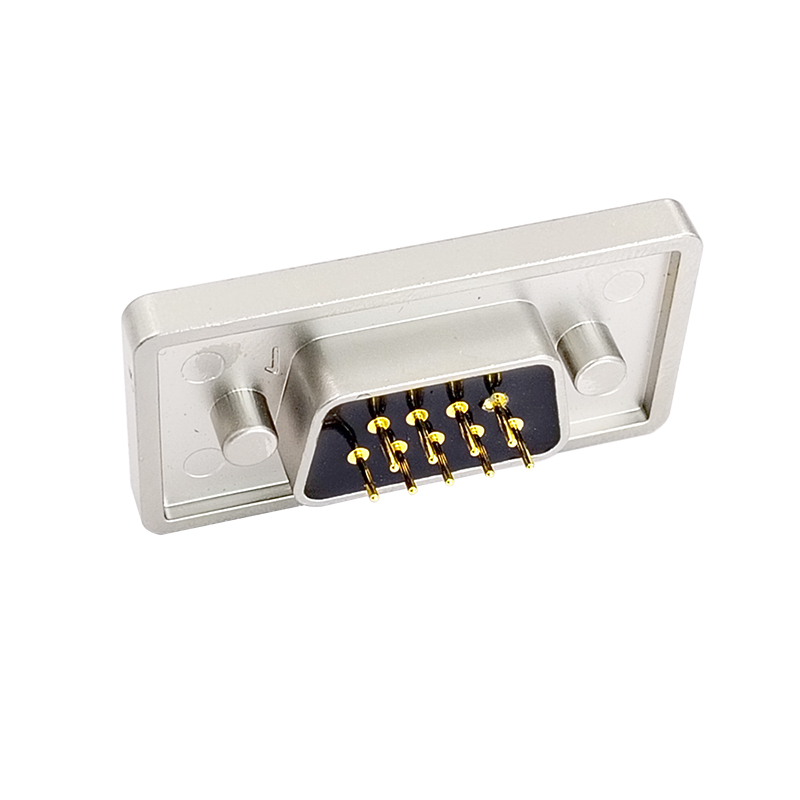

DP9-7 sub connector

waterproof d connectors DP9 Couplers: Reinventing the New Benchmark for Connectivity in Harsh Environments



In industrial communications, outdoor equipment, and intelligent manufacturing, metal connectors have long been the core components of signal and current transmission. However, ordinary metal connectors on the market generally have problems such as waterproofing shortcomings, sealing failure, and insufficient weather resistance, which are difficult to adapt to complex working conditions such as wet, spraying, and dust. 9 pin d sub connector waterproof d connector, breaking the design limitations of traditional metal connectors, has exclusive waterproof structure, fine materials and integrated protection as the core, achieving the perfect fusion of mechanical and waterproof performance, and becoming a high-end adaptable choice that distinguishes conventional metal connector.



Waterproof protection: break through routine and say goodbye to leakage hazards



Most of the ordinary metal connectors only do basic dust prevention treatment, there is no professional waterproof design, the joint cracks in the housing and the interface are very easy to seep in water vapor and oil pollution, and long-term use is prone to internal short circuits and contact corrosion, and it is completely unable to cope with wet, spraying and outdoor rain scenes.



DP9 metal waterproof connector equipped with ip67 connector grade professional waterproof sealing system, The dual design of screw tightening + double fluoride rubber sealing circle is used, the main sealing sphere firmly seals the core interface, the auxiliary sealing corner blocks fine dust and residual water vapor, and the grooved sealing installation process avoids the sealing joint displacement and damage during insertion, and completely eliminates the risk of gap water seepage. According to testing, it can be immersed in 1 meter of water for 30 minutes without any droplets intruding, even in the face of a harsh environment of high humidity, rain spray and dust, and can always keep the internal components dry, resolving the industry pain point of traditional metal connector water resistance ineffective at the root.9 pin d sub connector  is PANDI’s primary product.



Structural design: proprietary optimization, stability and ease of use



Conventional metal connectors have a single structure, the enclosure is mostly simple to join, and the tightening method is rough. Not only is the waterproofability poor, but the connection is easy to loose under vibration and pulling conditions, which affects the transmission stability; The interface is poorly adapted and the installation and debugging is tedious.



9 pin d sub metal waterproof connector adopts a whole metal shell molding process, no unnecessary splicing gap, not only strengthened the structure of the compression and impact resistance, and further prevent water vapor penetration.The standard interface of type D is precisely positioned, effectively prevents misinserting, and is accompanied by a straight-insert screw locking structure, with 8-10 N · m locking torque to ensure that the connection is tight, and no loosening occurs in high vibration industrial scenarios. At the same time, it is compatible with a variety of installation methods such as wire welding, PCB direct insertion, etc., and adapts to different equipment wiring requirements, which is convenient and versatile, far exceeding the single structure adaptability of ordinary metal connectors.



Material processes: meticulous selection, durability across the board.



Ordinary metal connectors mostly use ordinary iron enclosures, with only simple coating on the surface, which is easy to oxidize and rust, the contact material is inferior, the conductivity is poor, the wear after repeated insertion is severe, and the service life is short. Insulation materials are not sufficiently flame retardant and high temperature resistant, and there are safety hazards.



The DP9 metal waterproof connector is completely upgraded in materials, the enclosure uses thick SPCC cold-rolled steel, and the surface is precision nickel plated, which greatly improves oxidation, corrosion and salt spray resistance. It will not rust and fade in long-term use in humid and acid-base environments. The contact is made of high-precision brass gilding material, which not only has excellent conductivity and zero loss of signal transmission, but the resistance to insertion far exceeds the industry standard, and repeated insertion still maintains a stable contact.The internal insulation core uses UL94-V0 grade PBT material, which is resistant to high temperature and flame retardant insulation, and is suitable for wide temperature working environments - 55 ° C - 125 ° C. It can operate steadily whether it is extremely cold outdoor or high temperature workshops, and the durability is more than three times that of ordinary metal connectors.



Scenario adaptation: precision segmentation to cover the needs of the whole scenario



Traditional metal connectors can only meet indoor dry and vibration-free basic work conditions, and the application scenario is extremely limited, and cannot be adapted to complex environments such as industrial sites, outdoor equipment, and in-car communication.
