The d sub connector 26 pin :

The HDB26 is a premium Micro d sub connector crafted with a rugged, thickened metal housing and featuring 3 rows of solid, gold-plated machined pins. These pins are built for durability—impact-resistant and wear-resistant—while providing superior EMI shielding to ensure stable, interference-free signal transmission. Manufactured from eco-friendly materials that withstand extreme temperatures, the 26 pin hd d sub connector fully complies with EU environmental standards.

Internally, gold-plated contacts offer excellent conductivity and oxidation resistance, maintaining optimal connection even after repeated mating cycles, effectively extending the product's service life. The male and female waterproof d connectors mate with high precision. Featuring a dual-sealing design with silicone gaskets and waterproof cable clamps, it delivers maximum sealing performance. The 180° solder-cup termination allows for easy installation and versatile adaptability.

Key Specifications & Features:

Robust Performance: 26-pin configuration with solid gold-plated pins, rated for 5A current, ensuring robust signal transmission.

IP67 Waterproof Rating: Provides comprehensive dust and water protection. It withstands immersion in 1 meter of water for 30 minutes without leakage,eliminating moisture and dust ingress.

Harsh Environment Ready: Perfectly suited for outdoor, industrial, automotive, and marine applications.

Customization: Gold plating thickness can be customized from 1-5µ" (micro-inches) to meet specific requirements.

Widely recognized as a top choice for waterproof D-Sub solutions, the 26 pin d sub connector female is designed to meet the demands of severe weather conditions and has earned consistent acclaim from our clients.

Product Specifications:

Connector Type: HDB26 Pin (Male) / Socket (Female)

Housing Material: Zinc Alloy (Nickel Plated or Black Oxide Finish)

Protection Grade: IP67 / IP68 (Optional)

Contact Type: Machined Contacts, Full Gold Plated

Rated Current: 5A Per Contact

Rated Voltage: 250V AC/DC

Contact Resistance: ≤ 10 mΩ

Insulation Resistance: ≥ 1000 MΩ

Operating Temperature: -40℃ ~ +105℃

Locking Method: 4-40 UNC Thread / Wing Screw / Hand Twist Knob

Termination Style: Solder Type / Crimp Type / PCB Type / Overmolded Cable Assembly

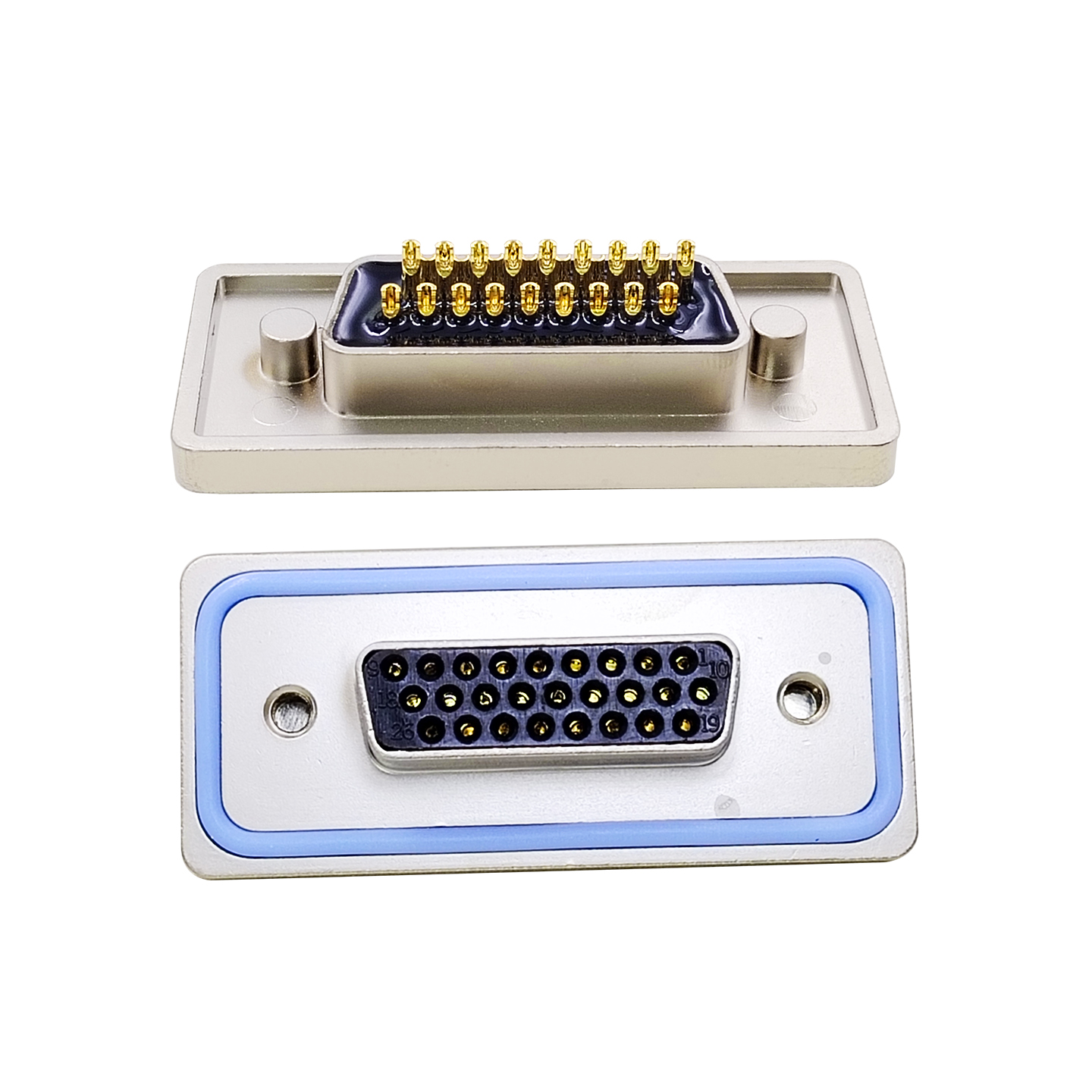

Metal Waterproof HDB26 Female ip67 d sub connector
