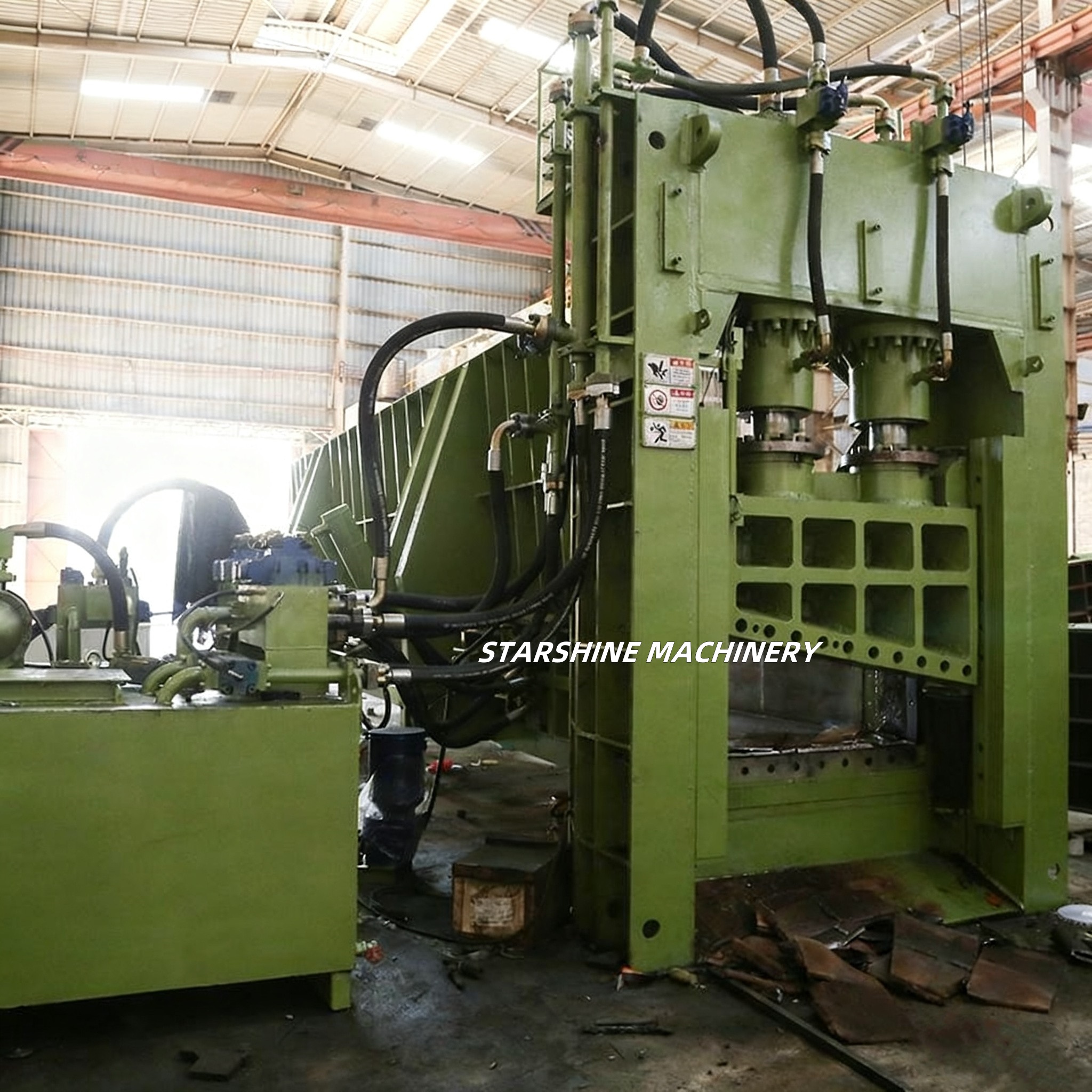

Gantry Shear

4 month ago

19 0 

JIANGYIN STARSHINE MACHINERY TECHNOLOGY CO.,LTD

2 year

Product details

Metal Tube Cutting Machine Iron Rod Cutting Machine

Workflow of gantry shear:

1. Loading: put the scrap metal into the bin through the grab machine or suction cup.

2. Material pressing: the pressing cylinder acts to fix the material on the lower tool apron.

3. Shearing: The main shearing cylinder drives the upper tool rest to move downwards and cooperates with the lower tool holder to complete the shearing.

4. discharging: the sheared material falls into the material receiving device, and the feeding mechanism pushes the next section of material.

5. Cycle: Repeat the above steps to achieve continuous cutting (supported by some models).

Suitable materials for Steel Cutting Machine:

1. Waste plates, bars, profiles (I-beam, channel steel, angle steel, etc.).

2. Scrap automobile shell and disassembled parts.

3. Metal briquette, scrap iron, billet, square steel.

4. Ship plates and large steel structures in the ship breaking yard.

5. Low-carbon light and thin scrap steel, stainless steel, copper, aluminum and other non-ferrous metals.

Applicated fields of Hydraulic Sheet Cutting Machine:

Advantages of Gantry Shear:

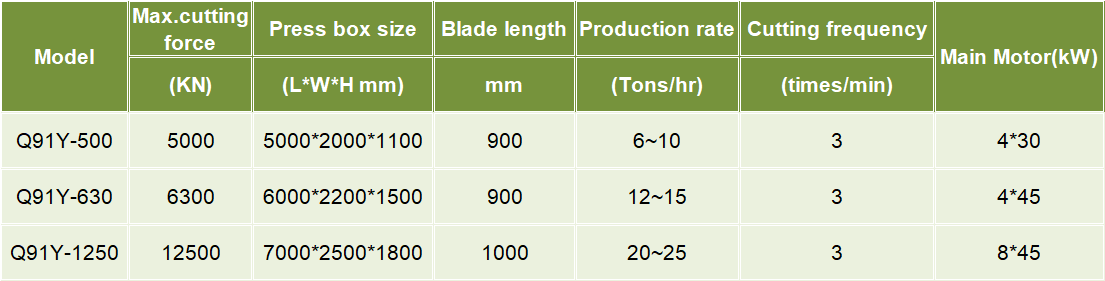

Parameters of gantry shear:
