IP67 connectors 7W2

3 month ago
6 0
Product details
7w2 d sub female IP67:

Solder-Type 7W2 Waterproof connector is a high-performance hybrid connector specially designed for harsh environments. It adopts the classic d sub outline structure and integrates 7 standard signal contacts and 2 high-current power contacts (the "7W2" layout), enabling simultaneous transmission of data signals and high‑power power supply to meet the integration requirements of complex systems.

The most prominent advantage of this waterproof d sub connector is its excellent waterproof performance. Through precision rubber sealing rings, glue potting technology or IP67/IP68‑level protection design, it can effectively resist the intrusion of water vapor, dust, oil and splashing liquids, ensuring long‑term stable operation in outdoor environments, industrial sites, ships, agricultural machinery or humid environments. Even under heavy rain, washing or high‑humidity conditions, it can maintain reliable electrical connections and avoid short circuits, corrosion or signal interruptions caused by water ingress.

In addition, its solder‑type terminal design allows users to flexibly wire according to actual cable specifications, ensuring firm connections and low contact resistance (≤25mΩ). It supports a rated current of up to 40A, suitable for high‑load scenarios such as power input, motor control and sensor power supply.

Military industry and rail transportation.

Military equipment: waterproof connections for field instruments and military communication devices.
Rail Transit: Vehicle control units, power and signal interfaces for door/lighting systems.

Main Application Areas

1. Industrial Automation and Control
This is the core application scenario of the connector.

- Application scenarios: industrial robots, CNC machine tools, automated assembly lines, servo motor control systems.

2. Outdoor Communication and Network Equipment
With excellent sealing performance (usually reaching IP67/IP68 level), it is very suitable for equipment exposed to the natural environment.

- Application scenarios: outdoor base stations, outdoor LED displays, security surveillance cameras (especially those with pan‑tilt and heating functions), outdoor broadcasting systems.

Dongguan Pandi Electronic Technology Co., Ltd. is located in the famous modern manufacturing city—Dongguan, China. For 18 years, the company has closely followed market steps and is committed to the R&D and manufacturing of connectors and peripheral products. It is a professional manufacturing company with considerable influence in industrial control medical wire harnesses and D-SUB electronic connectors.

The company integrates the manufacturing and development of front-end hardware lathe parts with the assembly and debugging of rear-end connectors and wire harnesses. The application of its developed and manufactured industrial control medical wire harnesses, D-SUB waterproof connectors, car needle connectors, high-current connectors, RF coaxial connectors, DB wire harness connectors, PCB terminal connectors, etc., involves various emerging fields such as computer peripherals, digital communication, network cables, aviation medical equipment, instruments and meters, hardware components, and mechanical power cord sets. The products are sold domestically and internationally with high quality and reasonable prices.

Guided by the philosophy of "customer demand-oriented, dedicated to thoughtful service, and making every product with care," we possess a professional electronic connector R&D team and have established a high-quality pre-sales and after-sales service system. We follow up in real-time, regularly visit customers, and promptly solve problems customers may encounter.

Our company solemnly promises that we will spare no effort to enrich company products, stabilize product quality, and continuously provide high-quality service to customers. With the business philosophy of "continuous innovation, pursuit of excellence, and dedicated customer service," we aim to develop together with customers and create a brilliant tomorrow!




Waterproof  d connector technical specifications:

Parameter:   Specification
Contact Layout : 7 pin male connector
Protection Rating :  IP67(ip67 d sub)
Rated Current :  10A / 20A / 30A / 40A (Customizable)
Rated Voltage:   250V
Contact Resistance:   ≤15mΩ
Insulation Resistance:  ≥2000MΩ
Dielectric Withstand Voltage:  750V AC / 1min
Operating Temperature:   -55°C ~ +105°C
Contact Material:   Brass / Pure Copper, Gold Plated
Insulator Material:   PBT + 30% Glass Fiber (UL94 V-0)
Shell Material:   Aluminum Alloy / Cold Rolled Steel (Nickel Plated)
Mechanical Durability:   ≥1000 Mating Cycles
Locking Mechanism:   Threaded Locking (Jackscrews)

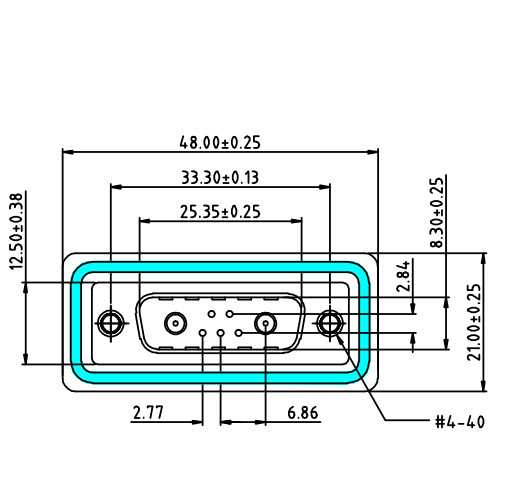

7W2-ip67
