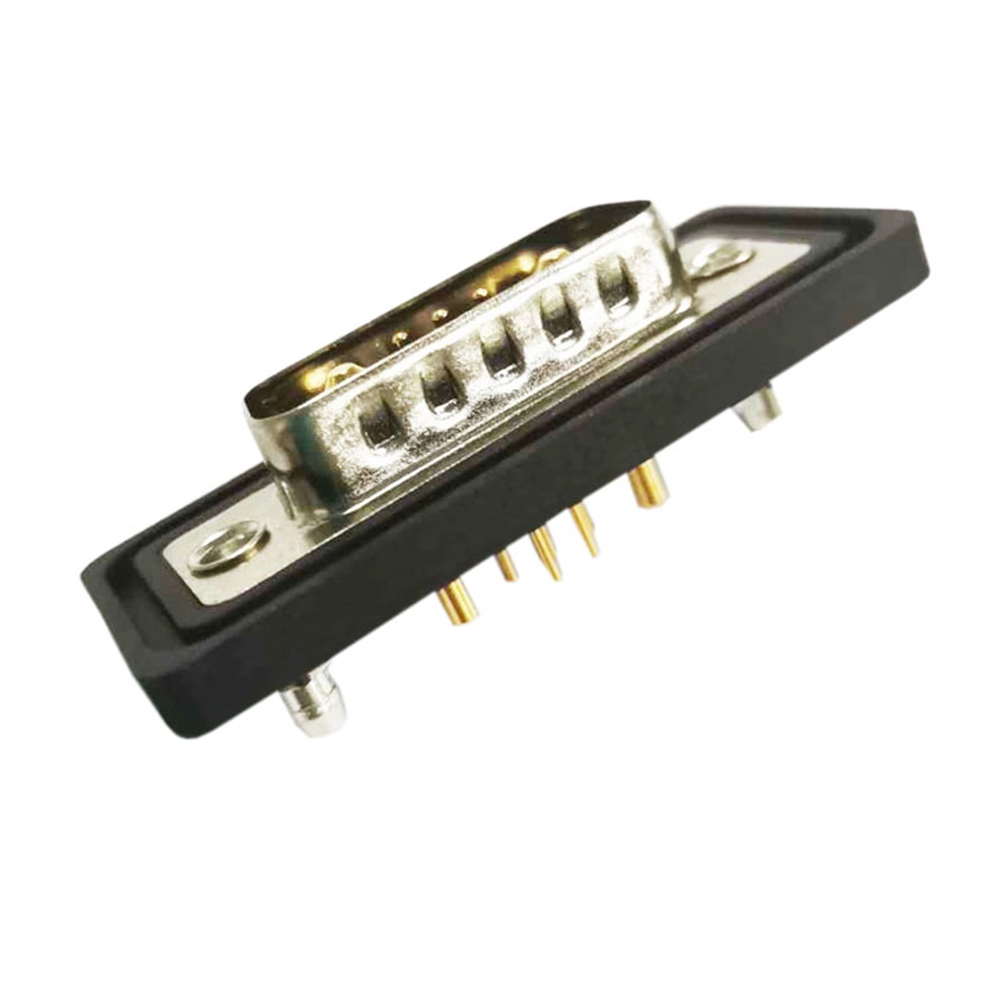

7w2 d sub male connector male Inline Waterproof Connector (IP67): Your Tough Connection Sidekick for Every Harsh Mess

Let’s cut straight to the chase—if you’ve ever screamed at a faulty connector that craps out the second it hits a little rain, dust, or a random splash of grime, meet your new ride-or-die: the 7 pin d sub connector. This little powerhouse isn’t your flimsy, run-of-the-mill plug that throws in the towel at the first sign of trouble. It’s the no-nonsense, tough-as-nails connection hero that laughs in the face of harsh environments, and it’s here to fix all your connection headaches for good.

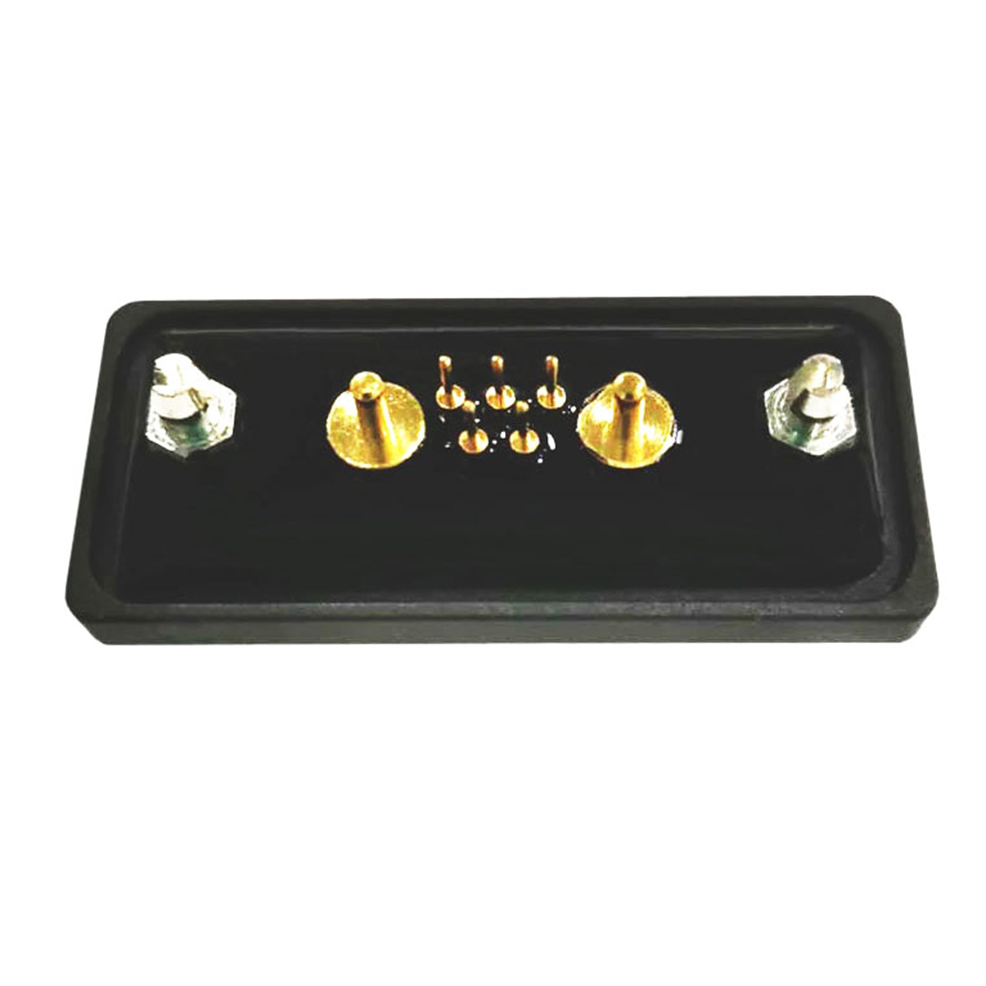

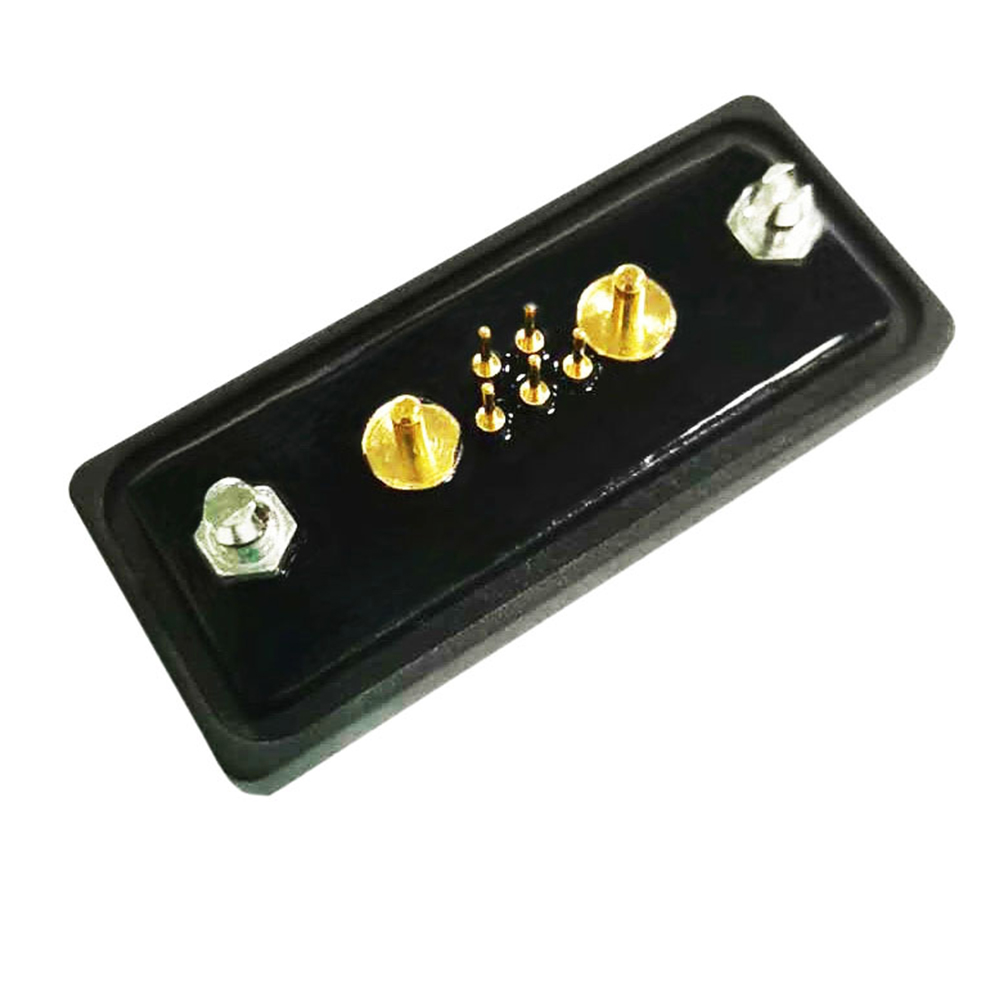

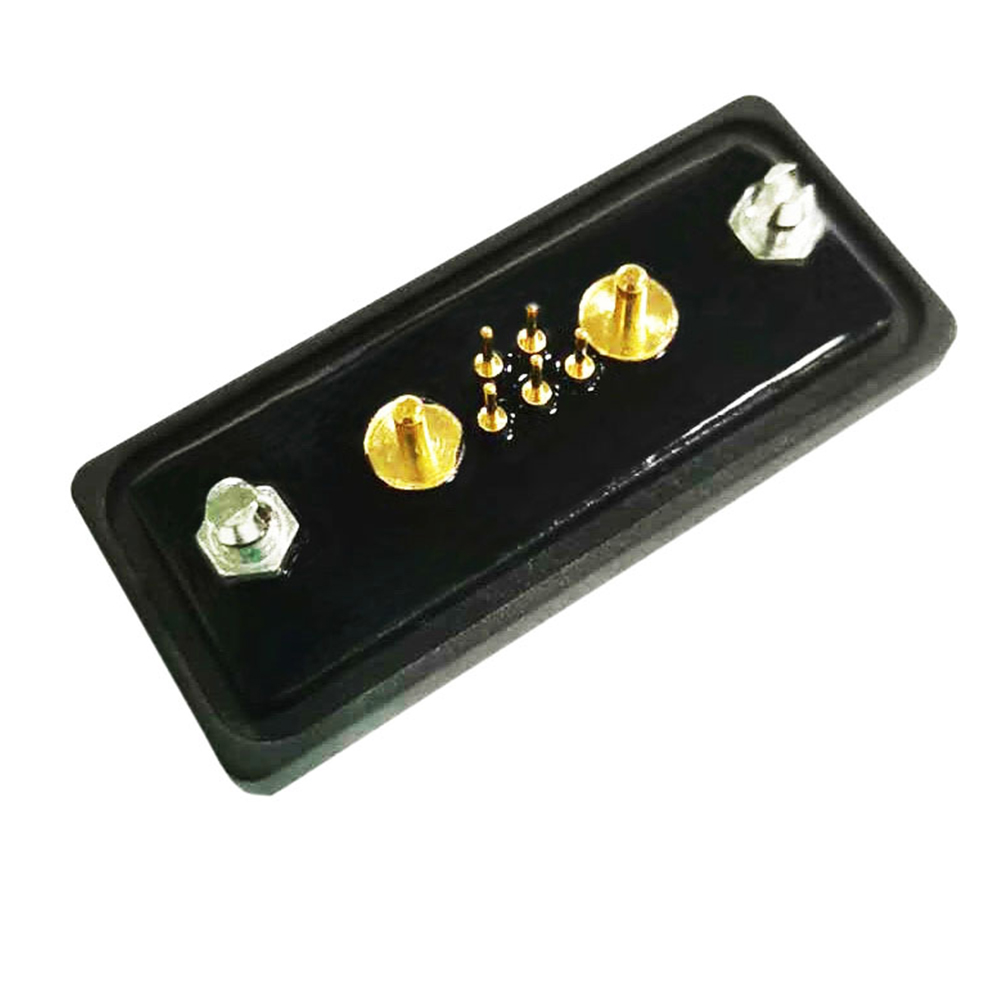

First off, let’s talk about its superpower layout: 7 signal pins + 2 high-current power pins (aka the iconic 7W2 design). Think of it as the ultimate multi-tasker of the connector world—like a handyman who can fix your tiny electrical circuits AND handle heavy-duty power flow without breaking a sweat. It transmits crisp, steady data signals for all your precision gear, and carries reliable high-current power for your heavy-load equipment, all in one compact D-Sub package. No more juggling separate connectors for signals and power; this bad boy does it all, saving you space, time, and the hassle of messy, tangled setups.

Now for the main event: that ip67 waterproof rating—the golden seal of “I don’t mess around”.

6 (Dust-proof): Represents the idea of “a fortress made of copper and iron.” Regardless of whether it’s a sandstorm outside or tiny dust particles, it can achieve complete sealing, and no dust can penetrate inside.

7 (Waterproof): Represents “flexible and adaptable.” It not only resists splashes, but can also withstand short-term immersion in water (typically meaning it can endure being submerged in water 1 meter deep for half an hour under normal temperature and pressure conditions, with no water seeping inside).

Therefore, with this “Golden Label” in hand, whether it’s an unexpected downpour, splashing mud at a construction site, or a damp and dusty harsh corner, this connector can handle it calmly and ensure that your device connection remains as stable as a mountain, never letting you down.

The ip67 waterproof connector's Technical Specifications:

Parameter: Specification

Contact Layout : d sub 7w2 male connector

Protection Rating : IP67

Rated Current : 10A / 20A / 30A / 40A (Customizable)

Rated Voltage: 250V

Contact Resistance: ≤15mΩ

Insulation Resistance: ≥2000MΩ

Dielectric Withstand Voltage： 750V AC / 1min

Operating Temperature： -55°C ~ +105°C

Contact Material： Brass / Pure Copper, Gold Plated

Insulator Material： PBT + 30% Glass Fiber (UL94 V-0)

Shell Material： Aluminum Alloy / Cold Rolled Steel (Nickel Plated)

Mechanical Durability： ≥1000 Mating Cycles

Locking Mechanism： Threaded Locking (Jackscrews)
