KL12-DS90A direct coupled screw air compressor

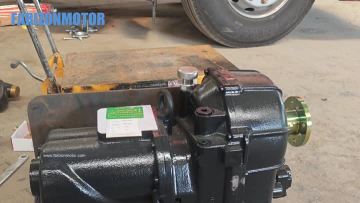

The CAMC KL12-DS90A direct coupled screw air compressor unit is an oil-free screw compression equipment specially designed for the transportation of powder and granular materials. Its core is adapted to the pneumatic conveying needs of various types of powder and granular materials such as cement, ore powder, and fly ash. The whole machine adopts a direct transmission structure, with high transmission efficiency, stable operation, and low failure rate. It is a highly reliable supporting equipment in the powder and granular material transportation industry. The air compressor unit model is KL12-DS90A, equipped with DS90A air compressor and 4MN4260-D diesel engine. The unit weighs 596kg, with external dimensions of 1900 × 610 × 1350mm. The structure is compact and reasonable, and does not occupy too much space for on-board installation. It can flexibly adapt to various types of powder material transportation special vehicle bottom plates. The air compressor has a displacement of 12m ³/min, a speed of 1500r/min, a shaft power of 40kw, a large air output and stable gas supply, and can quickly and efficiently complete material unloading and conveying operations; The oil-free and clean design can effectively avoid oil pollution of materials, ensure material purity, and is equipped with a 4MN4260-D diesel engine, which has strong power output and economical energy consumption, suitable for high-frequency operation scenarios in vehicles. With solid manufacturing processes, precise parameter configuration, and convenient installation characteristics, it has become the preferred supporting equipment in the global powder material transportation field.
