Titanium alloy nozzle machining

5 month ago

32 0 

Shenzhen Xavier component company limited

10 month

Product details

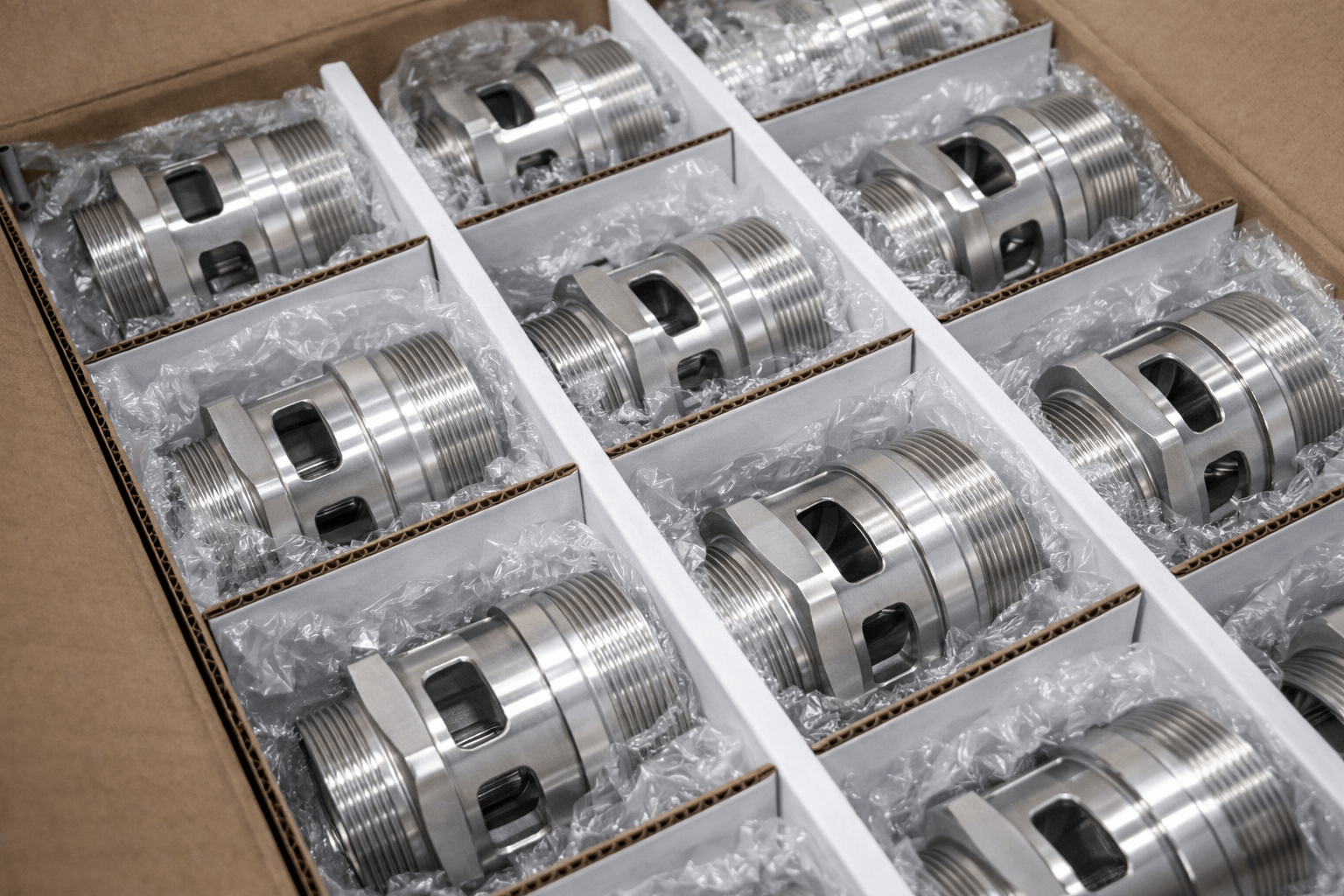

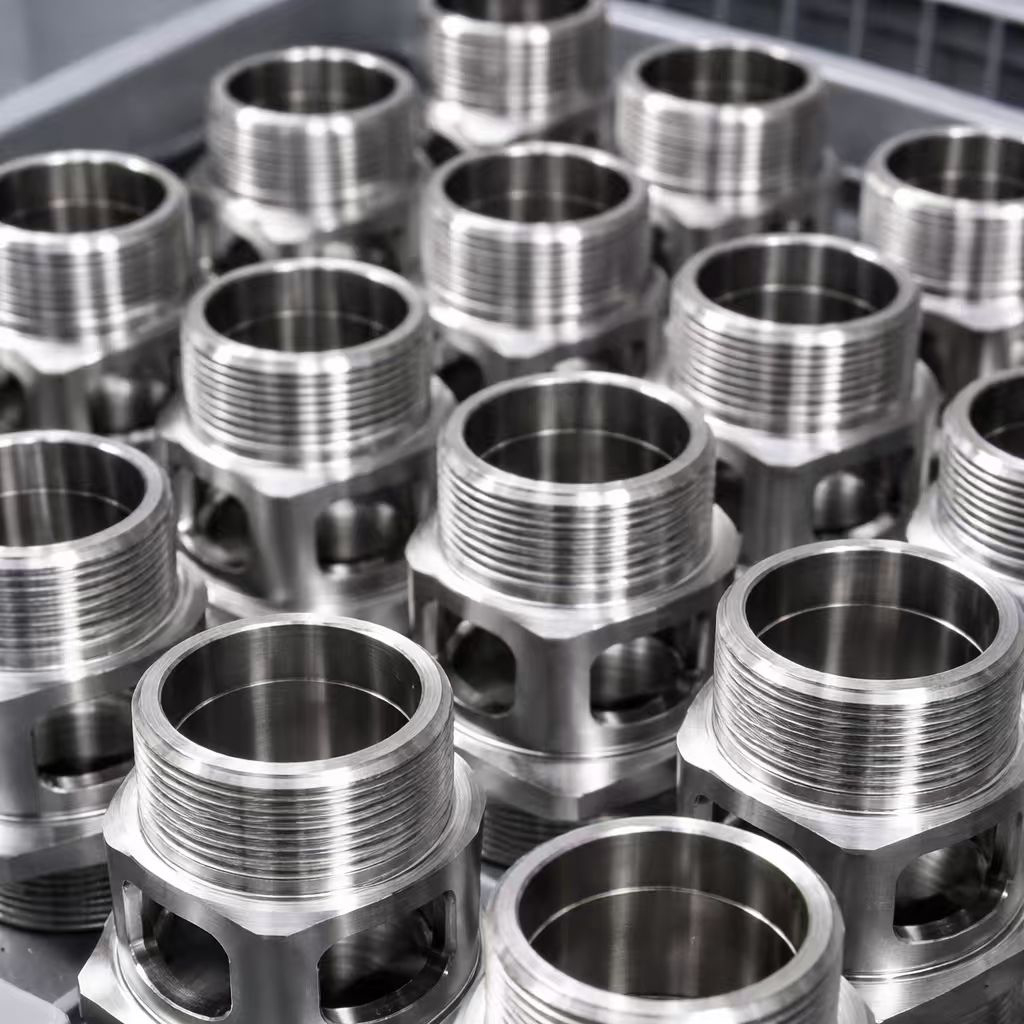

This part is an aerospace-grade precision CNC machined threaded interface joint, which is integrally formed by cutting high-performance metal materials. It integrates double-ended threads, a weight-reducing structure, and a controlled mounting position design. It has excellent strength-to-weight ratio, coaxiality control, and assembly reliability, and is widely used in fluid, cooling, and structural connection scenarios in aerospace, military equipment, and high-end precision systems. Core processing methods is mainly CNC turning + turn-mill compound machining.

For these aerospace-grade precision threaded interface components, testing focuses on dimensional accuracy, geometric tolerances, sealing reliability, and batch consistency. Priority is given to double-ended threads, where go-no-go gauges and thread measuring tools verify pitch, thread angle, and fit class to ensure stable connection and load-bearing performance during assembly.

Key functional surfaces require rigorous inspection of coaxiality and roundness—including alignment between inner bore and external thread axes—to maintain sealing and structural stability under high-vibration conditions. Sealing faces and mating steps are checked for flatness and surface roughness to prevent leakage from local unevenness or machining defects.

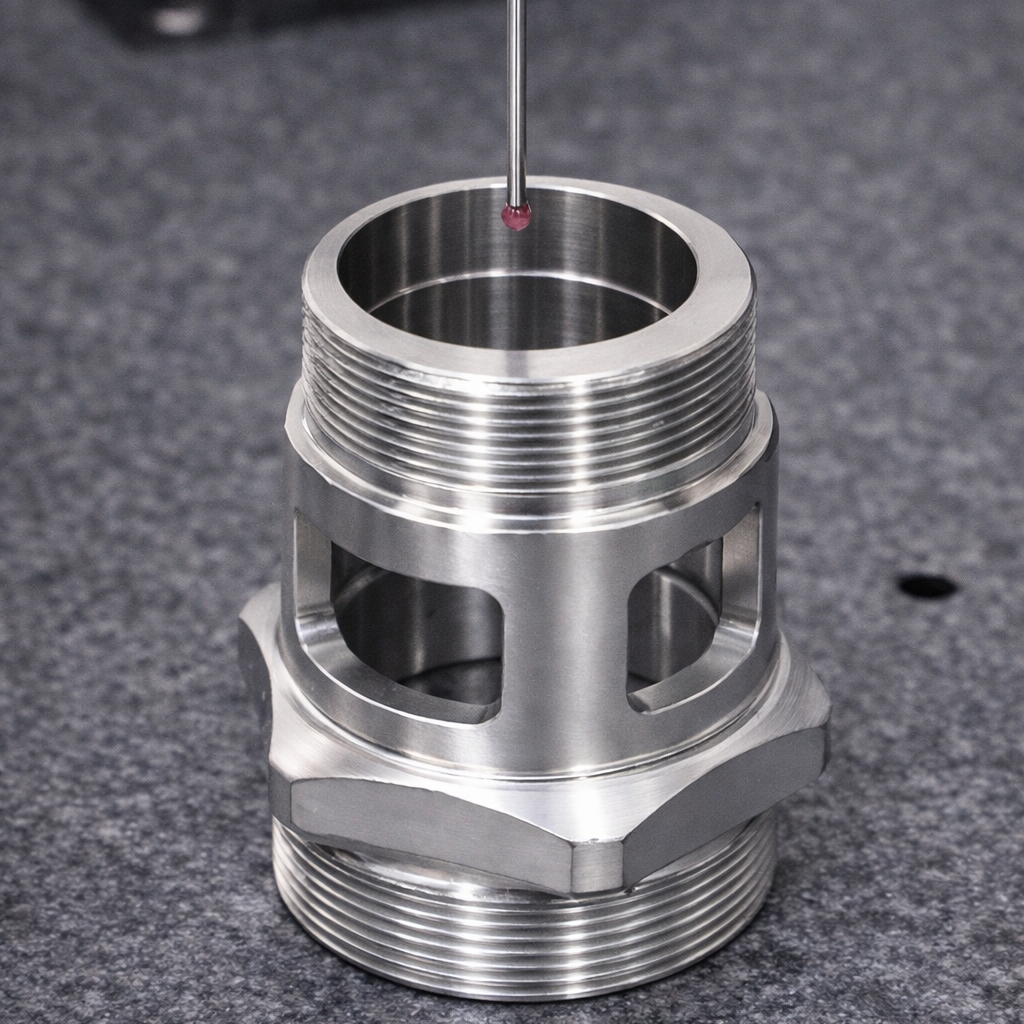

The middle weight-reduction windows and structural transition areas undergo visual and structural integrity checks to ensure no cracks, burrs, or sharp edges remain, avoiding stress concentration. Critical dimensions and geometric tolerances are verified using a Coordinate Measuring Machine (CMM) during testing. All results are fully documented and linked to material batches and processing steps for full lifecycle traceability, meeting the quality consistency and reliability requirements of aerospace and military equipment.

More products ,pls check links: CNC machining parts, aerospace components, 5 axis cnc machining, die casting machining etc.
