BELEKS Plug Socket Connector | Male Female Electrical Wire Connector

5 week ago

2 0 

Jiangmen Krealux Electrical Appliances Co.,Ltd.

6 year

Product details

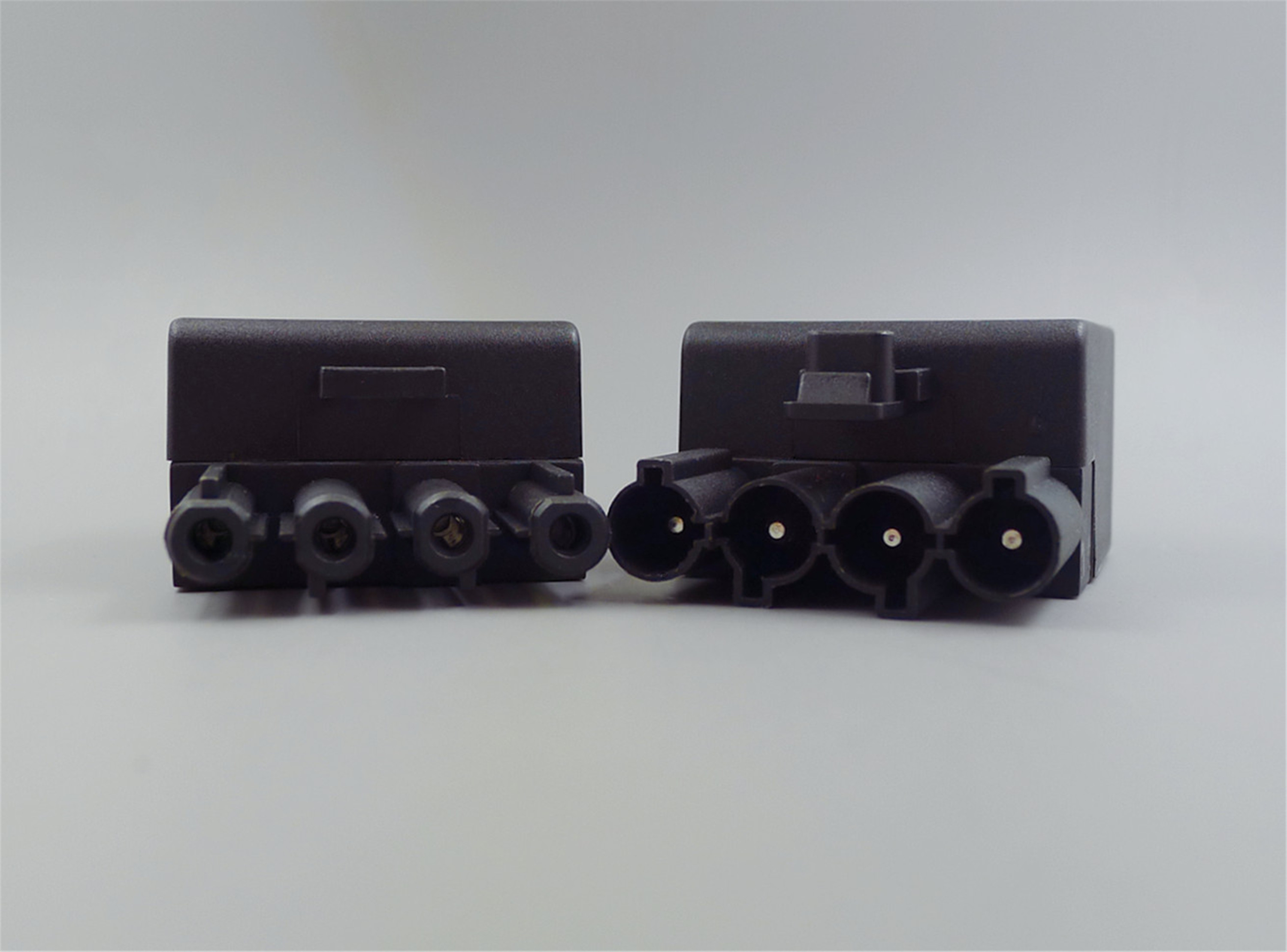

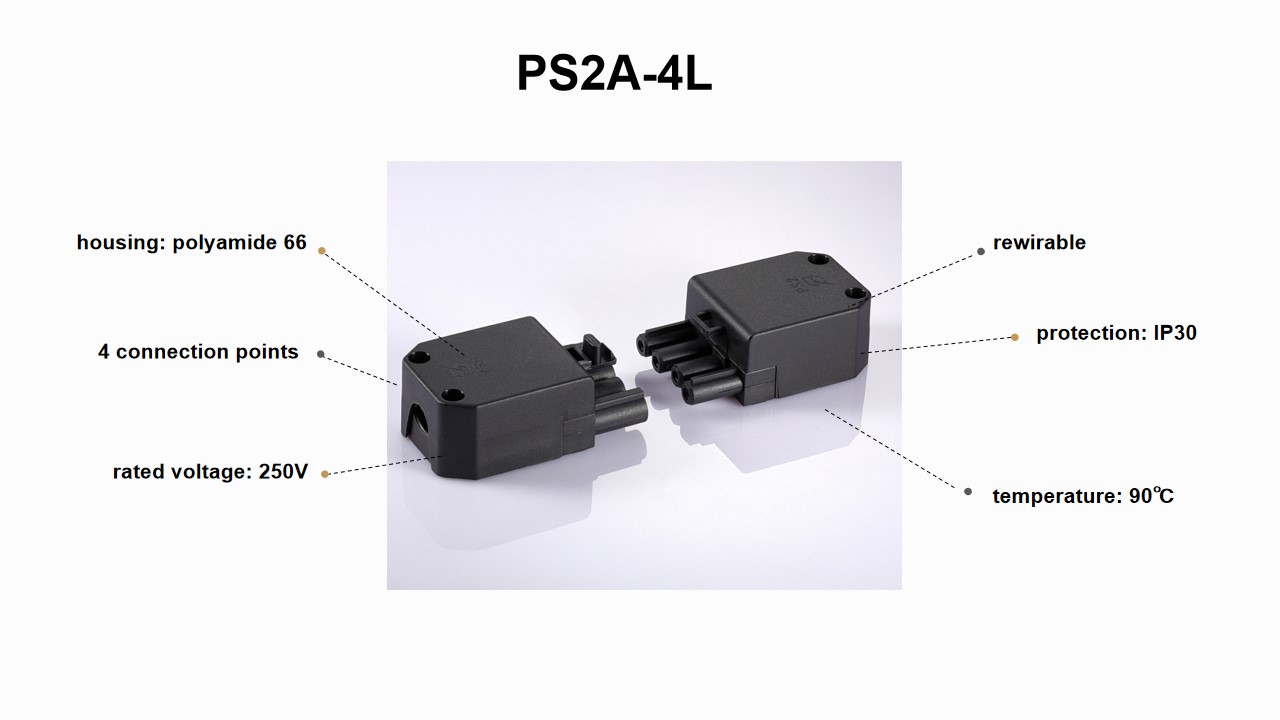

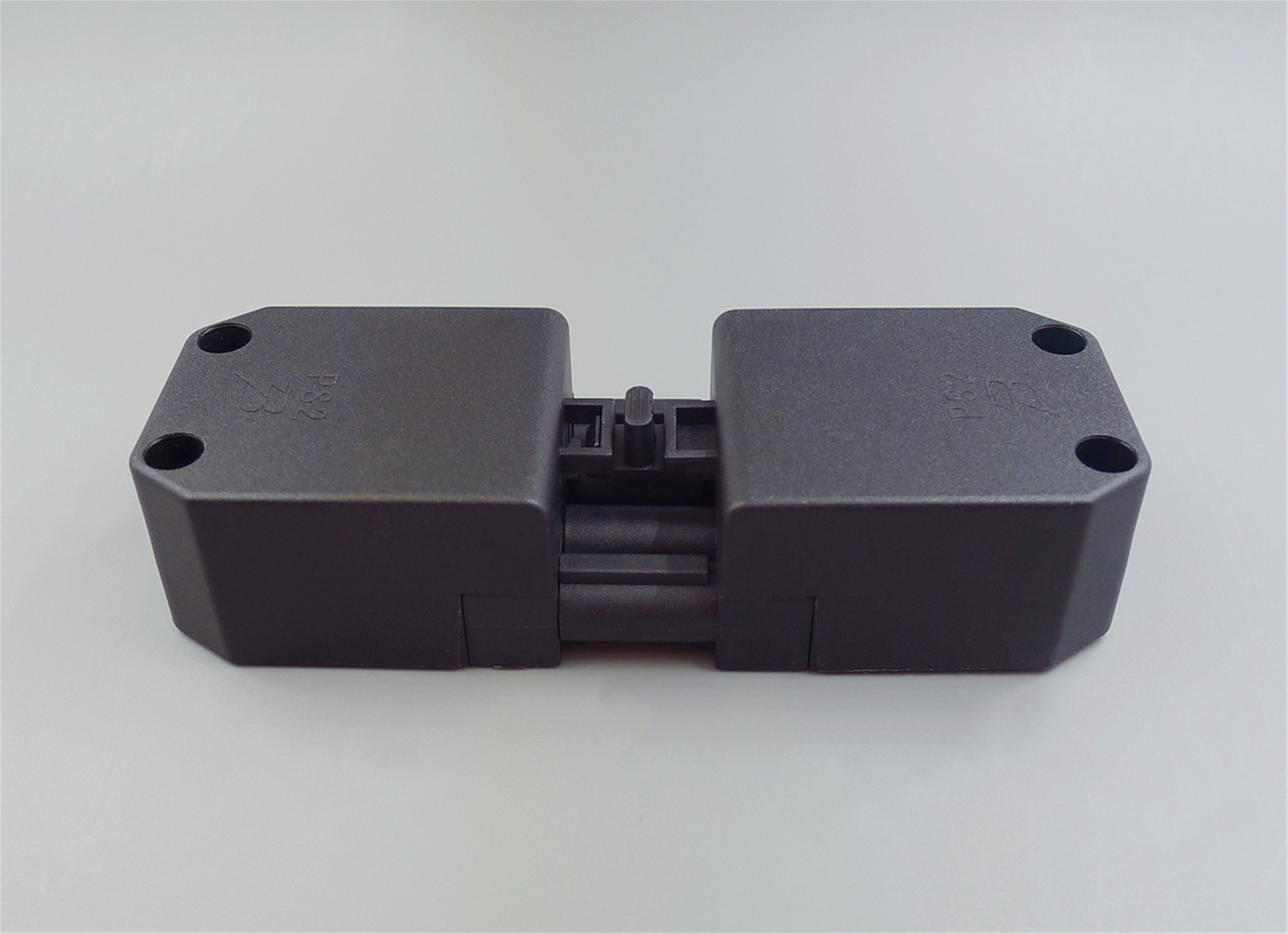

Introducing our robust 4-pole L-shaped male and female pluggable terminal block wire connectors, featuring a durable PA 66 housing for maximum reliability and longevity. These pluggable connectors offer a secure and easy-to-use solution for connecting wires in a variety of applications, including automation, control systems, and electrical installations. With their compact L-shape design, they are ideal for tight spaces and easy access, while the 4-pole configuration ensures ample capacity for multiple wire connections. Whether you're working on a new project or need replacements for worn-out connectors, our pluggable terminal blocks are the perfect choice for your electrical needs.

Connector specification:

size of connector: 110.00mm×38.00mm×24.50mm

Annual Production:

40, 000, 000PCS/Year

Materials:

housing: polyamide66(V2)

clamping unit: copper/brass

Packing info:

150 pcs per carton

carton size: 62.5×40×22 cm

net weight: 8kg

gross weight: 9kg

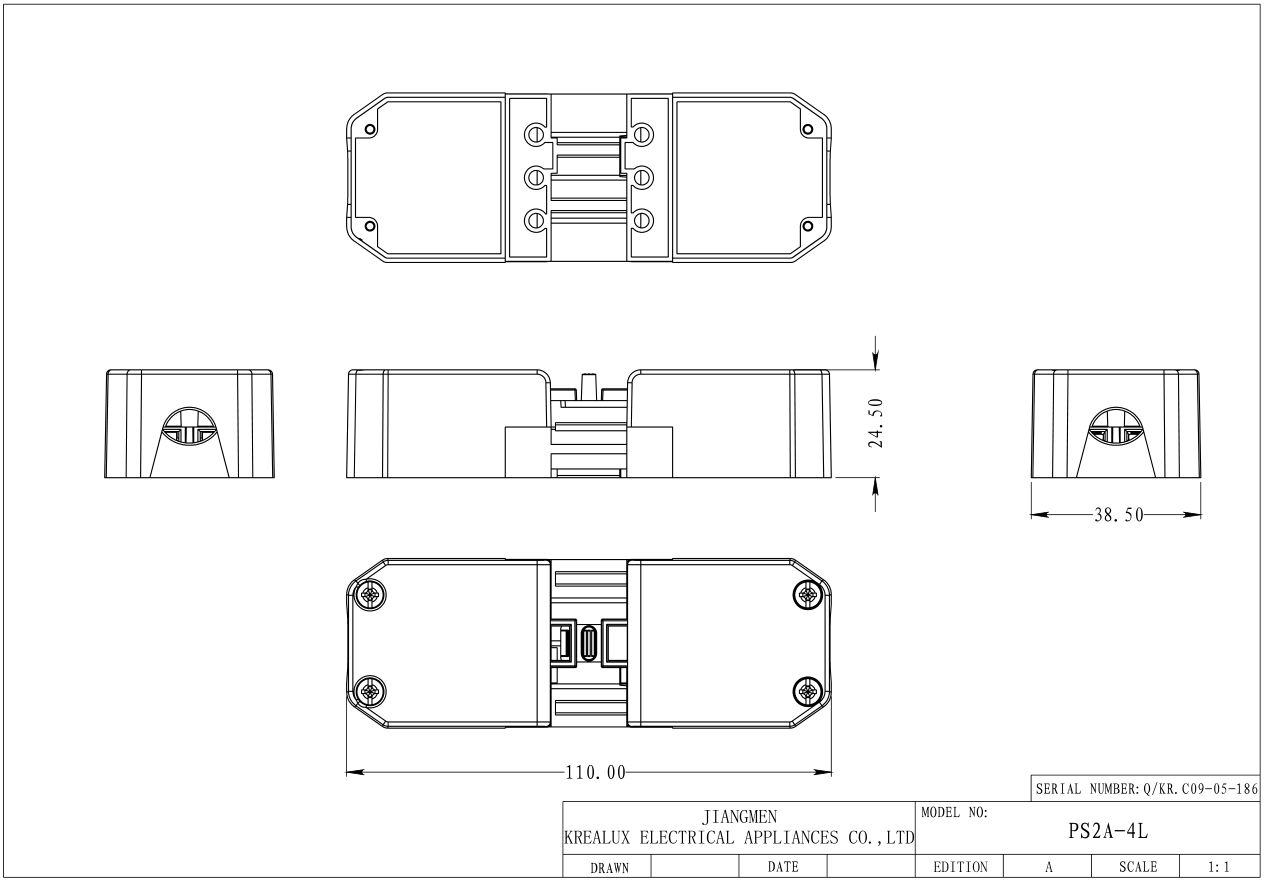

Dimensions

Specifications

Item No.		PS2A-4L
Electrical Data
		IEC/EN
Rated Voltage (V)		250
Rated Current (A)		16
Ambient Temperature	Polyamide 66	90℃

Connection Data
		IEC/EN
Cross Section	Solid conductor	0.75-1.5mm²
	Stranded conductor	0.75-1.5mm²
	Flexible conductor	0.75-1.5mm²
Strip length (mm)		7
Means of connection		screw fixed
Screw		M3
Rewirable		√
Number of terminals		multiway
Number of connection points		4
Protection Degree
IP30
Materials
Insulation Materials	Designation	Polyamide 66
	Flammability class	UL 94V-2
Packing Quantity (pcs/carton)
150
