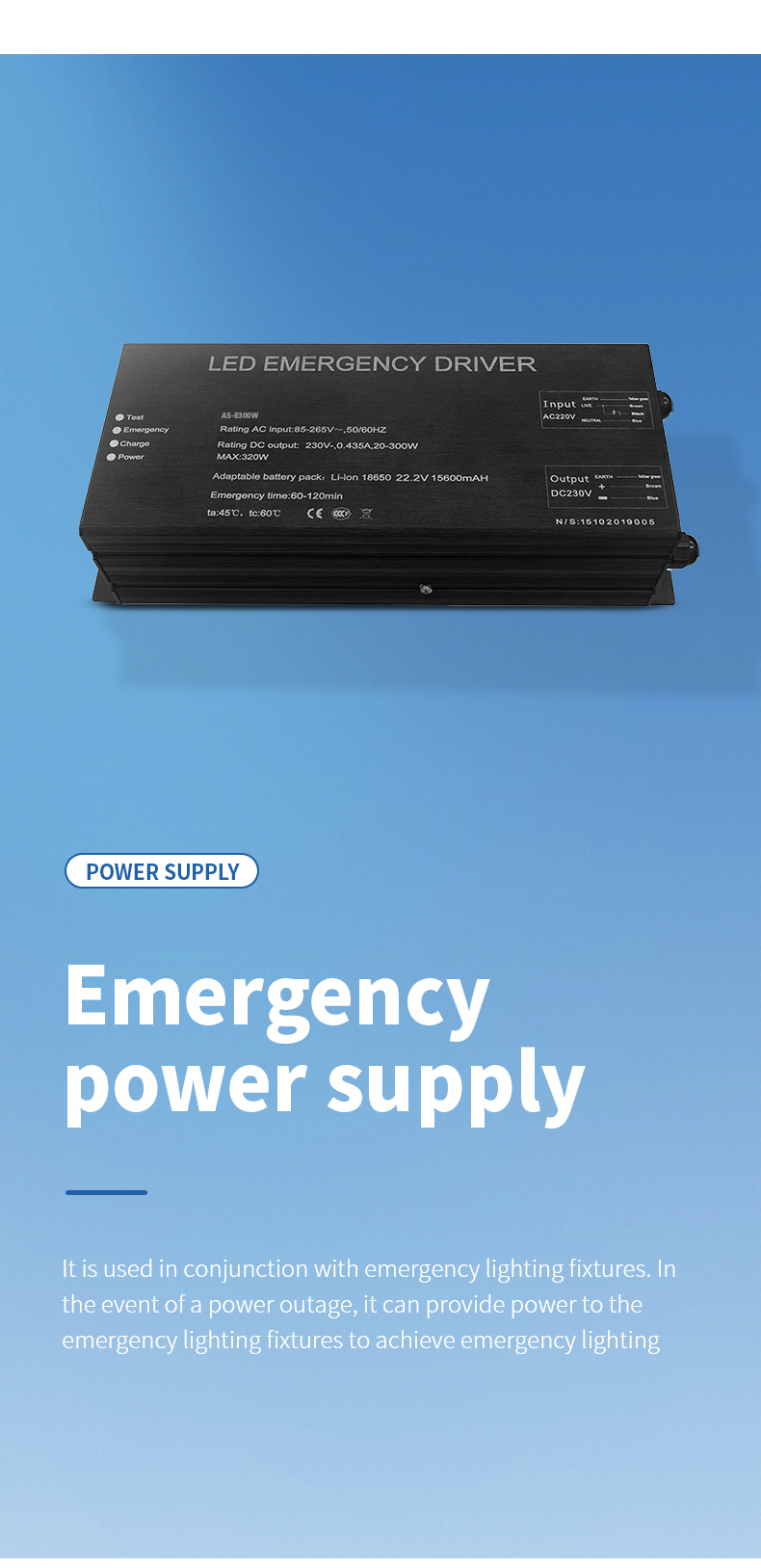

The Security configuration of Anshine Led emergency drivers

Safety Design of Anshine full power output emergency power supply : The "defense barrier" against risks. The emergency lighting power supply, as a fire protection device, is of paramount importance in safety design. High-quality products possess the "full-scenario protection" capability:

1. Electrical Safety:

Features a double insulation structure, with insulation resistance ≥ 20MΩ (national standard ≥ 10MΩ), and can withstand voltage shock (AC 1500V, no breakdown within 1 minute);

Equipped with overload protection (automatically cuts off output when overload reaches 120%), short-circuit protection (response time ≤ 10ms), and lightning protection (with SPD lightning protection module, capable of withstanding impact current ≥ 20kA).

2. Fire and Explosion Prevention:

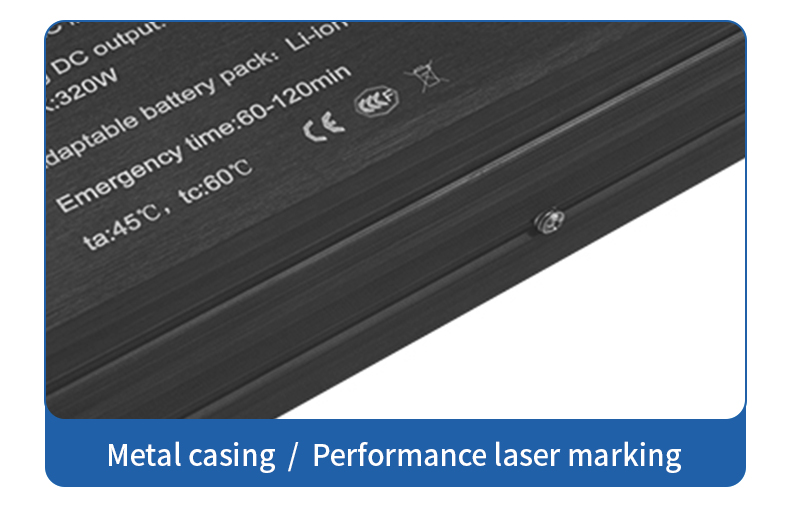

The housing is made of flame-retardant material of V0 grade (national standard V1 grade), with a high-temperature resistance of ≥ 130℃, and does not burn or release toxic gases when exposed to fire;

The battery compartment is independently sealed, with an internal explosion-proof valve to prevent explosion when battery overheats, especially suitable for enclosed installation scenarios such as ceilings and cable shafts.

3. Anti-misoperation and Humanized Protection:

Equipped with emergency start buttons and forced shutdown switches, with clear markings to avoid misoperation;

The wiring terminals adopt an anti-electric shock design (protection level IP20), to prevent electric shock during installation or maintenance.
