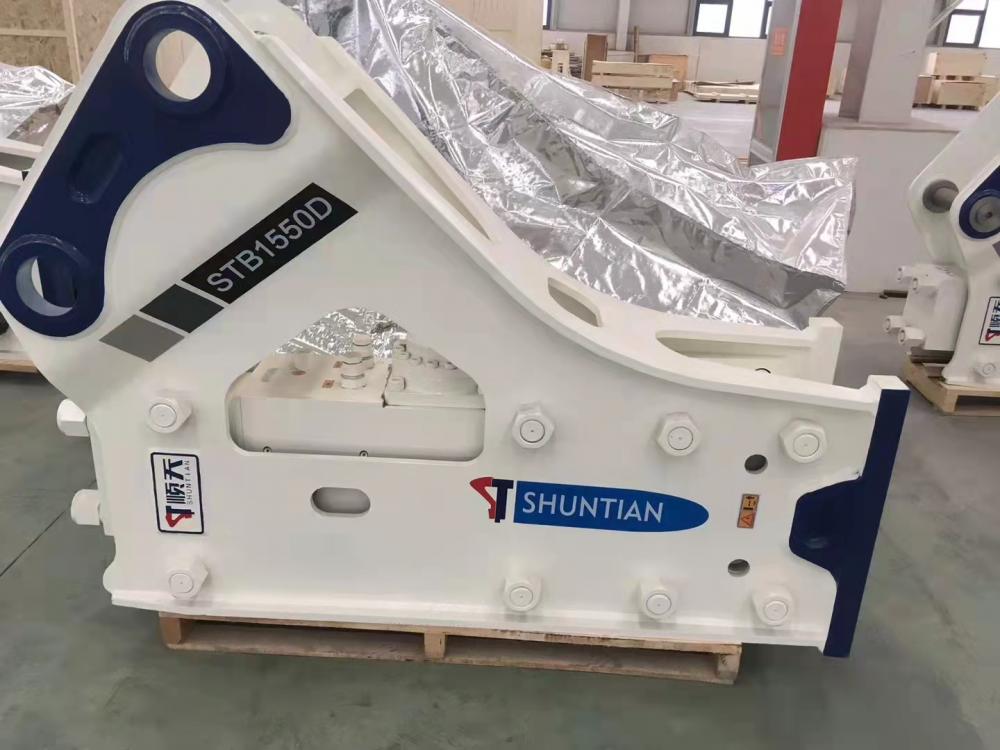

205Side type hydraulic breaker
3 year ago
Side Type Hammer Product Description
Hydraulic breaker (also called hydraulic hammer) is a type of construction machinery that is mounted on excavators, backhoes, skid steers, mini-excavators, and stationary plants. Driven by hydraulic power it breaks rocks into smaller sizes or demolishes concrete structures into manageable pieces.
According to the difference of the hydraulic breaker structure, we mainly categorize it as side type breaker (side mounted breaker), top type breaker (top mounted breaker) and silence type breaker (box type).
In the demolition application, the side type breaker (side mounted hydraulic breaker) is more flexible to reach different condition project like road demolition and construction breaking.
What is the difference among side type,box type and top type rock breakers?
For Side type, the installation pins are on the side of the breaker.
For Top type , the installation pins are on the top of the rock breaker.
And for box type, the rock breaker bracket is full sealed like a box,and it equiped with rubber cushion inside of the bracket to keep lower noise. So it is also called silence type rock breaker.The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors. Both side type and top type breakers are with opening bracket, which is easy for maintenance and parts exchanging. But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.
Technology Parameters:
1) SB series hydraulic hammers
|
Decription/Model |
SB10 |
SB20 |
SB30 |
SB40 |
SB43 |
SB45 |
SB50 |
SB60 |
SB70 |
SB81 |
SB100 |
SB121 |
SB131 |
SB151 |
||
|
Operating Weight |
Side Type |
kg |
101 |
113 |
175 |
267 |
368 |
505 |
776 |
1,364 |
1,487 |
1,737 |
2,150 |
2,503 |
3,096 |
3,735 |
|
Top Type |
96 |
110 |
223 |
296 |
404 |
647 |
865 |
1,447 |
1,575 |
1,920 |
2,478 |
2,544 |
2,728 |
4,015 |
||
|
Box Type |
129 |
148 |
206 |
337 |
425 |
697 |
865 |
1,239 |
1,497 |
1,756 |
1,960 |
2,350 |
2,780 |
3,685 |
||
|
Operating Pressure |
bar/psi |
90-120 |
90-120 |
90-120 |
110-140 |
120-150 |
130-160 |
150-170 |
150-170 |
160-180 |
160-180 |
160-180 |
160-180 |
160-180 |
160-190 |
|
|
Setting Pressure |
bar/psi |
150 |
150 |
150 |
170 |
180 |
190 |
210 |
210 |
210 |
220 |
230 |
230 |
230 |
230 |
|
|
Required oil flow |
l/min |
15-30 |
20-40 |
20-50 |
40-70 |
50-90 |
60-100 |
80-110 |
90-120 |
100-150 |
120-180 |
130-190 |
180-240 |
200-260 |
210-290 |
|
|
Working Tool |
Diameter |
mm |
40 |
45 |
53 |
68 |
75 |
85 |
100 |
125 |
135 |
140 |
150 |
155 |
165 |
175 |
|
Weight |
kg |
7 |
8 |
9 |
16 |
21 |
30 |
55 |
103 |
127 |
134 |
170 |
183 |
220 |
260 |
|
|
Impact Rate |
bpm |
800-1100 |
700-1200 |
600-1100 |
500-900 |
400-800 |
400-800 |
350-700 |
350-650 |
350-600 |
350-500 |
300-450 |
350-450 |
250-400 |
200-350 |
|
|
Hydraulic Hose |
inch |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
1 |
1 |
1 |
1 1/4 |
1 1/4 |
1 1/4 |
1 1/4 |
|
|
Suitable Excavator |
tons |
0.8~2.5 |
1.2~3 |
2.5~4.5 |
4 ~ 7 |
6 ~ 9 |
7~14 |
11 ~ 15 |
15-18 |
18 ~ 21 |
20 ~ 26 |
25 ~ 28 |
28 ~ 35 |
30 ~ 40 |
40 ~ 55 |
|
2)Furukawa HB series hydraulic hammers
| Model No. | Chisel diameter | Weight(kg) | Working flow(l/min) | Impact rate(bmp) | Hose diameter(inch) | Tons | Applicabel excavator |
| HB20G | 135mm | 2000 | 1250-150 | 400-800 | 1 | 18-25 | any brand |
| HB30G | 150mm | 2800 | 150-190 | 300-750 | 1 | 25-30 | any brand |
| HB40G | 160mm | 3500 | 190-250 | 250-500 | 5/4 | 35-45 | any brand |

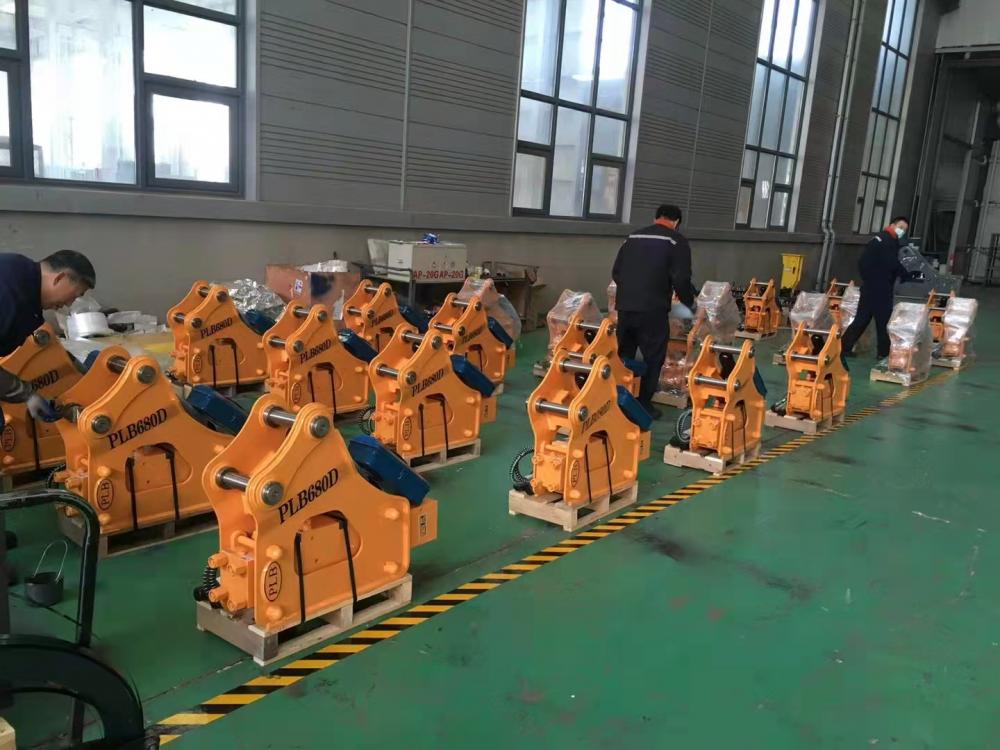

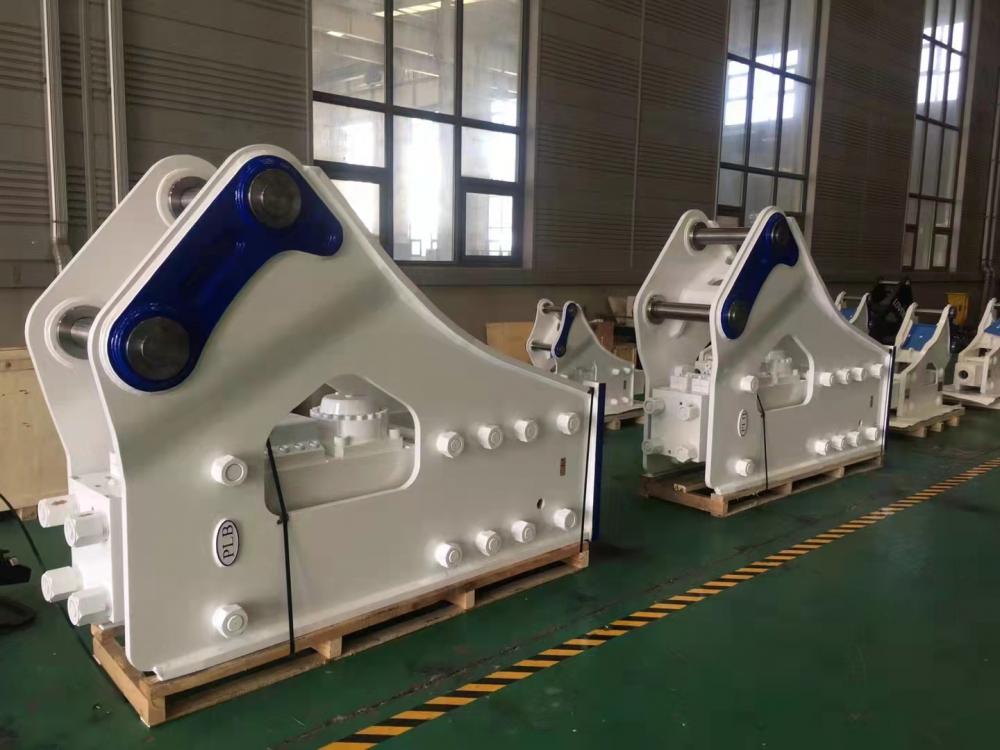

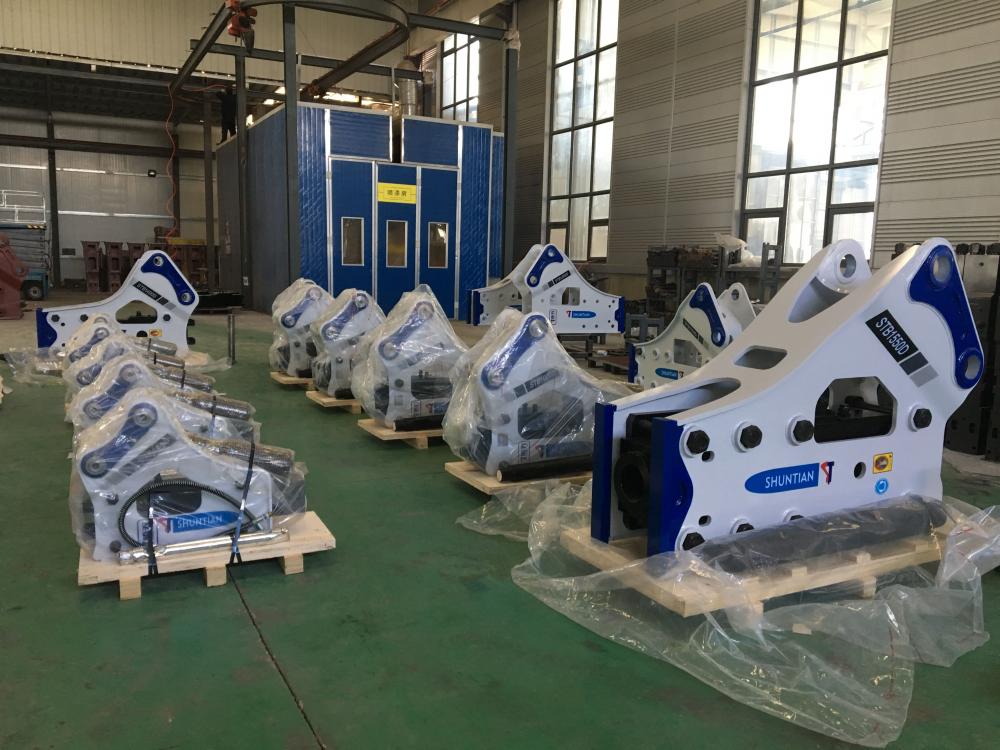

PICTURES
What accessories come together with the hydraulic breaker?
1). 2 pcs in/out hydraulic hoses
2). 2 pcs moil type chisel tools.(Using 42crmo good material, 2-3 times longer life than normal)
3). 1 pc nitrogen gas bottle.
4). 1 sets nitrogen charge guage kits.
5). 1 set tool box.(including the maintenance tool)
6). 1 set product brochure,hydraulic breaker manual book and parts book
ALL THE PRICE WITH SPARE PARTS ABOVE
Packing and delivery time
1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.
HOW TO CHOOSE OUR BREAKER ?
1. PLEASE LET US KNOW YOUR EXCAVATOR MODEL NUMBER OR WEIGHT OF MACHINE.
2.PLEASE LET US KNOW WHAT COLOR DO YOU NEED FOR BREAKER .
3.PLEASE CHECK THE" A B C D E "SIZE AS FOLLOWING FOR US:ARM EAR WIDTH ,PIN DIAMETER AND PIN CENTER TO PIN CENTER SIZE .
