OEM L-shaped Mounting Plate

2 month ago

7 0 

Shenzhen Shengpeng Metal Products Co., Ltd.

7 month

Product details

Suitable for automated sliding worktables, equipment drawer modules and linear transmission mechanisms, our Quality Slide Rail Mounting Plate is a high-performance sheet metal support component designed for slide rail fixing, motion guiding and stroke limiting. It reliably bears reciprocating impact loads during long-term linear operation, maintaining structural stability and assembly accuracy for automated sliding systems.

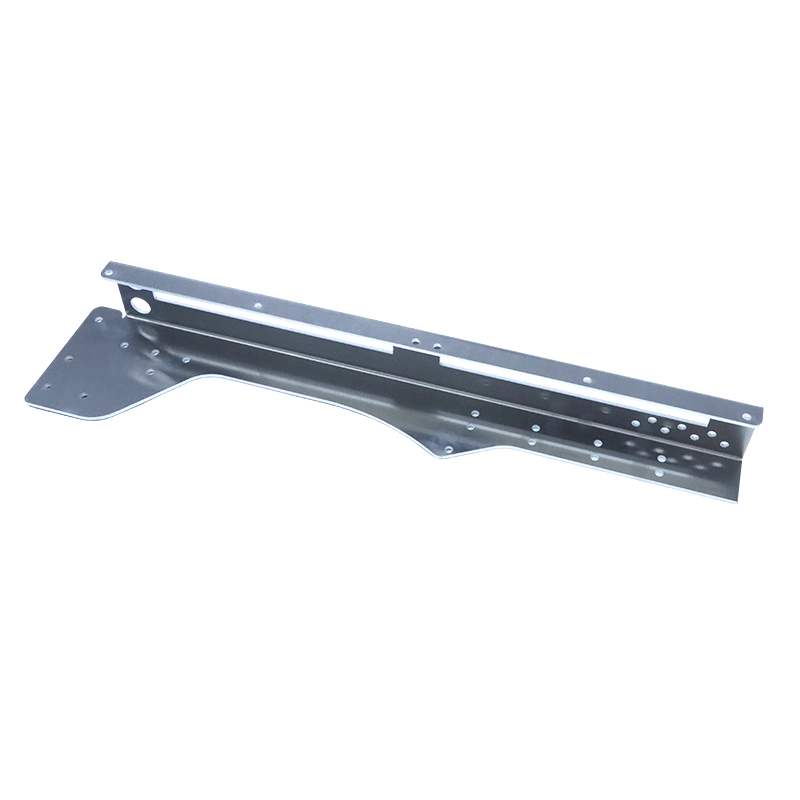

Precision Welding Slide Rail Mounting Plate

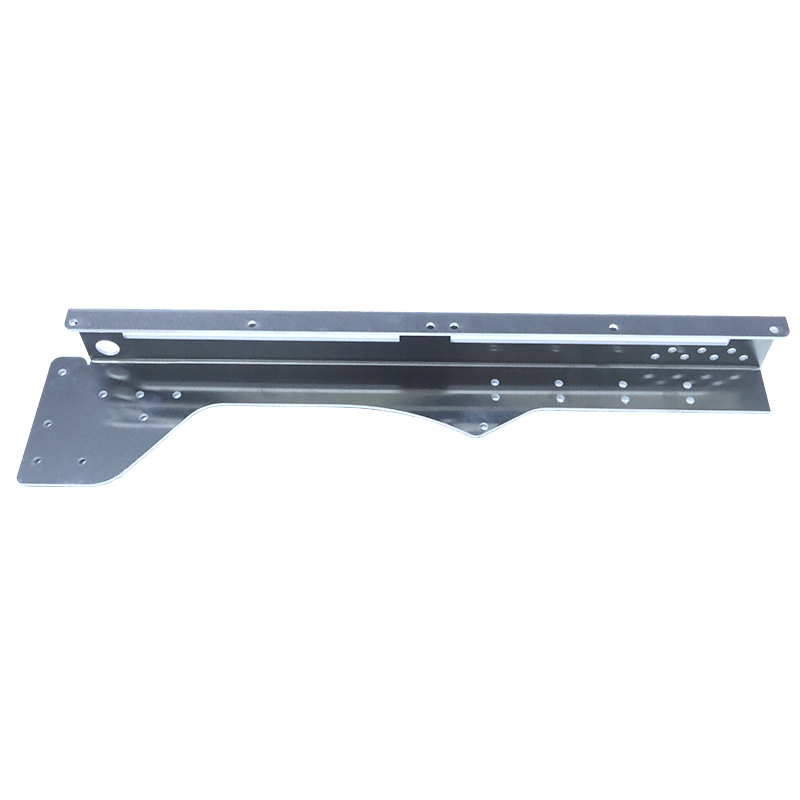

Adopting high-quality 5052 aluminum alloy as raw material, our 5052 Aluminum Slide Rail Mounting Plate features excellent bending stability and fatigue resistance. The material effectively controls springback deformation after forming, resisting torsion and structural distortion under continuous sliding friction and impact force, making it ideal for manufacturing long-size and complex-shaped sheet metal structural parts. Leveraging professional Sheet Metal Forming technology including laser cutting and multi-stage precise bending, matched with fine welding processing, we customize integrated structural shapes with raised flanges and corner mounting lugs. Strict control over welding deformation and hole position tolerance guarantees ultra-flat mounting surfaces, delivering high-rigidity Precision Welding Slide Rail Mounting Plate for precision linear motion assembly.

Every mounting plate is finely polished at welding seams and fully deburred at cutting edges to avoid scratching matching slide rail parts during installation. Delivered with original raw aluminum surface, the product reserves complete secondary processing space, supporting anodizing, powder coating and passivation treatment to adapt to diverse industrial working conditions. Reserved elongated adjusting grooves allow flexible position calibration during assembly, effectively compensating installation tolerances and improving overall assembly flexibility.

We support full OEM non-standard customization for plate length, bending height, hole layout and welding structure, strictly following customer drawings and sample standards. Relying on professional Sheet Metal Welding Service and Metal Welding Service, we offer a complete one-stop solution covering drawing confirmation, rapid prototyping, small-batch verification and mass export delivery. Widely used for industrial sliding bases, push-pull module brackets and instrument drawer supports, our Metal Welding Slide Rail Mounting Plate features outstanding aluminum toughness, sturdy welded structure and flexible adjustable assembly, fully satisfying custom production requirements for all types of special-shaped and large-size slide rail mounting components. We deliver durable and high-precision sheet metal parts tailored for diverse linear motion automation equipment.
