90° Metal Housing 15pin 1
4 week ago
Product details
Right Angle D SUB Shielded Metal Hood
90° Cable Exit for Tight Installation Spaces

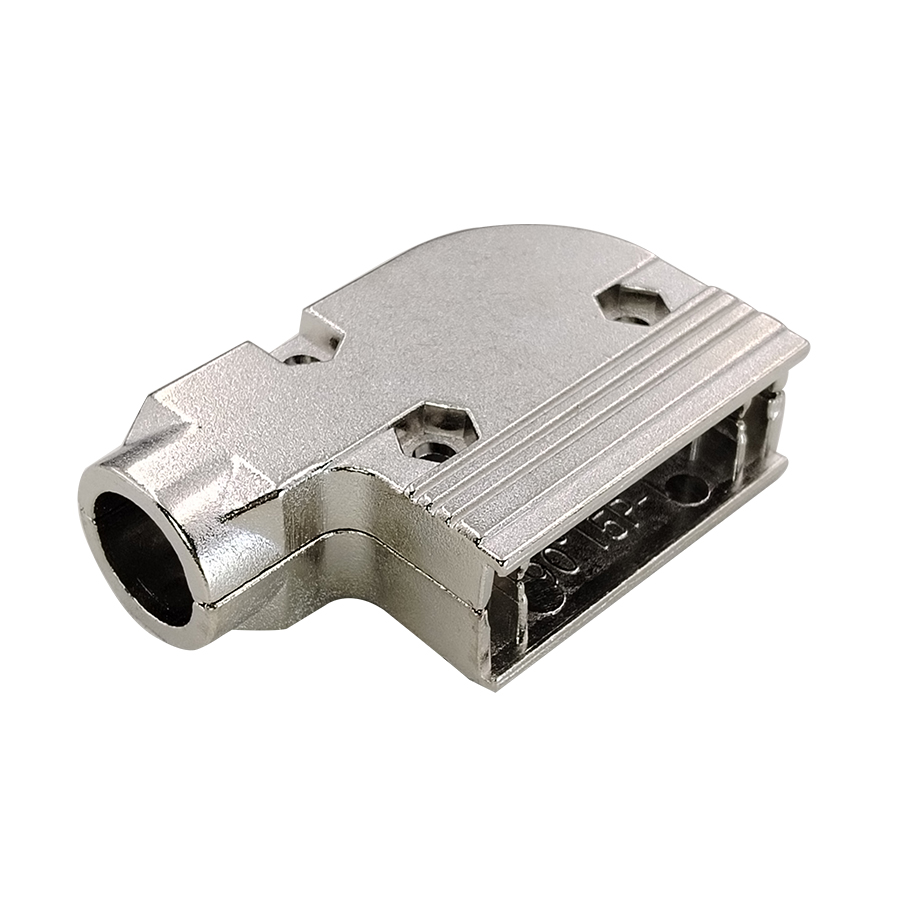

The Right Angle D SUB Shielded Metal Hood changes the cable direction from straight out to a 90° side exit. This simple change can make a big difference when a D-SUB connector sits close to a machine panel, cabinet wall, or other components. Instead of leaving a large bending area behind the plug, the cable turns to the side, making the connection easier to arrange in a tight space.
| Item | Specification |
| Material | Die-cast zinc alloy, nickel-plated, corrosion-resistant, 360° electromagnetic shielding |
| Cable Orientation | 90° right-angle side cable (perpendicular to plug end), solves wiring in tight spaces |
| Structure | Two-piece snap-assembly housing with locking screws (4-40 UNC thread) + rubber cable strain relief, anti-pull, anti-break |
| Pin Options | 90° metal housing 15-pin 2 (see specification details below) |
| Accessories | Includes long screws, nuts, rubber grommet (fits different cable diameters) |

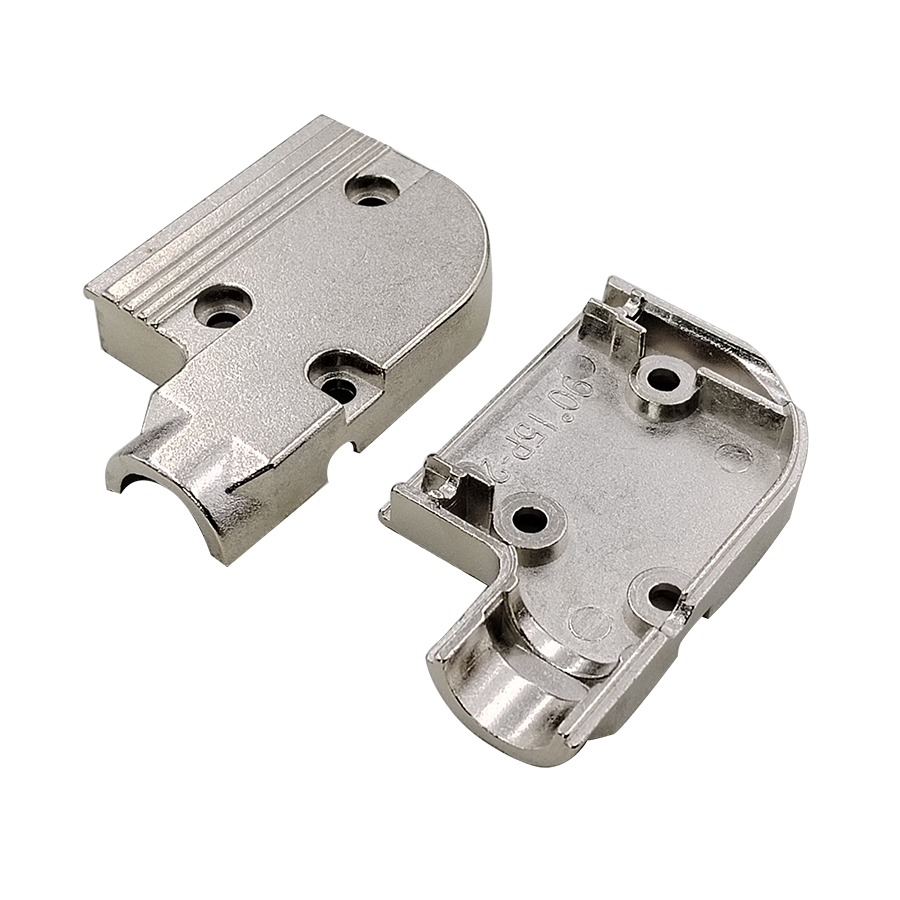

The housing is supplied as a two-piece assembly and is secured with 4-40UNC locking screws. It can be used with common D-SUB sizes such as DE-9, DB-15, DB-25, and DB-37. For customers looking for a suitable d sub housing, this right-angle format gives more freedom when planning cable routes and connector positions.
Zinc Alloy Shell for 360° EMI Shielding
Made from die-cast zinc alloy with a nickel-plated surface, the metal shell provides a solid outer layer around the D-SUB connection. The conductive metal construction helps create 360° electromagnetic shielding, making it a practical choice for cables carrying signals in environments where electrical interference needs to be controlled. The nickel finish also helps the shell handle everyday wear and corrosion.
The metal hood works as a protective outer housing rather than simply covering the connector. Its structure surrounds the cable connection area and gives the plug extra mechanical protection during installation and use. For projects that require a D SUB shielding shell, this construction combines cable routing, connector protection, and EMI shielding in one compact part.
Strain Relief for a Firmer Cable Connection
Cable movement is often where a connector assembly starts to suffer. This 90 degree D-SUB backshell includes a rubber cable sleeve that helps hold the cable at the exit point and reduces direct pulling on the internal connection. The two-piece shell closes around the assembly, while the locking screws keep the housing firmly in place.
Different cables do not always have the same outer diameter, so the package includes rubber rings, nuts, and long screws for assembly adjustment. This makes the D Sub Connector Housing easier to match with different cable sizes. The hood can be used with DE-9, DB-15, DB-25, and DB-37 D-SUB assemblies, making it suitable for RS232, VGA, industrial serial, and other interface applications.
Why Choose PANDI
For the Right Angle D SUB Shielded Metal Hood, PANDI pays attention to the parts that affect actual installation: the 90° cable direction, metal shielding contact, screw fastening, and cable strain relief. Rather than treating the hood as a simple outer cover, we consider how it will fit around the connector and cable once the assembly is installed inside real equipment.
| Type | Pins | Application |
| DE-9 (DB9) | 9-pin | RS232 serial |
| DB-15 (DB15) | 15-pin (dual row) | VGA |
| DB-25 | 25-pin | Parallel port |
| DB-37 | 37-pin | Industrial serial port |
PANDI has its own precision metal processing and connector manufacturing capabilities, allowing us to work with customers on housing dimensions, cable openings, plating requirements, and assembly details. If your project needs a d sub connector backshell for a specific D-SUB size or cable diameter, our engineering team can discuss the structure with you before production and help confirm the suitable configuration.
Need a right-angle D-SUB hood for a new cable assembly? Contact PANDI with your connector model, cable diameter, and installation requirements. We can help check the structure, arrange samples, and move the project into production.
