Product details

Test case-machine advantage

Plastic Crates are widely used as containers for material transfer. They are typically injection-molded from polyolefins. They can have internal dividers for bottles, ideal for shipping beer and beverages, or they can be undivided, making them suitable for various bagged packaging applications, such as food, medicine, electronics, and small items like tools. Printing equipment used for plastic crates includes crate pad printing machine, crate screen printeing machine, crate hot stamping machine, and crate heat transfer machine, with hot stamping machines being the most widely used. Hot stamping machines can create metallic features without being restricted by the frame's external reinforcement ribs, allowing them to reach deep into the narrow spaces of the frame.

Pneumatic crate hot stamping machine offer the following features:

Stable power: A pneumatic cylinder is used to raise and lower the hot stamping head, ensuring stable operation and easy adjustment. Adjusting the air pressure allows for controlled hot stamping pressure, adapting to the needs of plastic frames of varying materials and thicknesses.

Controllable parameters: Hot stamping temperature and time are typically controlled by a microcomputer program, typically within a range of 0-299°C. These settings can be precisely tailored to the specific material characteristics of the plastic frame, ensuring optimal hot stamping results.

The workbench is adjustable: The workbench usually adopts a cantilever structure, which facilitates the placement and position adjustment of the plastic frame, making the hot stamping position more precise. 179

Workbench using a special cantilever structure, which will help to place different types of turnover box;
Table can be up and down, the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Table lifting screw adjustment, simple and convenient;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace

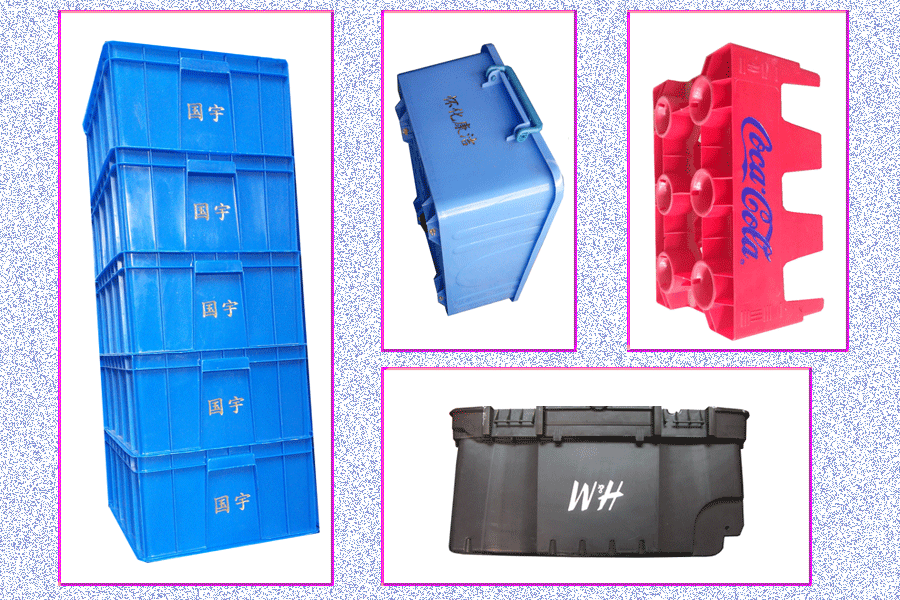

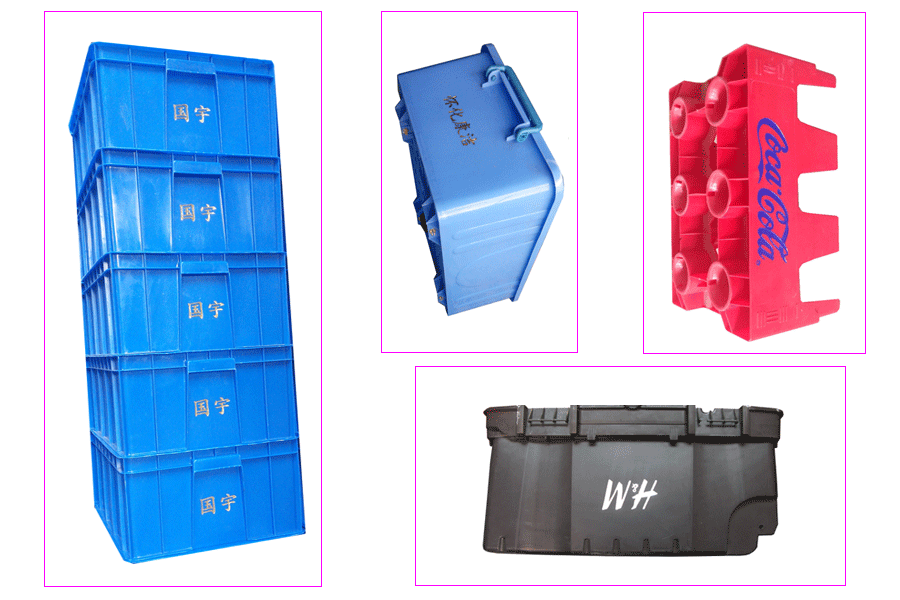

Samples

Machine description

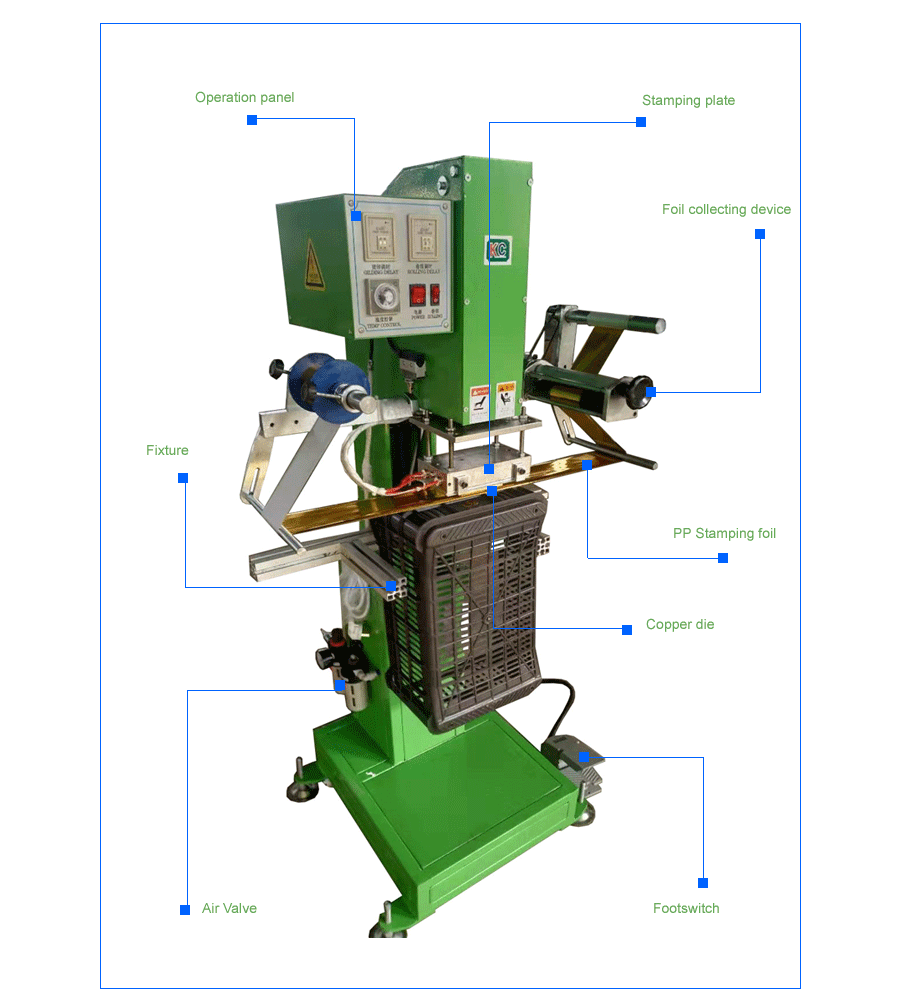

H-TC1520TBC Pneumatic turnover crate hot stamping Machine//Structure
Working table	Contilever working table , size:200*300mm.
Stamping Head drive	Pneumatic drive
Foil collecting method	Motor-drive , Collecting time adjustable
Press adjustment	Up-down of working table
Temperature control	Heating tube heat up，Automatically temperature controlling, temperature free setting
Foil collecting	Motor drive, Automatically collecting
Stamping plate size	150*200mm.
H-TC1520TBC Pneumatic Crate hot stamping machine //Usage and characters
Guide	Stamping foil feed in automatic and automatically temperature controlling; Weight pressure ensure more big area stamping . Suitable for gilding Different Container , waste bin, PET film, House equipment Panel; Because of large pressure. widely used in the process of Gilding ,Bronzing , Impression, Embossing , Leather embossing etc; Full-steel structure ensure stabilization Bronzing action, Adjustable working table to make pressure between working table and object. Flat-object stamping machine with large-pressure, Suitable for stamping on wooden gift; Pneumatic drive, pressure large; Suitable for various pass container; All kinds of plastics box; Waste bin; Beer case; basket case.;	Trash Box waste bin gilt; Beverage, food, industrial turnover box gilt; Products of the gilt frame of mind; Gilt shell household appliances; File cabinets, file box gilt.
H-TC1520TBC Pneumatic crate hot stamping Machine //Parameter
Technical parameters	Hot plate area:150×200 mm Working table area:200 ×300mm Max printing pressure:2,000－4000 Kg Up and down distance:100mm Heat wattage:800W Foil in feed: Motor Drive Temperature adjustment:0-300oC .	110V-220VPower supply； 5-7Bar compress air
H.S.Code	8443198000	CE approval
