Introduction 021

Plastic products with a diameter of less than 20mm, such as pen holders, cosmetic pencils, and lipstick tubes, can use semi-automatic hot stamping machine and heat transfer machine , or full automatic hot stamping machine and automatic heat transfer machine. Most users will use automatic hot stamping machine and automatic heat transfer machine to decorate their products.

There are various structures of automatic hot stamping machine and automatic thermal transfer machine on the market, among which the hot foil stamping machines with vertical turntable are mostly, because the vertical turntable can transport products continuously, which is more efficient. It uses a feeding trough to store products, and then the products are arranged in a certain order and transported to the hot stamping position. Some products need to be adjusted in direction, and an automatic U-turn device can also be installed. The product is conveyed to the hot stamping station or heat transfer station. Hot stamping generally uses hot stamping foil and anodized aluminum, and thermal transfer machine generally uses thermal transfer film. Products that have completed hot stamping and thermal transfer printing will continue to run to the unloading position.
The automatic bronzing machine and heat transfer machine for pen holder, makeup pen, lipstick tube are small-sized machine types, in fact, it is a miniature automatic hot stamping machine and heat transfer machine specially designed for small diameter products in order to reduce costs machine, if your product diameter is larger, then you need a bigger machine, but they are similar in structure and have the same function.

Application-printed Samples

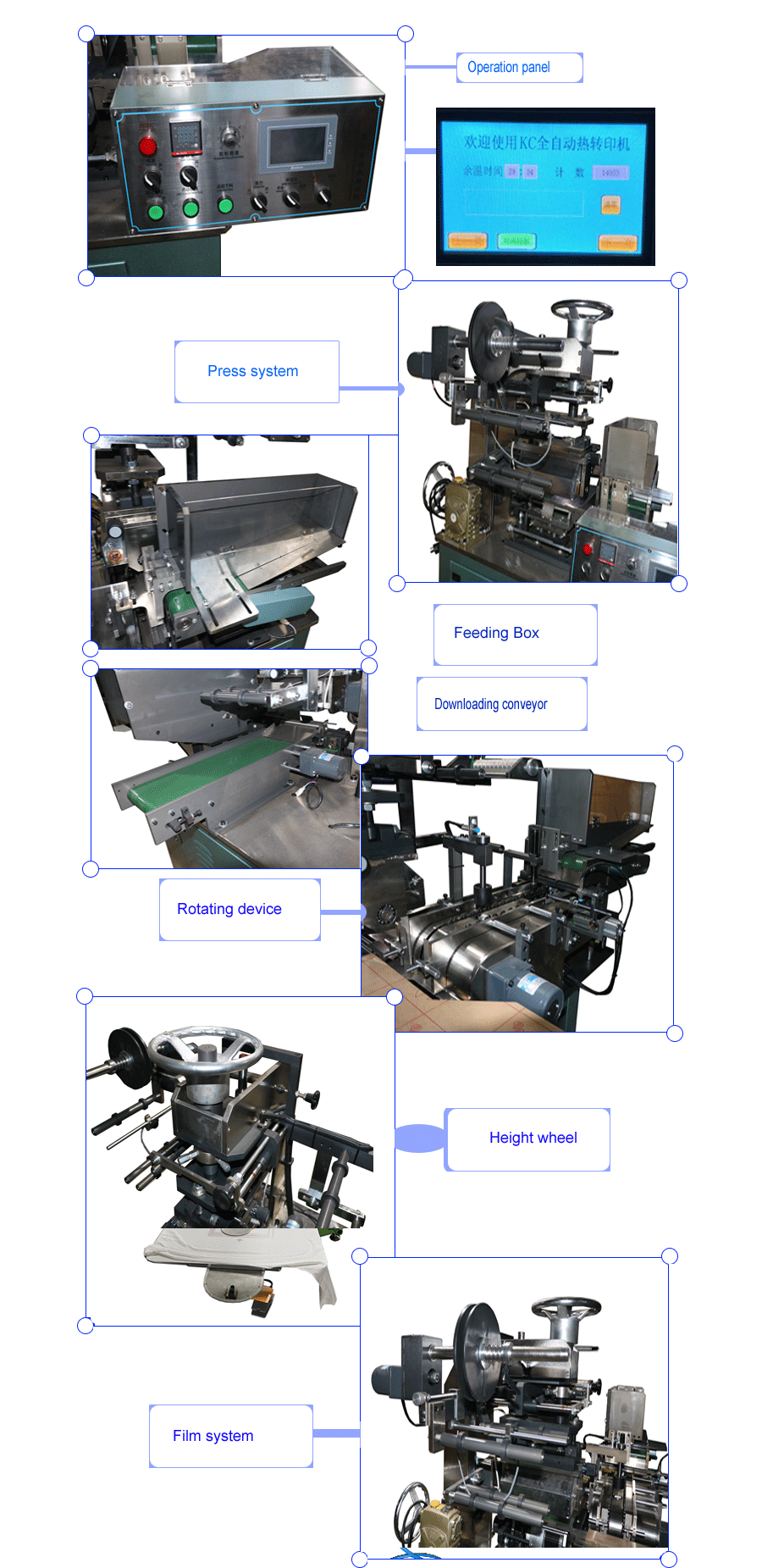

Details/structure:

The hopper

Used to store wooden pencils ready for thermal transfer. The hopper's width is adjustable to accommodate pencils of varying lengths. The feed rack consists of front and rear side panels, spaced the same length as the pencil itself. A pencil drop slot is located between the side panels, accommodating multiple pencils. The base is tilted downward toward the drop slot, allowing pencils to roll down easily. The notch at the bottom of the drop slot serves as the pencil outlet, where a push plate is located and driven by a drive mechanism.

The loading rod

The loading rod is a push rod mounted on a crank mechanism that pushes the pencil onto the fixture.

The thermal transfer mechanism

The thermal transfer mechanism consists of a heated, rotating silicone rubber roller, which is driven by a motor to raise and lower it. When a pencil enters the fixture, the silicone roller descends into contact with the pencil and rotates relative to it. Heat and pressure transfer the thermal transfer film to the pencil's surface.

The thermal transfer film transport and winding mechanism

Located on the frames on either side of the thermal transfer rubber roller. The patterned film is placed on the winding rollers, with the ends sequentially wound around the transfer rollers and tension roller set, passing between the thermal transfer silicone roller head and the pencil holder. The film's positioning and transport is controlled by a photoelectric sensor. This sensor, installed near the film's transport path, senses the black dots between adjacent pattern groups on the film. This sensor, in conjunction with the control system, precisely controls the film's transport length and thermal transfer position, ensuring accurate transfer of the pattern to the pencil.

Description

Usage︰

In diameter, 20mm large and multi-color printed pen products, such as a ballpoint pen, pencil, marker, whiteboard pen, gel pen, pen, pencil, lipstick, medical syringes, bamboo chopsticks and other small-diameterheat transfer decoration of objects designed for fully automatic surface heat transfer machine. The high printing speed, print quality and stability. Automatic loading and unloading, saving labor intensity, and rocker transport mechanism running smoothly.

Technical Parameter︰

1.Object Diameter:φ6~φ20 mm

2.Object Length:55~160 mm

3.Printing Storke: 20~80 mm

4. Printing Speed: 3000 pcs/hr

5. Power: 220V 50/60Hz 5.5kw

Feeding motor:25W;

Mainly Motor:375W;

Roller Motor: 60W;

6.Weight: ≈550kg

7.Roller size: D125×150mm

8. Heater Wattage: 1KW.

Production Advantage

× Chain-type transmission organizations, transmission efficiency, stable operation;

× Can be adjusted depending on the length of the barrel of the width of the trough, and the width of the transmission chain;

× High-speed printing, the normal speed of up to 2500 / h, up to 4000 / h;

× Automatic Foil cellecting device, the length of the winding can be flexibly adjusted;

× Additional compressed air dust removal device can be dust in the pen before printing to a minimum;

× Can be adjusted according to different substrates with different temperature, automatic temperature control, to ensure a stable transfer;

× All-electric control, no compressed air;

× Automatic feeding and Laying-off;

× Running smooth and printing stroke, the speed is adjustable;

× Taiwan frequency converter to control the constant torque operation to ensure consistent printing results;

× Hot head height can be flexibly adjusted.

The Difference Between Hot foil Stamping and Thermal Transfer printing

In the plastic packaging decoration industry, hot foil stamping and thermal transfer play important roles. While they are closely related, they also have subtle differences. Hot stamping relies on metal foil to achieve a single or holographic metallic effect, while thermal transfer uses transfer film to reproduce full-color patterns.

Specific differences are as follows:

1. Transfer Media:

Hot stamping uses various colored metal foils, typically consisting of a polyester film base with a metal coating. Thermal transfer uses thermal transfer film (including a release layer, color layer, and adhesive layer), which can be pre-printed with full-color patterns.

2. Effects:

Hot stamping can only achieve single metallic colors such as gold and silver, or special textures such as matte and laser, but cannot produce multi-color or gradient effects. Thermal transfer supports full color, gradients, and photo-quality patterns, with high color reproduction and the ability to reproduce complex graphics. 3. Process Focus:

Hot stamping: Using high temperature and high pressure, the metal layer of the foil is peeled off and transferred to the substrate, creating a metallic texture. Thermal transfer: Using high temperature, the color and adhesive layers of the transfer film are melted, resulting in a complete transfer to the substrate, with the emphasis on image transfer.

4. Positioning:

Hot stamping foil has no pattern restrictions, requiring only a rough length limit for transport and no positioning requirements. Thermal transfer film, on the other hand, has an independent pattern integrity and requires positioning during transport. This requires a relative position relative to the product, thus requiring sensor control.
