Machine description

             This High-Pressure Pneumatic Hot Foil Stamping Machine is specially designed for demanding foil transfer applications that require high and stable stamping pressure. By combining a lever-type pressure amplification mechanism with pneumatic actuation, the machine generates enhanced stamping force while maintaining consistent pressure throughout the hot stamping cycle. This Booster-Type Pneumatic Hot Stamping Machine provides reliable foil transfer and strong adhesion for a wide range of challenging substrates.   As a Multi-Purpose Flatbed Hot Stamping Machine, it is suitable for hot foil stamping on plastic products, clock dials, large-format workpieces, paper, leather, and other flat or relatively large surfaces. The machine features a precision-machined forged steel structure that provides excellent flatness, rigidity, and long-term stability. An integrated pressure adjustment system allows the operator to fine-tune the stamping force according to different materials, foil types, and product requirements, helping maintain consistent stamping quality in industrial production.  With its combination of high-pressure pneumatic drive, pressure amplification, precision flatbed construction, and flexible application capability, this machine is an effective solution for manufacturers looking for a reliable Pneumatic Hot Foil Stamping Machine for demanding production environments.

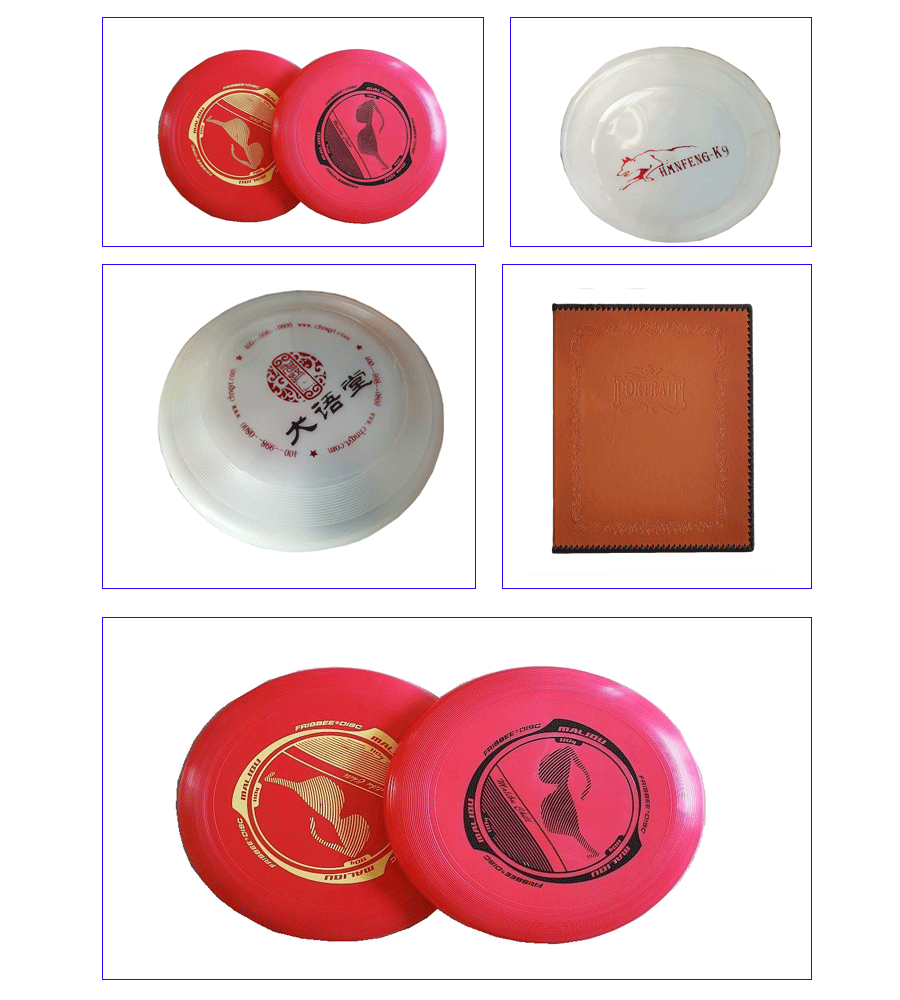

Application-Printed Samples

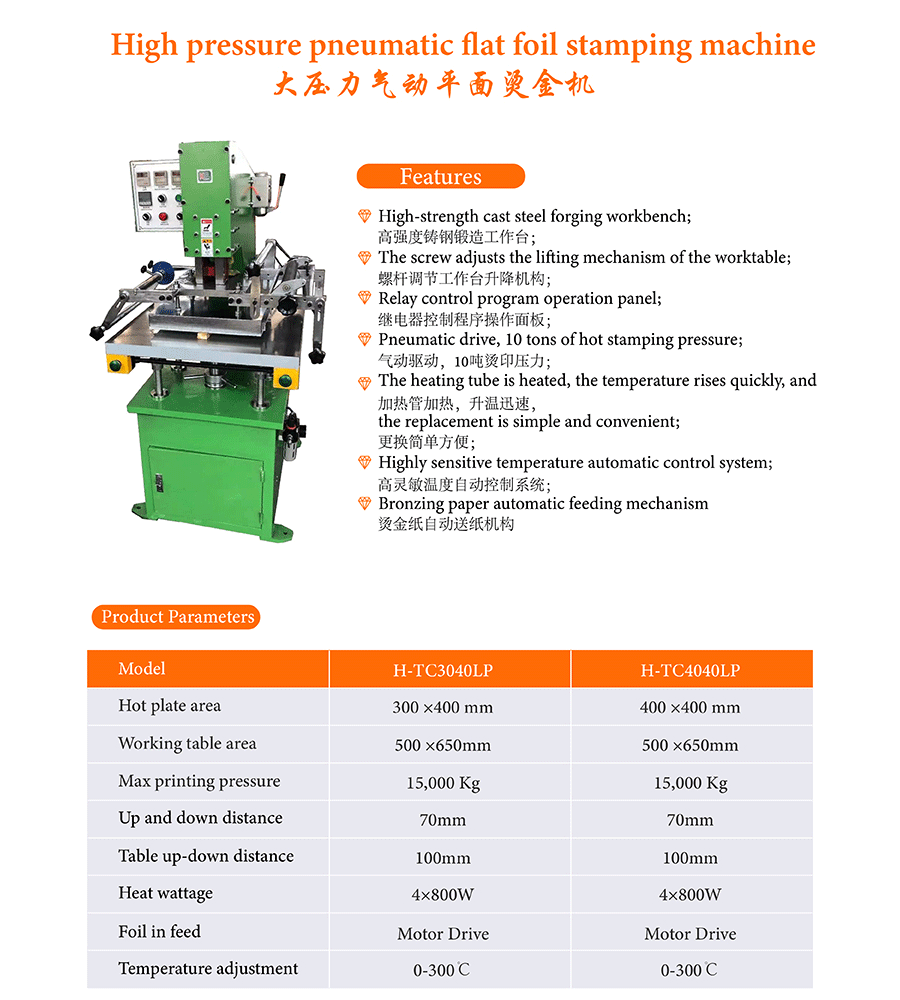

Data

Catalogue

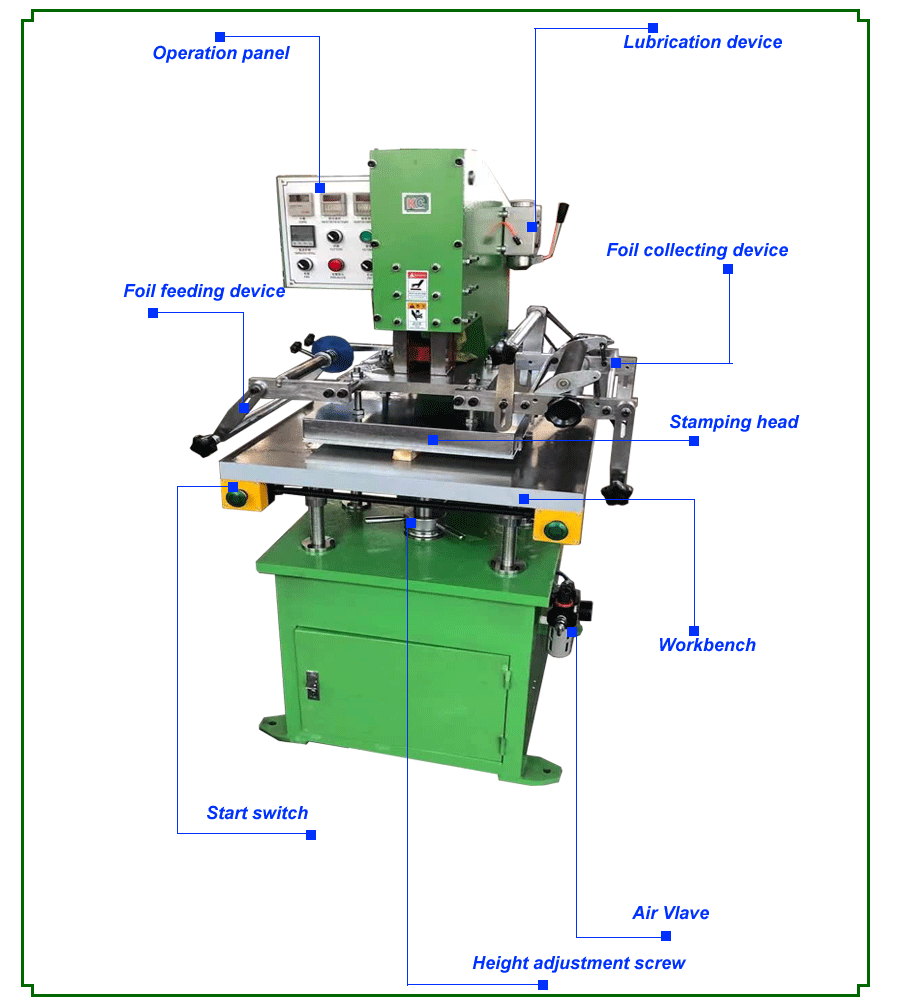

Hot foil stamping Machine// Structure and advantage

• High-strength forged cast-steel worktable provides excellent flatness, rigidity, and long-term dimensional stability;
• Threaded height-adjustment mechanism allows the worktable height to be easily adjusted according to product dimensions, providing sufficient working clearance for different product heights;
• Relay-based control system provides reliable machine operation, simple controls, and convenient maintenance;
• Two-hand push-button control activates the stamping head only when both buttons are operated simultaneously, helping keep the operator’s hands away from the stamping area and improving operational safety;
• Pneumatic drive system with pressure amplification provides higher and more stable stamping pressure, improving foil transfer performance and stamping consistency;
• Heating tube system provides rapid heating, while the heating elements are easy to replace and maintain;
• Removable heating plate facilitates convenient installation, removal, and replacement of hot stamping dies;
• Adjustable parallelism between the heating plate and worktable allows pressure distribution to be fine-tuned according to different product sizes and stamping areas;
• Automatic temperature control system allows the stamping temperature to be set according to different product requirements, with temperature control accuracy of approximately ±5°C;
• Adjustable stamping time and foil feeding time can be set according to different hot foil stamping processes and technical requirements;
• Automatic foil feeding system provides consistent foil delivery, with the feeding length adjustable according to the size and layout of the stamping area.

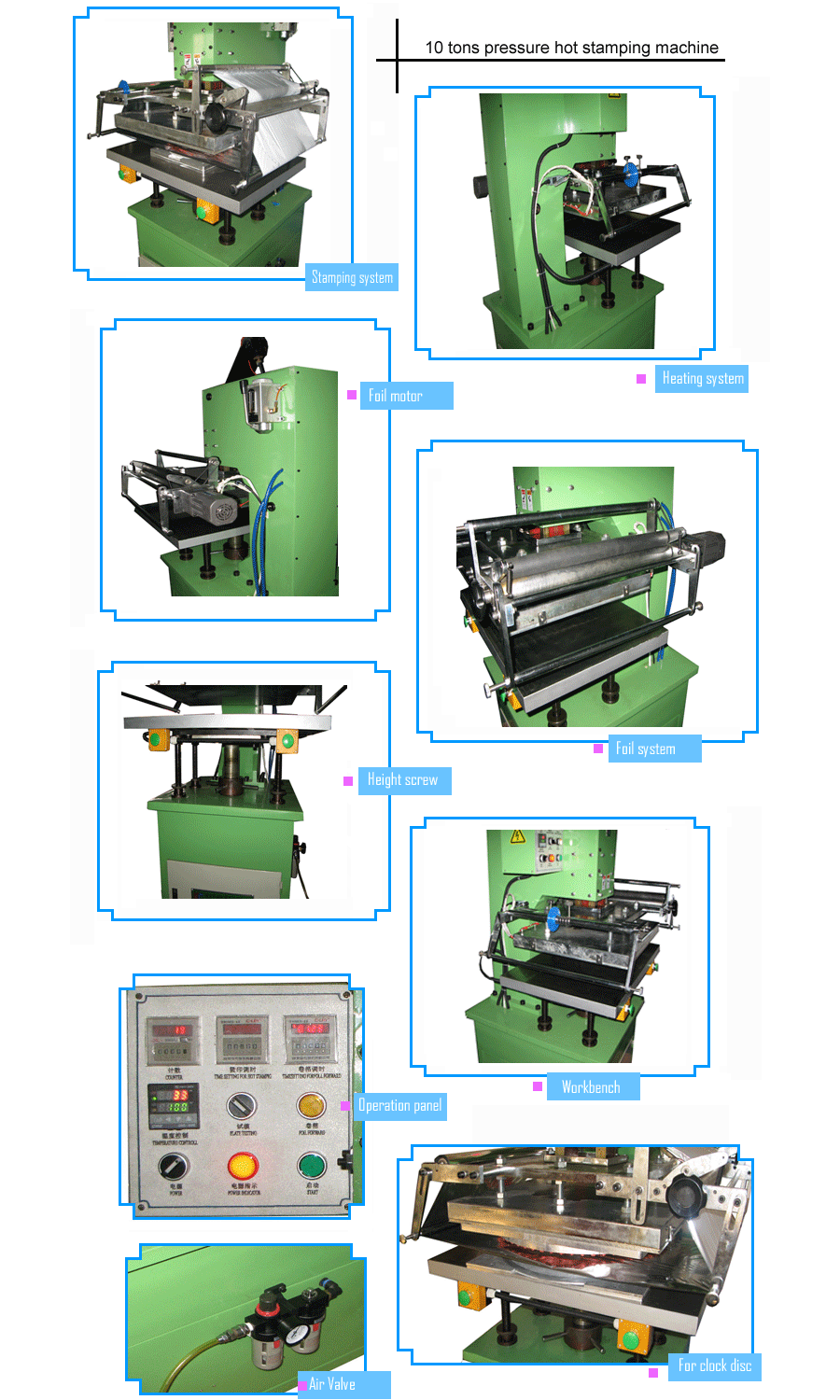

Details description
