STB205hydraulic breaker

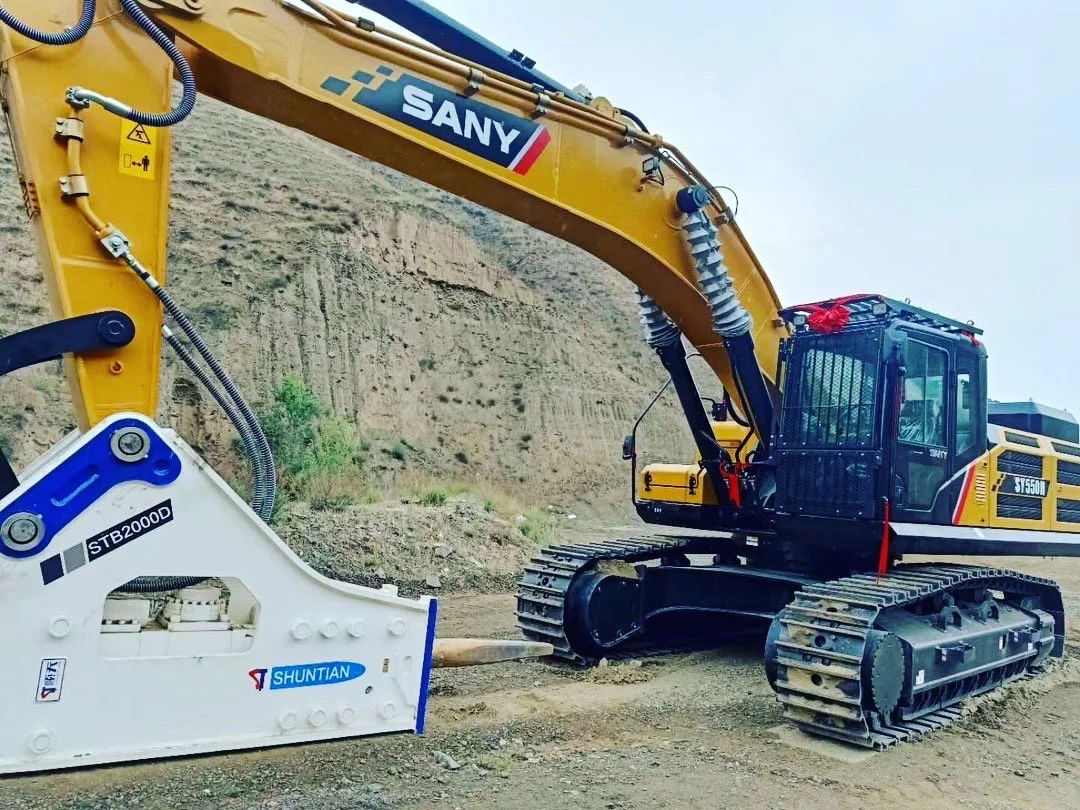

Hydraulic breaker (also called hydraulic hammer) is a type of construction machinery that is mounted on excavators, backhoes, skid steers, mini-excavators, and stationary plants. Driven by hydraulic power it breaks rocks into smaller sizes or demolishes concrete structures into manageable pieces.

According to the difference of the hydraulic breaker structure, we mainly categorize it as side type breaker (side mounted breaker), top type breaker (top mounted breaker) and silence type breaker (box type).

In the demolition application, the side type breaker (side mounted hydraulic breaker) is more flexible to reach different condition project like road demolition and construction breaking.

Based on different application and purpose, you could select different mounted type hydraulic hammer to meet with demands. Please feel free to contact with us to get more information about hydraulic breakers.

Our breaker features:
1. Great impact, improve production efficiency and reduce investment costs.
2. Independent research and development of the internal core hydraulic system, changing the size ratio of the cylinder block and the piston.
3. High quality and high stability:
(1) The raw materials are made of high-quality forged steel. Cylinder block and piston are cryogenically treated after heat treatment, which greatly improves the strength and wear resistance of cylinder block and piston, and reduces the probability of strain.
⑵, the use of new machining equipment and advanced processing technology to ensure the quality of parts. Cylinder block grinding adopts CNC vertical grinding machine to ensure the coaxiality of the cylinder block and reduce the probability of strain during the working process.
⑶. All accessories are made of the best materials, and the reversing valve is imported, which greatly reduces the maintenance cost in the later period and improves the work efficiency and stability.
⑷, the main components through the three-coordinate test, all qualified before the host assembly.
After the assembly is completed, the blowing experiment is carried out, and whether it is qualified or not can be strictly checked before leaving the factory.

Decription/Model			STB40	STB45	STB53	STB68	STB75	STB85	STB100	STB125	STB135	STB140	STB150	STB155	STB165	STB175
Operating Weight	Side Type	kg	101	113	175	267	368	505	776	1,364	1,487	1,737	2,150	2,503	3,096	3,735
	Top Type		96	110	223	296	404	647	865	1,447	1,575	1,920	2,478	2,544	2,728	4,015
	Box Type		129	148	206	337	425	697	865	1,239	1,497	1,756	1,960	2,350	2,780	3,685
Operating Pressure		bar/psi	90-120	90-120	90-120	110-140	120-150	130-160	150-170	150-170	160-180	160-180	160-180	160-180	160-180	160-190
Setting Pressure		bar/psi	150	150	150	170	180	190	210	210	210	220	230	230	230	230
Required oil flow		l/min	15-30	20-40	20-50	40-70	50-90	60-100	80-110	90-120	100-150	120-180	130-190	180-240	200-260	210-290
Working Tool	Diameter	mm	40	45	53	68	75	85	100	125	135	140	150	155	165	175
	Weight	kg	7	8	9	16	21	30	55	103	127	134	170	183	220	260
Impact Rate		bpm	800-1100	700-1200	600-1100	500-900	400-800	400-800	350-700	350-650	350-600	350-500	300-450	350-450	250-400	200-350
Hydraulic Hose		inch	1/2	1/2	1/2	1/2	1/2	3/4	3/4	1	1	1	1 1/4	1 1/4	1 1/4	1 1/4
Suitable Excavator		tons	0.8~2.5	1.2~3	2.5~4.5	4 ~ 7	6 ~ 9	7~14	11 ~ 15	15-18	18 ~ 21	20 ~ 26	25 ~ 28	28 ~ 35	30 ~ 40	40 ~ 55
