500-800mm HDPE pipe extrusion line for sewer appli

Large Diameter Polyethylene PE Pipe Production Line.
Description HDPE pipe production line:

The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new
style grooves. All of these offer good plastification and mixing effect.
Special design of basket die head of for PE large diameter pipe with thick wall offer lower melting temperature,
good mixing, lower pressure of cavity, and stable production.
Feature and advantage of HDPE  pipe making machine:
(1) This production line aim at the characteristic of the PPR pipes.
(2) It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system.
(3) It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX, PB pipe.

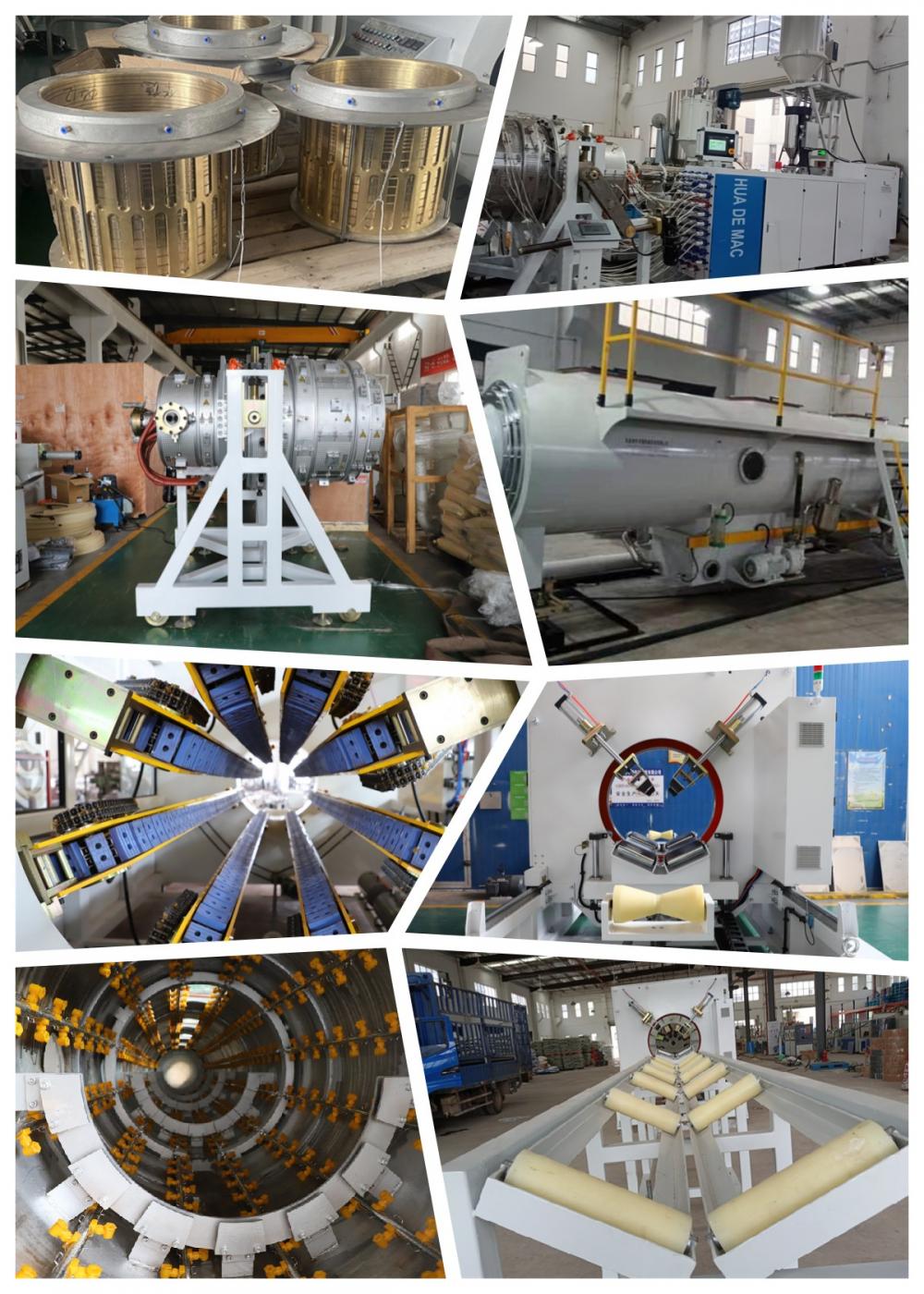

Process Flow of HDPE  pipe making machine:
1),   Raw material + master batches
2),   Mixing
3),   Vacuum feeding
4),   Material dryness
5),   Single screw extruder
6),   Color string extruder
7),   Spiral mould
8),   Calibrator
9),   Spray vacuum calibration tank
10), Spray cooling water tank
11),  Spray-code printer
12),  Caterpillar haul-off
13),  No-dust cutter
14),  Pipe stacking
