Product details

2-100p 1.00 Female Header 108° Dip Type For Board to Board PCB

Double row, straight mounting angle, female pin header, electric component, easy to install.This pin header is an good connector for the PCB board and intergrated circuit, used widely in the computer and breadboard.

Overview:

Board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection. Because different products require different specifications, there are also a variety of sizes.

Y-shaped terminal: it has two contacts with the pin, but the terminal is 0.64mm thick. The pin can be lengthened and the rubber core can be overlaid to realize the secondary heightening of the pin.U-shaped terminal: There are 3 contact points with the row pin, the contact point is on the top of the product, the contact is stable to avoid transient break in the process of signal transmission. U-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is on the top of the product, the contact is stable, avoid transient during signal transmission, prevent tin from leaking into the terminal.

O-type terminal: there are three contact points with the row pin, the contact point is in the center of the product, the contact is stable to prevent transient interruption during signal transmission.

O-type leakproof tin terminal: there are 3 contact points with the pin, the contact point is in the center of the product, the contact is stable to prevent the signal transmission transient, prevent tin leakage into the terminal.

Feature:

Product model: 1.00mm Pitch Female Header double row 180°

No.of circuits: 2*2P ~ 2*50P

Material:

Contact material: phosphor copper

Terminal plating: gold-plated nickel bottom

Plastic material: PA6T,UL94V-0

Plastic color: black

Electrical characteristics

Rated current: 1.0AMP

Contact resistance: 20 m Ω Max

Insulation resistance: 1000 m Ω Min @ 500 v DC

Resistant voltage: 500V AC/1min

Mechanical properties

Operating temperature: -40°C ~ +105°C

Welding temperature: 260+/-5℃, time: 5+/-0.5 SEC

Temperature: 230+/-5℃, time: 3+/-0.5 SEC

1.27mm Pitch Female Header connector.jpg

Application:

Board to board connectors or Signal application（Electronic Components, Accessories & Telecommunications）:

-Electronic device

-Home appliances

-Electrical instruments

-Automotive: Car navigation LCD panel and so on.

-Lighting industry

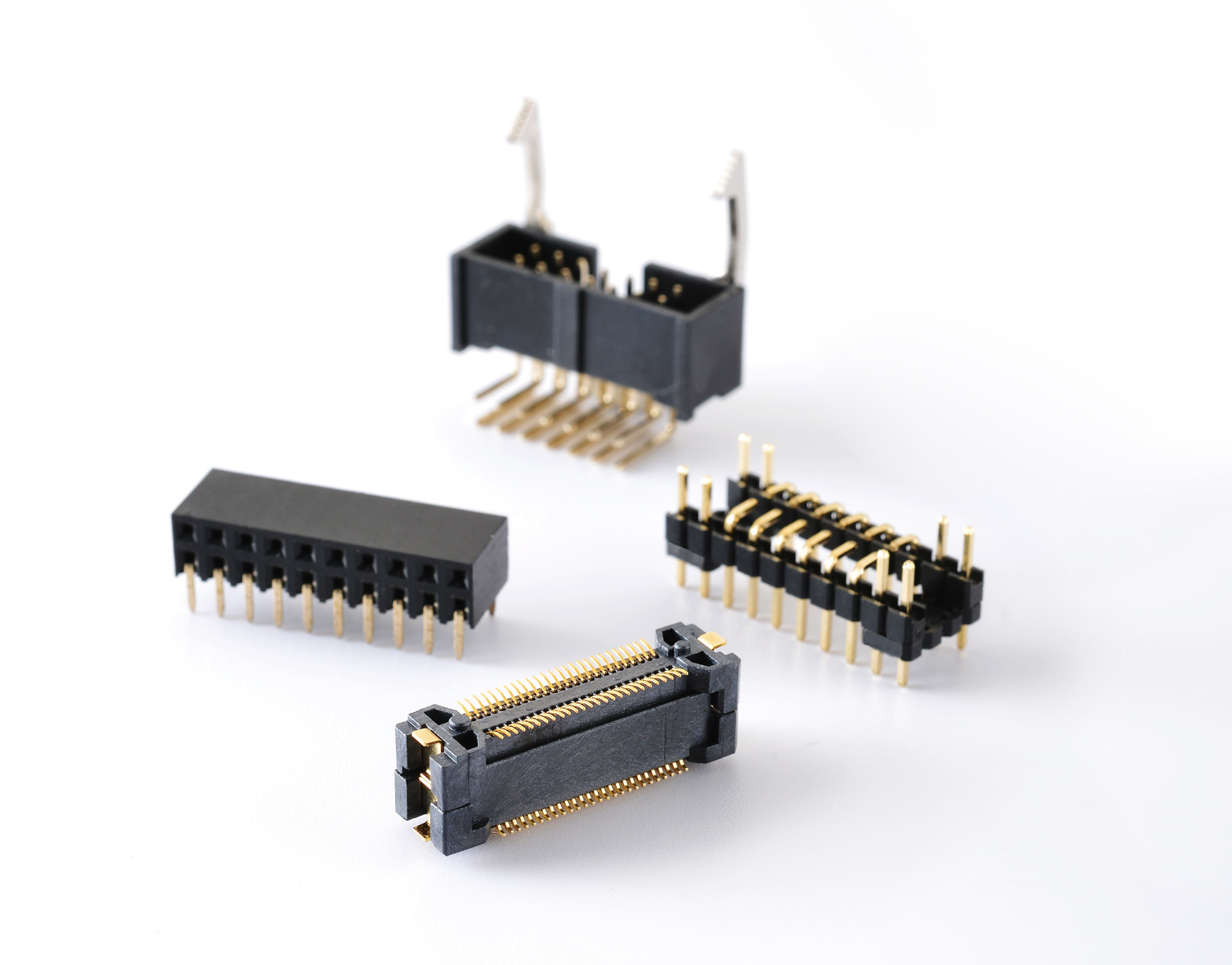

2.54mm pitch pin header- three rows circuit board connector sample

3279538f-dc77-4329-ad7d-b3dc4ee6c823.__CR0,0,300,300_PT0_SX300_V1___

The female connector is widely used in PCB circuit boards in electronics, electrical appliances and meters.

The function of the female connector is to function as a bridge between the blocked or isolated circuits in the circuit, and is responsible for the task of current or signal transmission. Usually used in conjunction with the motherboard to form a board-to-board connection; or used in conjunction with the electronic harness end to form a board-to-wire connection; it can also be used independently for board-to-board connection.

Company Information:

About Us

Founded in 2008, Yuanyue Electronics Co.,Ltd is dedicated to forging a world-leading brand of customized connector and cable manufacturer. Our factory is located in Dongguan, China --- world-famous manufacturing center, and owns branch office in Taiwan and Hong Kong. We are not merely specialized in producing board-to-board, wire-to-board, wire-to-wire Connectors and Cable Assemblies, but a solution provider of customized connectors and cables as well.

Quality as survival, Reputation as development

YYE has passed ISO9001 and IATF16949 quality system certification, established a sound quality control system. Our company sticks to using imported and high-quality raw materials. Our rigorous quality team ensures that all products have passed ROHS, REACH, UL and Halogen-free certifications, and products have also obtained a number of national utility model patents.

Continuous investment in technology, productivity and efficiency

Since established,we keep increasing investment in R&D , automatic producing equipments and high precise imported testing equipments every year.Now we hold plastic mold and hardware mould more than 500 sets,automatic equipments accounts for 46% of the total equipments.

Quick Responsiveness and coordination abilities

Each client has a special project leader and a professional engineer following your items and instant feedback.we even independently developed a set of automatic equipment for our customers, assisting customers in reducing costs and decreasing lead-time.

YYe Company History

Our product lines include a wide range of connectors, terminals and cable assemblies, which are widely used in communications, home appliances, medical, security, new energy, industrial control and other fields.

The main products include: OEM/ODM various cable assemblies, wire-to-board connectors, automotive connectors, board-to-board connectors, I/O connectors, customized connectors, etc.

The above 1.00mm pin header are only some of our connectors and accessories, if you don't find the parts you need, please feel free to send us an inquiry for more solutions.
