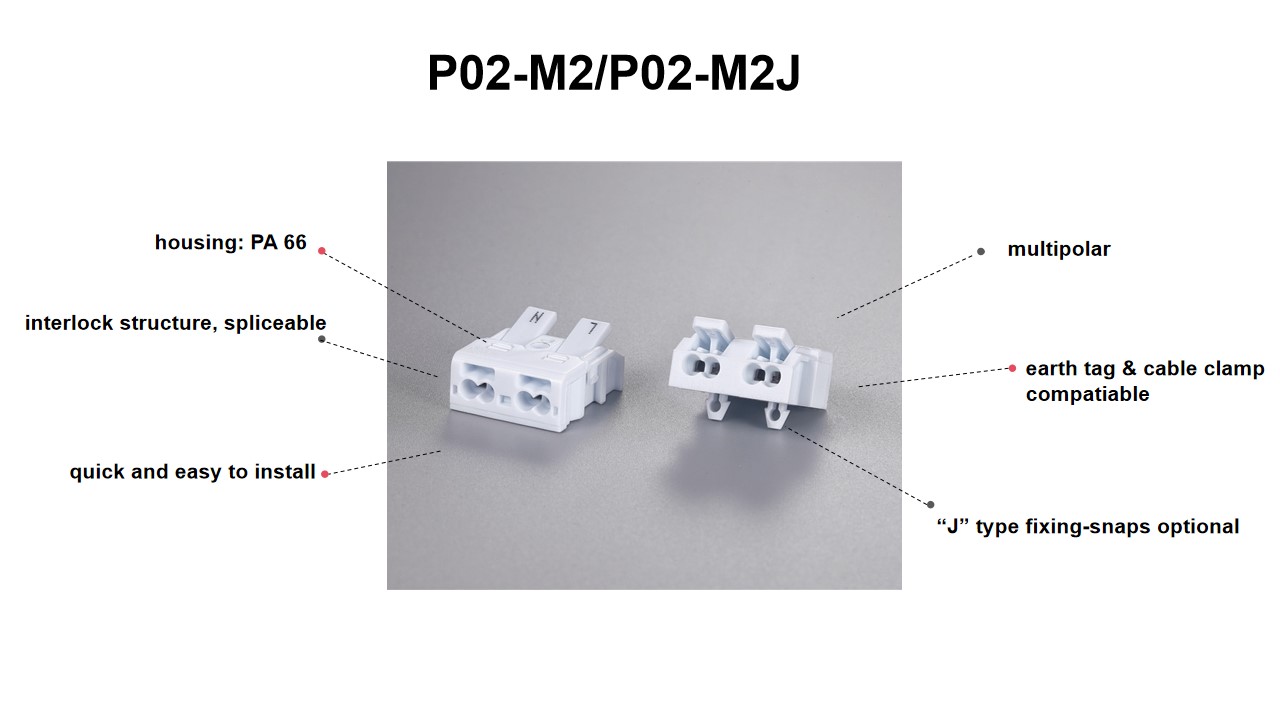

multipole connector
2 year ago
Materials:
housing: polyamide66(v2)
cover & button: polycarbonate(v2)
clamping unit: copper & stainless steel
Packing info:
150 pcs per bag, 10 bags per carton
carton size: 57×28.1×12.5 cm
net weight: 6kg
gross weight: 6.5kg
Specifications:
| Item No. | P02-M2 P02-M2J | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 450 | 300 | |
| Rated Current (A) | 17.5 | 9 | |
| Ambient Temperature | Polyamide 66 | T110 | 105℃ |
| Connection Data | |||
| Cross Section | IEC/EN | UL | |
| Installation side | Solid conductor | 0.5-2.5mm² | AWG 16-20 |
| Stranded conductor | 0.5-1.5mm² | ||
| Flexible conductor | - | ||
| Factory side | Solid conductor | 0.5-1.5mm² | AWG 16-20 |
| Stranded conductor | |||
| Flexible conductor | - | ||
| Strip length (mm) | 8-10 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 2*2 | ||
| Means of Fixing | |||
| screw fixed / fixing snap | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Compatible Products | |||
| Junction boxes | TB-01 | ||
| Packing Quantity (pcs/carton) | |||
| 1500 | |||
Drawings:
