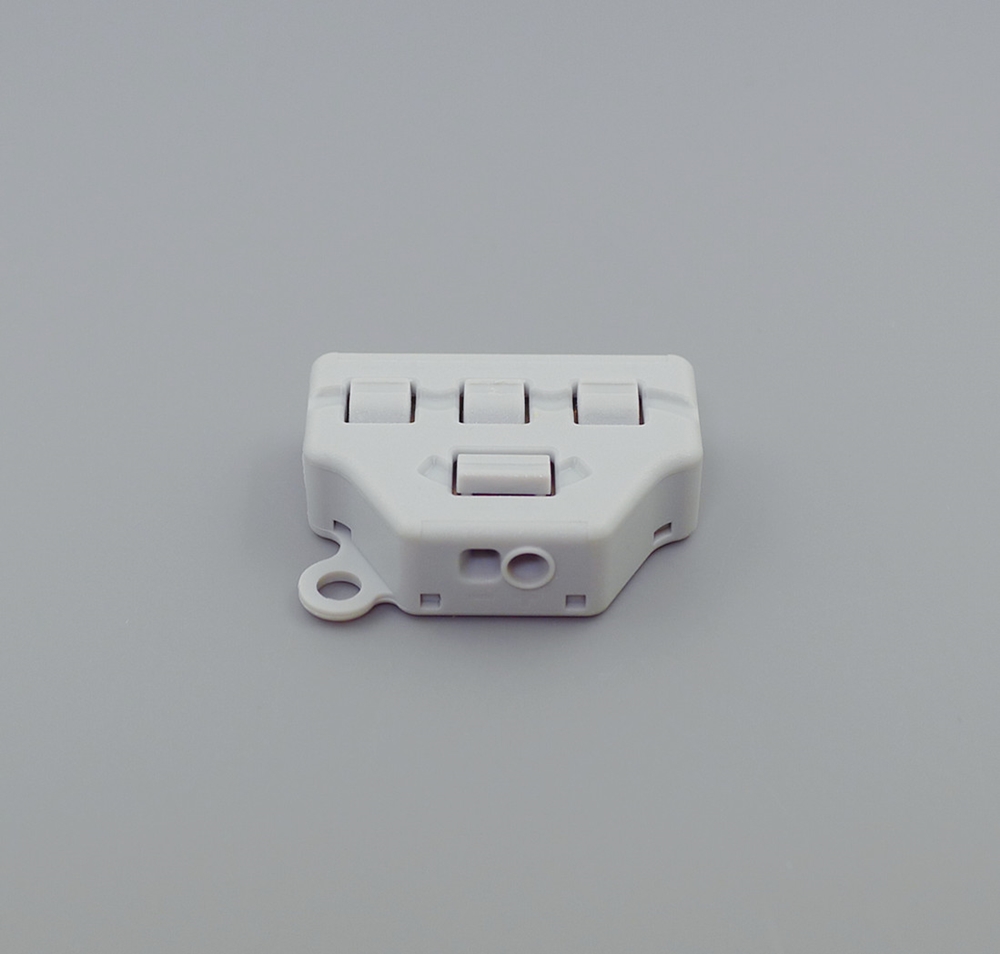

LED connector system terminals
2 year ago
Materials:
Housing: polyamide66(v2)
clamping unit: copper & stainless steel
Packing info:
100 pcs per bag, 10 bags per carton
carton size: 57X14.4X17.2 cm
net weight: 6kg
gross weight: 7kg

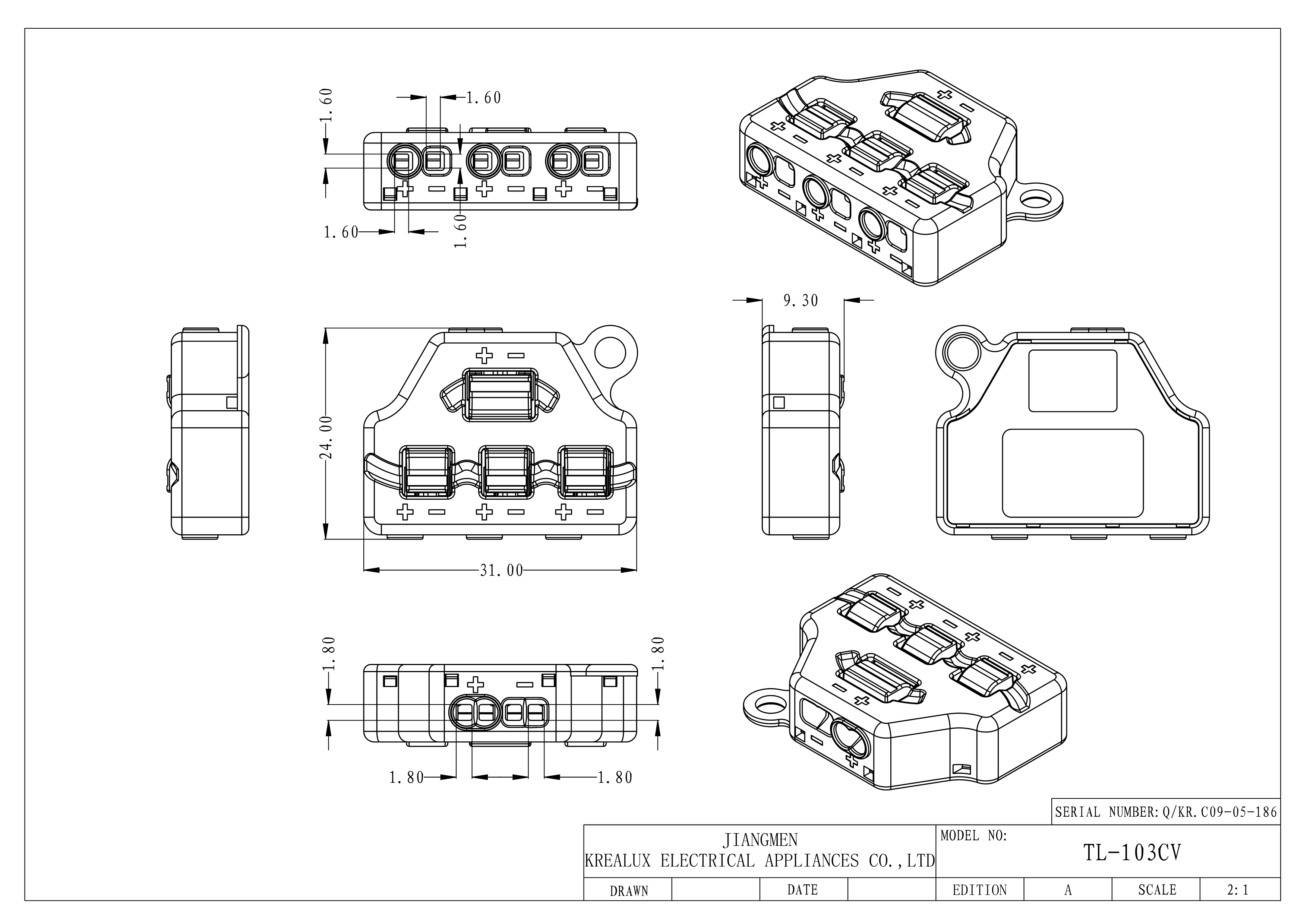

Dimensions
Specifications

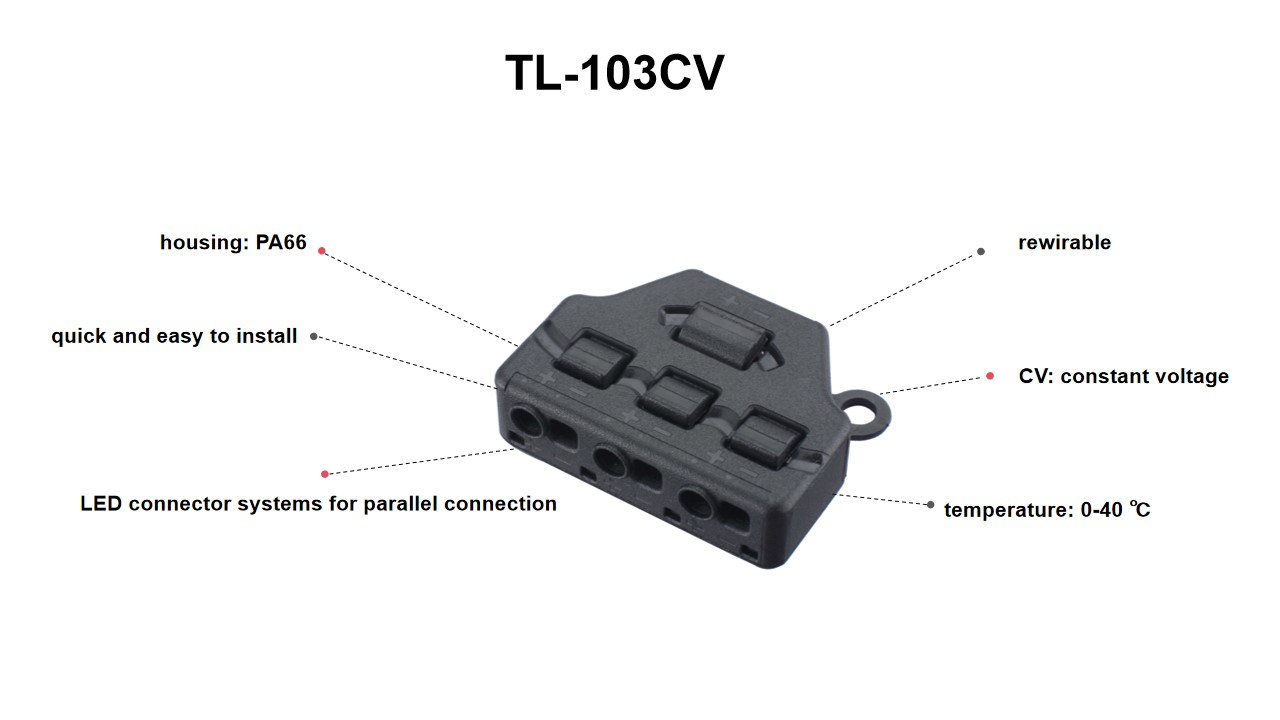

| Item No. | TL-103CV | ||
| Electrical Data | |||
| IEC/EN | |||
| Rated Voltage | 0-42V DC | ||
| Rated Current (A) | Input | 9 | |
| Output | 1.5 | ||
| Ambient Temperature | Polyamide 66 | 0~40℃ | |
| Connection Data | |||
| Wiring Capacity | IEC/EN | ||
| Input | Rigid Conductor | 0.34-0.75mm² | |
| Tin-bonded Flexible Conductor | 0.34-0.75mm² | ||
| Flexible Conductor with Copper Clamp | 0.5-0.75mm² | ||
| Output | Rigid Conductor | 0.2-0.5mm² | |
| Tin-bonded Flexible Conductor | 0.2-0.5mm² | ||
| Flexible Conductor with Copper Clamp | 0.5mm² | ||
| Strip length (mm) | 8 | ||
| Means of connection | push-in | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 3 | ||
| Means of Fixing | screw fixed | ||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Clamping Unit | brass, stainless steel | ||
| Packing Quantity (pcs/carton) | |||
| 1000 | |||
