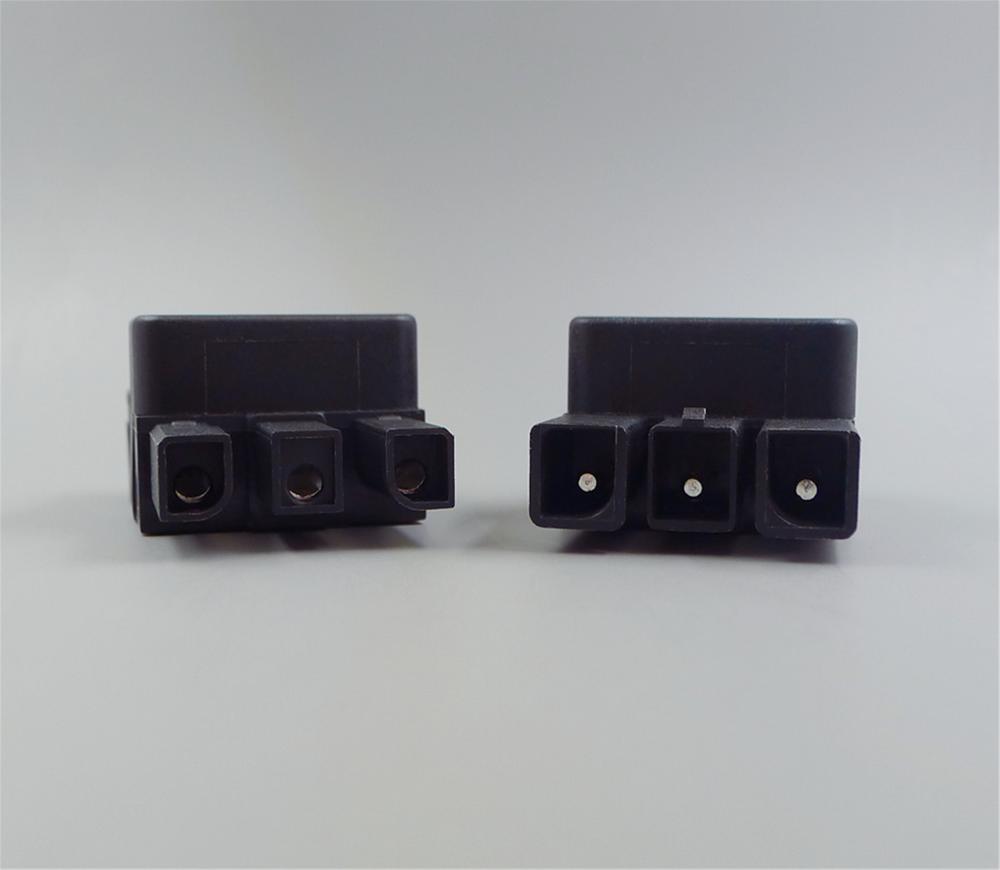

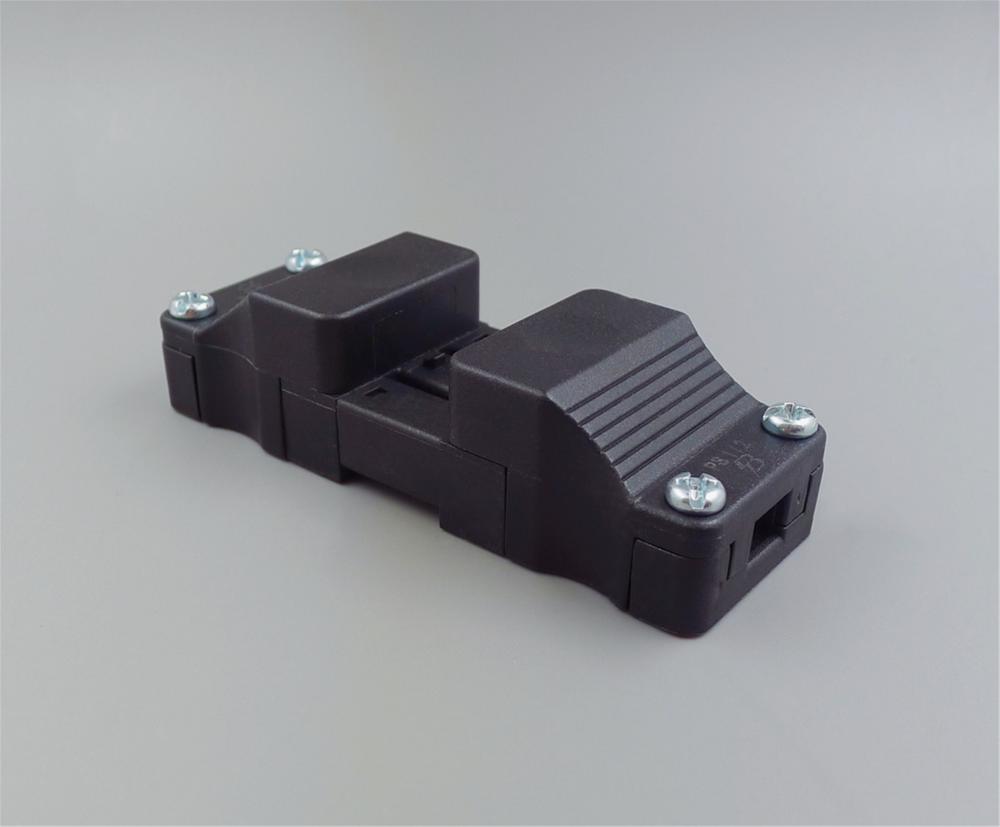

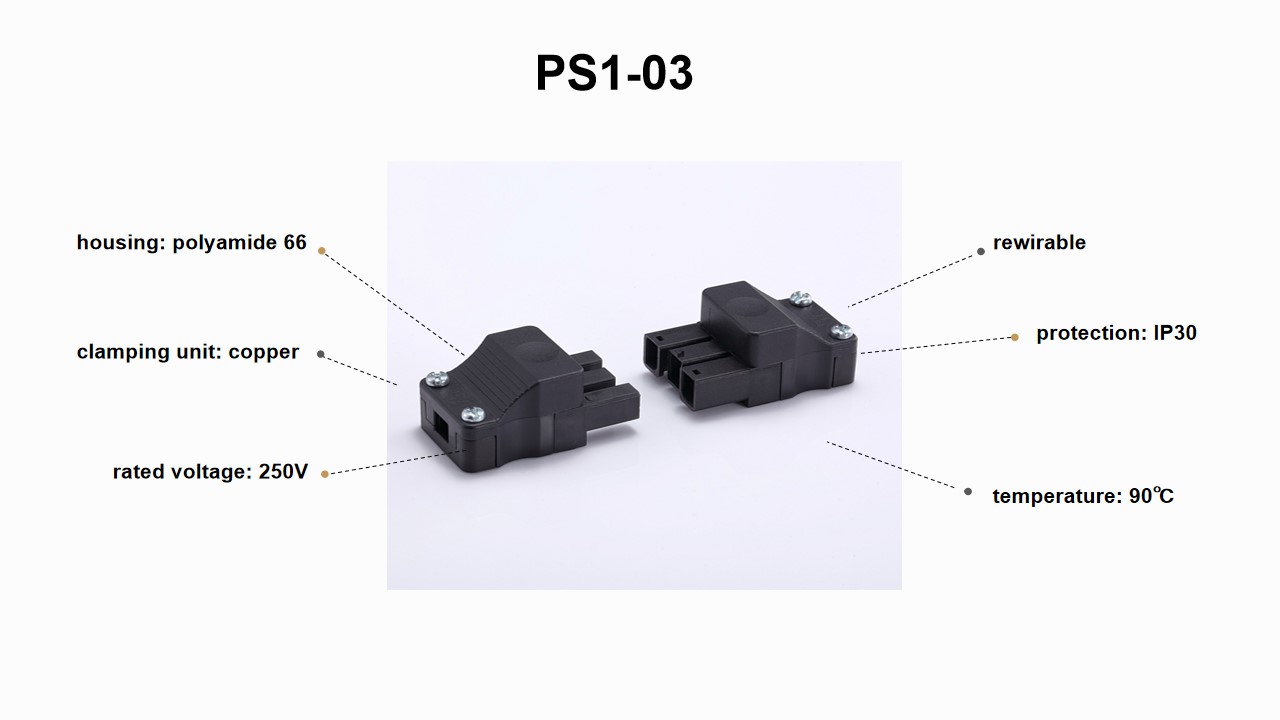

Presenting the BELEKS PS1-03, a rewireable pluggable connector that boasts IP30 protection for dependable operation across diverse environments. This high-quality barrier terminal connector features a sturdy design, enabling it to withstand rewiring tasks without compromising on safety standards. The IP30 rating effectively safeguards against small solid objects, enhancing the security of your electrical connections. Easy to install and maintain, the PS1-03 quick connector is ideally suited for applications that require frequent rewiring, such as industrial equipment, automotive systems, and consumer electronics. With its robust build and reliable protection, the BELEKS PS1-03 fast connection wire connector is an indispensable component for your electrical projects.

Connector specification:

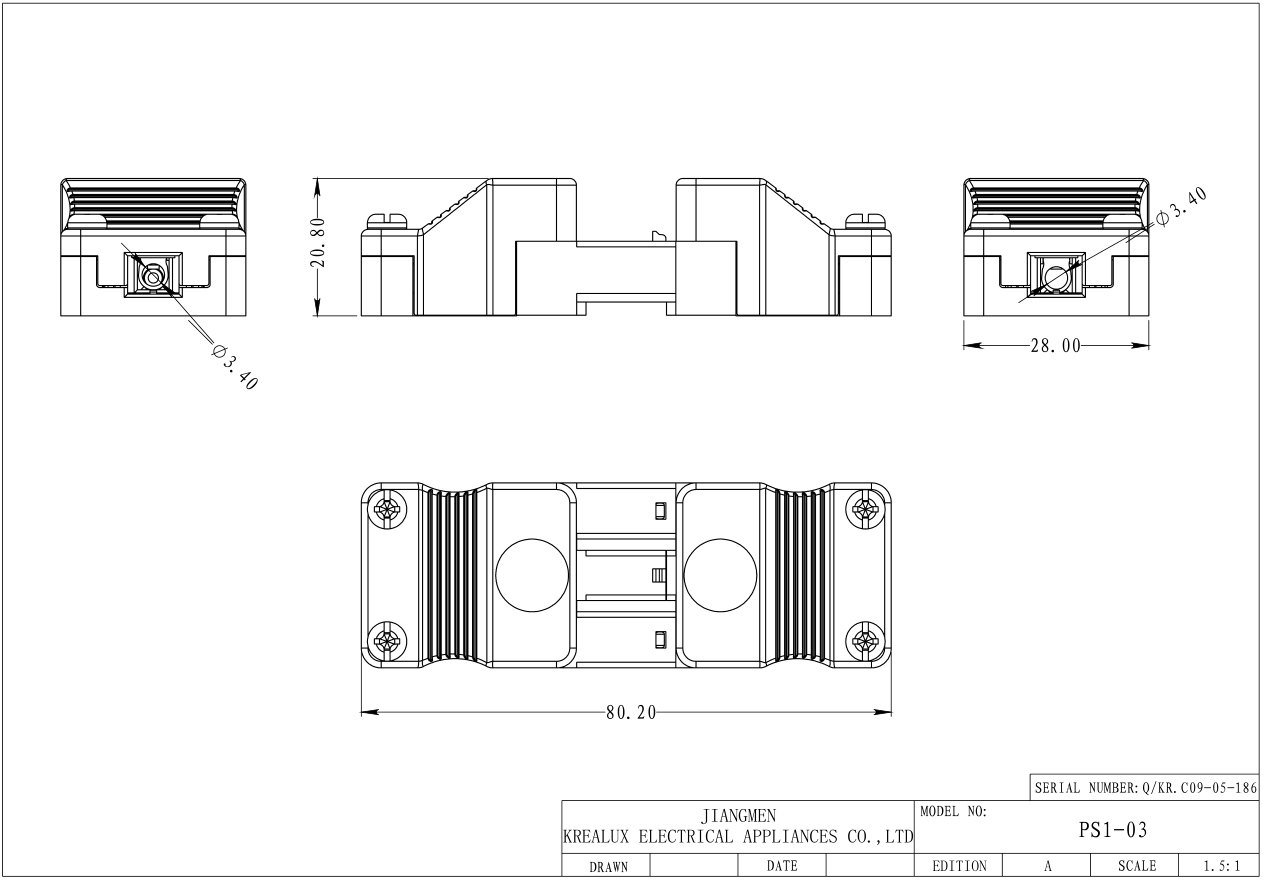

size of connector: 80.20mm×28.00mm×20.80mm

Annual Production:

40, 000, 000PCS/Year

Materials:

housing: polyamide66(V2)

clamping unit: copper/brass

Packing info:

500 pcs per carton

carton size: 62.5×40×22 cm

net weight: 15kg

gross weight: 16kg

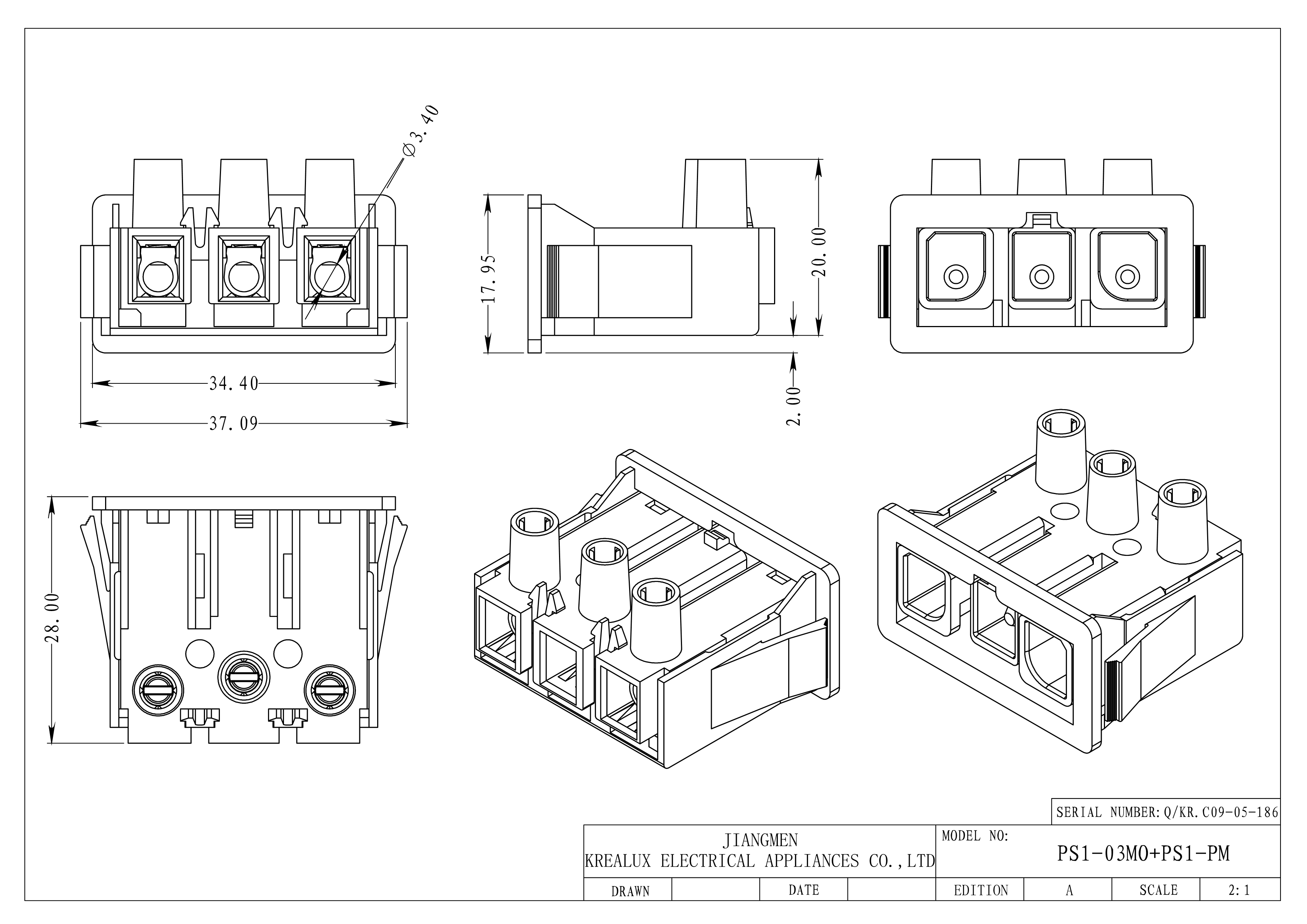

Dimensions

Specifications

Item No.		PS1-03
Electrical Data
		IEC/EN
Rated Voltage (V)		250
Rated Current (A)		16
Ambient Temperature	Polyamide 66	90℃

Connection Data
		IEC/EN
Cross Section	Solid conductor	0.75-1.5mm²
	Stranded conductor	0.75-1.5mm²
	Flexible conductor	0.75-1.5mm²
Strip length (mm)		7
Means of connection		screw fixed
Screw		M2.6
Rewirable		√
Number of terminals		multiway
Number of connection points		3
Protection Degree
IP30
Materials
Insulation Materials	Designation	Polyamide 66
	Flammability class	UL 94V-2
Packing Quantity (pcs/carton)
500
